Power-switching Compact General-purpose Relays LY2 Relay
US$ 4.5 - 5.3
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Nobel
Model Number:
LY2
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 Best Sells Latching Relay JQX-115F With 16A SPST.US$ 0.8 - 0.9MOQ: 1 Piece -
ST3P Time Relay,1-60s Delay TimeUS$ 3 - 3.6MOQ: 1 Piece
-
Best Quanlity 5 Pin JD1912 Auto Relay 12v 30aUS$ 0.5 - 0.6MOQ: 1 Piece
-
15A Miniature Heavy Duty Power Pcb 4117 Automotive RelayUS$ 0.5 - 0.6MOQ: 1 Piece
-
High Power Contact Load and Epoxy Protect Feature Magnetic Latching RelayUS$ 2.5 - 2.8MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Nobel
Model Number
LY2
Theory
Voltage Relay
Usage
General Purpose
Size
Miniature
Protect Feature
Epoxy
Contact Load
High Power

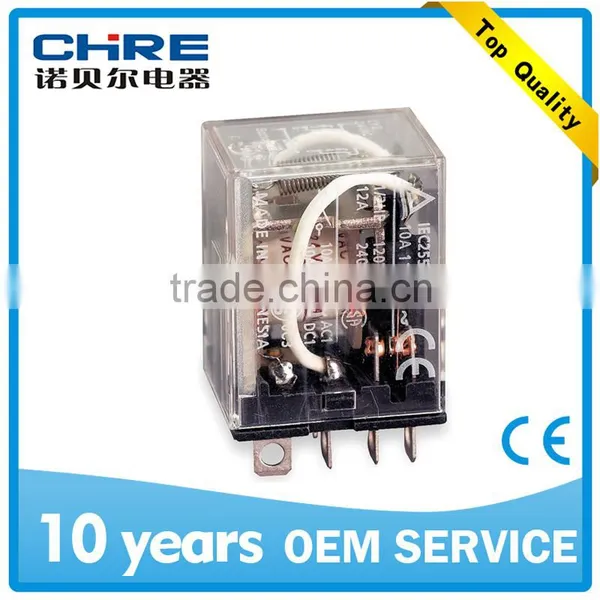

CHRE Power-switching Compact General-purpose Relays LY2 relay
Product Description
• Equipped with an arc barrier for arc interruption.
• Withstand voltages up to 2,000 V.
• New built-in diode and built-in CR circuit models have
joined the series.
• The lineup also includes models that are compliant
with the LR and VDE safety standards.
• Single-pole and double-pole models have AC4
ratings and DC2 ratings (operating coil ratings: 100/
110 VAC, 110/120 VAC, 200/220 VAC, 220/240 VAC,
and 100/110 VDC).
• Three-pole and four-pole models have AC4 ratings
and DC2 ratings (operating coil ratings: 100/110
VAC, 200/220 VAC and 100/110 VDC).
Technical Specificat
|
CLASSIFICATION |
MINIAURE POWER RELAY SERIES | ||||
| MODEL | LY1,-S,-N,-F,-O | LY2,-S,-N,-F,-O | LY3,-S,-N,-F,-O | LY4,-S,-N,-F,-O | |
| DIMESIONS(mm) | 27.521.535 | 27.521.535 | 27.521.535 | 27.53135 | |
| CONTACT FORM | 1Z | 2Z | 3Z | 4Z | |
| CONTACT CAPACITY | 10A 250V AC | ||||
| COIL VOLTAGE | DC | 6220V | |||
| AC | 6380V | ||||
| COIL POWER | AC2.5VA DC1.5W | ||||
| PICK-UP | 80% max | ||||
| DROP-OUT | AC 30% mix DC 10% mix | ||||
| CONTACT RESISTANCE | 50mΩ | ||||
| INSULATION TESISTANCE | 100mΩ | ||||
| LIFE |
ELECTRICAL | 105 times | |||
| MECHANICAL | 107 times | ||||
| DIELECTRIC STRENGTH | BETWEEN OPEN CONTACTS | 1000v rms | |||
| BETWIN COIL&CONTACT | 1500v rms | ||||
| MOUNTING FORM | P.C.B & Socket | ||||
| OPERATING TEMPERATURE | -40+55 | ||||
| WEIGHT | About 35g | About 35g | About 53g | About 70g | |
| LIKE PRODUCTS | HH61P | HH62P | HH63P | HH64P | |
| FITTED SOCKET | PTF08A PTF08A-E PT-08 |
PTF08A PTF08A-E PT-08 |
PT-11 PTF11A |
PTF14A PTF14A-E PT-14 |
|
| REMARKS | with lamp:-N,FLANGE:-F with bottom:-S,PCB:-O |
||||
