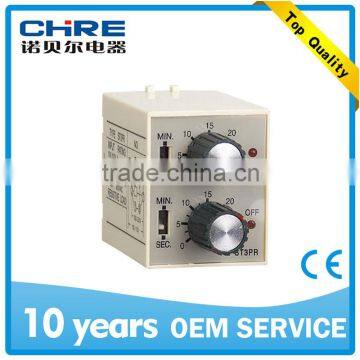

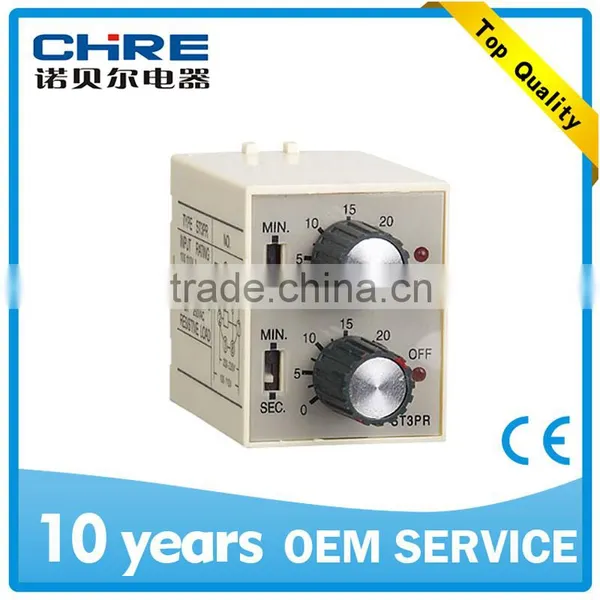

ST3P Time Relay,1-60s Delay Time
- Ningbo or Shanghai
- T/T Money Gram
You May Like
-
Best Quanlity 5 Pin JD1912 Auto Relay 12v 30a
-
15A Miniature Heavy Duty Power Pcb 4117 Automotive Relay
-
High Power Contact Load and Epoxy Protect Feature Magnetic Latching Relay
-
30A Power Relay JQX-30F 2Z 12V 24V 220V
-
6 Pin 10A/5A G2R G2RS JQX-14FT Space-saving Power Plug-in and Slim Relay
-
Slim Electromechanical PCB Relays 6A,similar With G2RV and HF41F Slim Relay
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Nobel | |
| Model Number | ST3P | Theory | Time Relay | |
| Usage | General Purpose | Size | Miniature | |
| Protect Feature | Epoxy | Contact Load | High Power |
Product Description

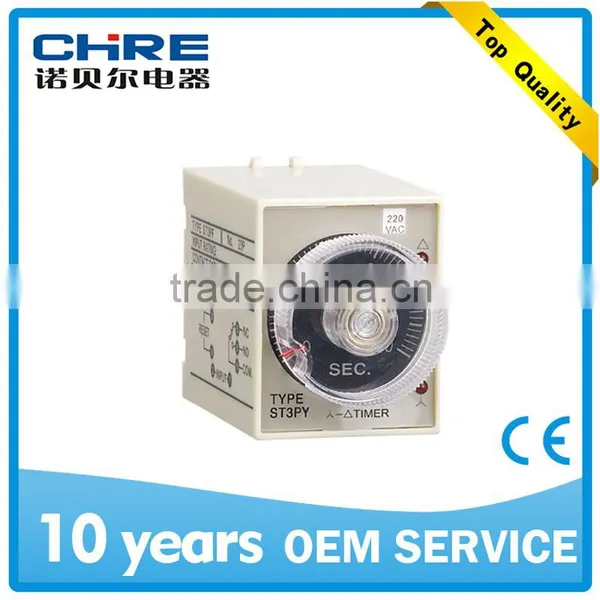

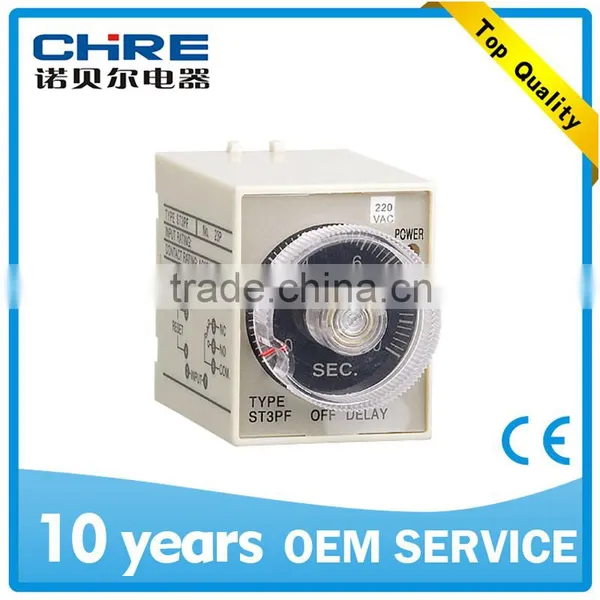

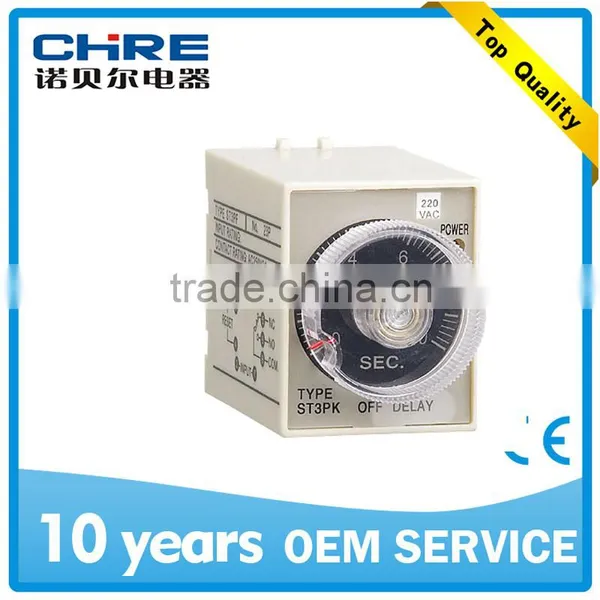

CHRE st3p-5pb, st3pk time delay relay, electrical time relay st3p
1, the air damping type time relay, also known as bellows type time relay, it is based on the air compression resistance to delay, its structure is simple, cheap, wide time delay range (0.4 ~ 180 s), but the delay precision is low.
2, electromagnetic relay time delay time is short (0.3 ~ 1.6 s), but its structure is simple, usually used in delay occasions and dc power.
3, the principle of dynamic time relay like clocks and watches, it is obtained by internal motor drive gear rotation and time delay. The relay delay of high precision, wide time delay range (0.4 ~ 72 h), but the structure is more complex, the price is very expensive.
4, the transistor type time relay, also known as electronic time relay, it is to use time delay circuit for time delay. This kind of relay with high precision, small volume.
| CLASSIFICATION | TIMER | TIMER | |||||

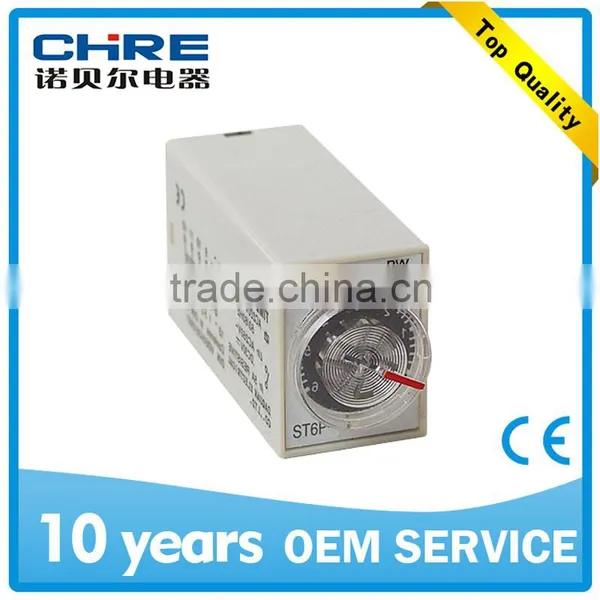

| MODEL | ST2P | ST3P | H3Y-_ (ST6P) | ||||
| DIMENSIONS | 50H*40W*57.5D | 55H*40.5W*57.5D | 28H*21W*52.6D | ||||
MOUNTING &SOCKET | SURFACE(-N) | PF083A(E) | PF-083A(E) | PYF08A(E) | PYF14A(E) | ||
| FLUSH(-Y) | US-08 P3G-08 | US-08 P3G-08 | With Y-20 adapter | ||||
| FULL TIMING RANGE | SEC:1, 3, 6, 10, 12, 30, 60 MIN:3, 6, 12, 30, 60 HR: 3, 6, 12, 30 | A:0.05-0.5s/5s/30s/3min B:0.1-1s/10s/60s/6min C:0.5-5s/50s/5min/30min D:1-10s/100s/10min/60min E:5-1min/10min/60min/6h F:0.25-2min/20min/2h/12h G:0.5-4min/40min/4h/24h | SEC:1, 3, 6, 12, 30, 60, 120 MIN:3, 5, 10, 30, 60 HR:3 | ||||
| RATED VOLTAGE | AC(V):12, 24, 110, 220 50/60HZ DC(V):12~24(50/60Hz) | 24 to 240 VAC/DC AC(V) 110V, 220V DC(V) 12V, 24V | DC(V):12, 24 AC(V):12, 24, 110, 220, 240 50/60HZ | ||||
| INDICATOR OPERATING | ON-UP Operating | ON, UP Operating | Power, up Operating | ||||
O/P CONTACT | MODEL | ST2P-E | ST3PA | ST3PC | H3Y-2 | H3Y-4 | |
| TIME LIMIT 1C | 5A | 5A | |||||
| TIME LIMIT 2C | 5A | 5A | 3A(4C) | ||||
| INSTANTANEOUS 1C | 5A | 5A | |||||
| LIFE | MECHANICAL | 5*107 times | 5*107 times | 5*106 times | |||
| ELECTRICAL | 105 times | 105 times | 105 times | ||||
| ACCURACY | REPEAT ERROR | ±1% max | ±1% max | ±3% max | |||
| SETTING ERROR | ±10% max | ±10% max | --- | ||||
| VOLTAGE ERROR | ±1% max | ±1% max | ±2% max | ||||
| TEMP. ERROR | ±2% max | ±2% max | ±5% max | ||||
| REST TIME | 0.5 sec max | 0.5 sec max | 0.2 sec max | ||||
| CONSUMED POWER | 2VA | 2VA | 3VA | ||||
| AMBIENT TEMPERATURE | -10°c~+55°c | -10°c~+55°c | -10°c~+55°c | ||||
| AMBIENT HUMIDITY | 35-85%RH | 35-85%RH | 48-85%RH | ||||
| WEIGHT | 100g | 45g | |||||
CONNECTION DIAGRAMS& TIMING CHART | 38I | 37I | 38I | 38C | 38D | ||
