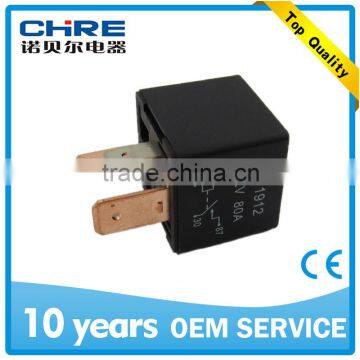

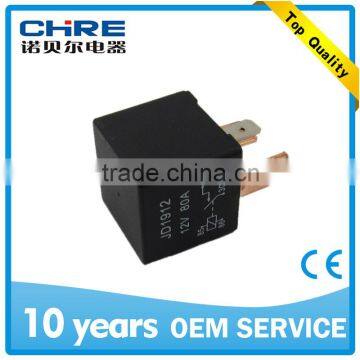

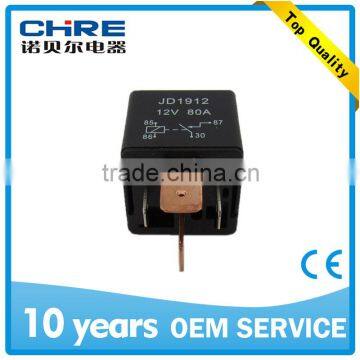

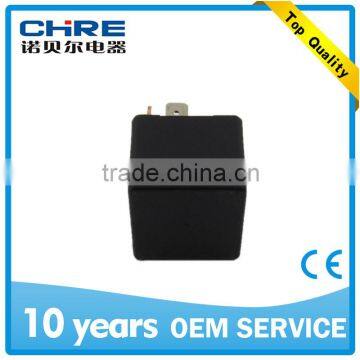

Best Quanlity 5 Pin JD1912 Auto Relay 12v 30a
USD $0.5 - $0.6
/ Piece
1 Piece(Min.Order)
- 100000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T
You May Like
-
The PFSA103D 3BSE002492R0001 motor controller offers a high degree of reliability
-
Acrel Distribution transformer protection measurement and control device AM5SE-T 4-20mA analog output
-
Acrel Motor differential protection AM5SE-MD measuring and controlling device is applied to high power asynchronous motor
-
Acrel Bus-link protection and self-input measurement AM5SE-B and control device bus charging modbus over ethernet
-
Acrel smart motor protector ARD2M K125 series protect timeout start-up overload unbalance short circuit
-
Acrel smart motor protector ARD2M K125 series protect timeout start-up overload unbalance short circuit
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Nobel | Model Number: | JD1912 |
| Theory: | Voltage Relay | Usage: | Auto | Size: | Miniature |
| Protect Feature: | Sealed | Contact Load: | High Power |
Product Description
CHRE Best Quanlity 5 Pin JD1912 Auto Relay 12v 30a Best Quanlity 5 Pin JD1912 Auto Relay 12v 30a
Product Description
40A switching capability
Various mounting terminals available
1Form A ,1 Form B & 1 Form C contact arrangement
Plastic sealed and dust protected types available

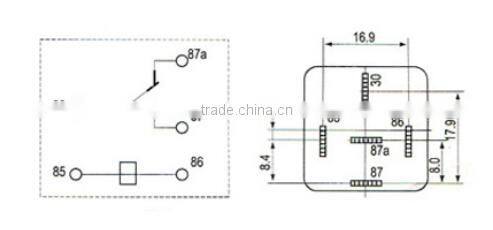

Outline dimension: 28.0*28.0*25.0mm
Technical Specificat
| Item No. | JD1912 |
| Rated Current | 20A/30A/40A/60A/80A |
| Coil Voltage | 12V/24VDC |
| Plug-in Leg No. | 4Pin/5Pin |
| Contact Form | 1A/1B/1C/1U/2A |
| Contact Material | Silver Alloy |
| Contact Resistance | 50mΩ |
| Coil Power Consumption | 1.8W |
| Between open Contacts | 550VAC |
| Between Coil and Contact | 750VAC |
| Insulation Resistance | 100mΩ |
| Electrical Life | 100000times |
| Machanical Life | 100000000times |
| Operating Temperature Range | -40°C ~ +85 °C |
| Operating Time | 10ms |
| Release Time | 5ms |
| Teminal Shape | Plug-in,PCB |
| Shell mode | Flat Shell,Metal Bracket,Plastic Bracket |
| Application Range | universal automobile |
| Exterminal Dimension | 28x28x25.5mm |
