Home > Products > power supply > DR-60-24 60W 24VDC 2.5A Dinrail Switching Power Supply

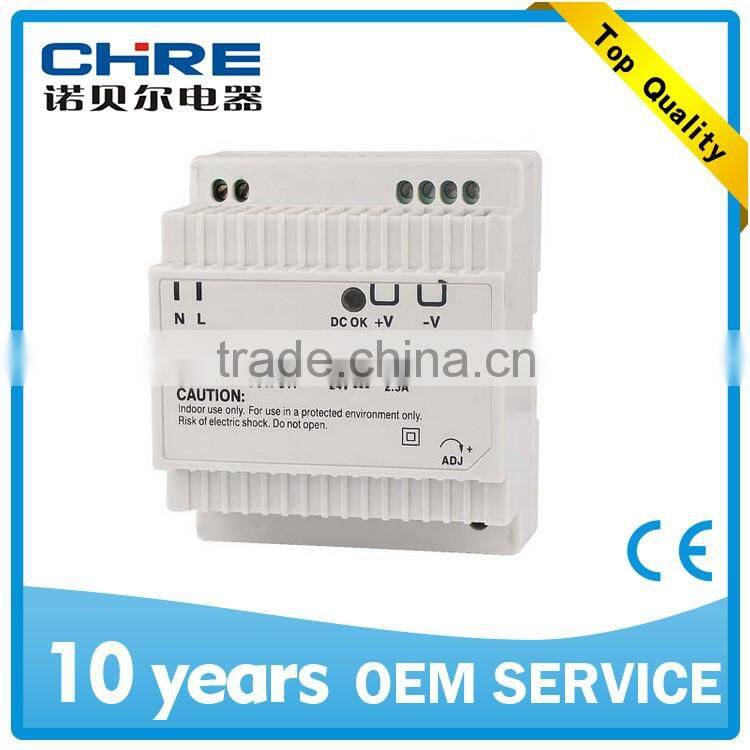

DR-60-24 60W 24VDC 2.5A Dinrail Switching Power Supply
- Ningbo or Shanghai
- T/T Money Gram
You May Like
-
DR-75 MODEL DR-75-12 DR-75-24 DR-75-48 OUTPUT -24 60W 24VDC 2.5A Dinrail Switching Power Supply
-
DR-120-24 120W 24V SINGLE OUTPUT INDUSTRIAL DIN RAIL POWER SUPPLY AC/DC CE APPROVED FOR LED
-
NOBEL 240W Industrial DIN Rail Power Supply 24V DRP-240-24
-
NOBEL CE&CB 75W 12V Single SMPS NES-75-12
-
BEST Power Supply Nobel CE 12v 100w Power Supply NES-100-12
-
CE Approved NES-120-12 Over Load Protection 230v Input 12V 10A Power Supply
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Chre | |
| Model Number | DR-30-12 | Output Power | Other, 60W | |
| Output Type | Single | Input Voltage | 220V | |
| Output Voltage | 12V | Output Frequency | 47~63Hz | |
| Output Current | 2.5A |
Product Description
CHRE DR-30-12 30W 12VDC 2.5A Dinrail Switching Power Supply
1.Low price and high reliability
2.105 output capacitor
3.AC input power suitable for the world
4.High efficiency and low operation temperature
5.Soft-start current can reduce the AC input impact effectively
6.With short-circuit and overload protection
7.Compact size, light weight
8.100% full-load burning test
9.Installed with EMI filter, minimum wave
10. DR-60-24 CE approved 60w 24 v dc din rail power supply
| Model | Output | Tolerance Voltage | Ripple and Noise | Efficiency |
| DR-60-5 | 5V, 0-6.5A | ± 2% | 100mvp-p | 72% |
| DR-60-12 | 12V, 0-3.5A | ± 1% | 200mvp-p | 77% |
| DR-60-15 | 15V, 0-4.0A | ± 1% | 240mvp-p | 77% |
| DR-60-24 | 24V, 0-2.5A | ± 1% | 480mvp-p | 80% |
| Features | ||||
| 1. Universal AC input/ full range | ||||
| 2. Installed on DIN rail TS35/ 7.5 or 15 | ||||
| 3. Protection: short circuit/ overload/ overvoltage | ||||
| 4. Isolation Class: B | ||||
| 5. Approvals: CE | ||||
| 6. LED indicator for power on | ||||
| 7. Cooling bu free air convection | ||||
| 8. 100% full load burn-in | ||||
| 9. 2 years warranty | ||||
| Specification | ||||
| 1. AC input voltage range: 88-264VAC; 120-370VDC | ||||
| 2. AC inrush current: cold start, 18A at 115VAC, 36A at 230VAC | ||||
| 3. DC adjustment range: ±10% rated output voltage | ||||
| 4. Overload protection: 105%-160% constant current limiting, auto-recovery | ||||
| 5. Over voltage protection: 115%-135% rated output voltage | ||||
| 6. Setup, rise, hold up time: 800ms, 60ms, 100ms at full load and 230VAC | ||||
| 7. Withstand voltage: I/P-O/P: 3KVAC | ||||
| 8. Working temperature: -20-45°C@100%, 60°C@60% load | ||||
| 8. EMC standards: EN55022 class B, EN6100-3-2,3,EN61000-6-2,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN61204-3 | ||||
| 9. Connection: I/P: 2 poles, O/P: 4 poles screw DIN terminal | ||||
| 12. Dimension (L*W*H): 78*93*56 mm | ||||
Dimension
