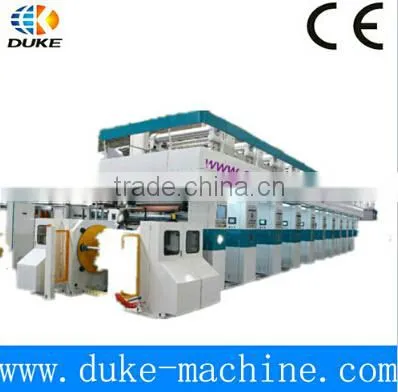

Good Selling Aluminumcolor Printing Machine (AY-8800)
Aluminum Foil Printing Machine Application:
This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as Heat Transfer? Film,? BOPP, PET, PVC, PE, aluminum foil and paper, etc.
Profile:
Gravure printing? Machine is suitable for many kinds of plastic film, paper etc roll material printing, three-motor tension control in closed loop, computer register, shaftless, pneumatic blade, converter adjust speed, steady tension, actually register, high capacity, reasonable design, easy to operate and realiable quanlity.
Note: The instead options according to clients? ? Demand: Five motor, seven motor tension synchronous control system, can add obverse and inverse double side computer register structure and so on.
Machine show:
Main characteristic :
1. Double air-shaft in rewinding. High speed auto receiving material without stop
2. Double air-shaft in unwinding. Semi-automatic cutting and receiving
3. Air cooling device
4. Options: Water cooling device
5. Float roll type double cylinder embossing
6. Shiftless type load plate
7. Double layers cycle hot oven to dry
8. Centralize exhaust air device
9. Computer register system (brand according to clients)
10. Inspection unit (brand according to clients)
11. Extra options: Obverse and inverse double printing device
12. Film tension adopts three motor synchronous system(main motor. Unwinding traction. Rewinding traction)
13. Operate man-machine in text
| Type | ZRAY-8800D | ZRAY-81000D | AZJ-81200D |
| Effective Printing Width | 800mm | 1000mm | 1200mm |
| Max. Width of Web | 850mm | 1050mm | 1250mm |
| Max. Printing Speed | 150m/min | 150m/min | 150m/min |
| Max. Mechanical Speed | 170 m/min | 170 m/min | 170 m/min |
| Max. Diameter of Unwind/Rewind | 600mm | 600mm | 600mm |
| Inside Diameter of Roll Core | 76mm | 76mm | 76mm |
| Diameter of Printing Cylinder | 140~360mm | 140~360mm | 140~360mm |
| Accuracy of Computer Registration | ± 0.1mm | ± 0.1mm | ± 0.1mm |
| Tension Control Range | 20~50kg/Full Width | 20~50kg/Full Width | 20~50kg/Full Width |
| Heating Power of Oven | 120Kw | 144Kw | 234Kw |
| Total Power | 181Kw | 205Kw | 266Kw |
| Weight of Machine | 31000kg | 34000kg | 37000kg |
| Overall Dimension | L20000× W3800× H3100mm | L20000× W4000× H3100mm | L20000× W4200× H3100mm |
FAQ:
1.Q:Are you a factory or trade company?
R:We are a factory & Trade company.
2.Q:Where is your company located?How can I visit there?
R:Our company is located in Ruian City,Wenzhou area,Zhejiang province,China.
About 1 hour by plane from Shanghai to Wenzhou,then 1 hour taxi to our place(5 hours by fast
train to Ruian station)
3.Q:what is the raw material does the machine ?
R:the material is A4 Paper Sheet
4.Q:who can answer my urgent questions about the machine?
R:leave a message when I am not online,will reply you within 24hours.
5.Q:how does your factory do regarding quality control?
R:our company policy is “quality first,customer first”.we have a QC manager whom check
the machine making from beginning to the end.
if you have any question ,pls feel free to contact me !
I am waiting for at any time
We focus on : high quality machine (50 years working without problems)
Low price --------italy quality level, china commodity price
After sale service-------24 hours answer to clear your confusion
We have ready machine in workshop, welcome visiting !
