Flexgraphic Plastic Printing Machine (YT Series)

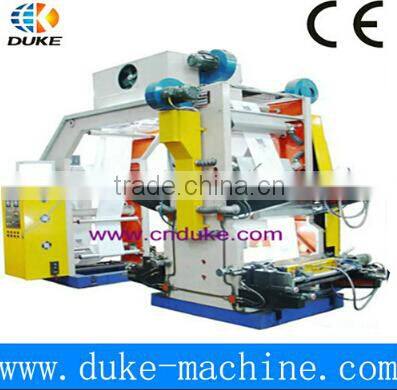

Flexgraphic Plastic Printing Machine (YT Series) photo-1
US$ 1,000 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Letterpress
Place of Origin Zhejiang, China
Brand Name duke
Model Number YT Series
Usage Bill Printer, Label Printer, Paper Printer, Tube Printer
Automatic Grade Automatic
Voltage 380V
Gross Power 18kw
Dimensions(L*W*H) 3900*2060*2950mm
Weight 5000kg
Certification CE,ISO
After-sales Service Provided Engineers available to service machinery overseas


High Speed Flexgraphic Plastic Printing Machine
(YT Series)


Double-duct drying, closed ink circulation and pattern inspection systems are adopted. It features high speed and small error.
Work with encolosed chambered doctor blade, high speed printing and machine more stable.
The Stack type Flexographic Printing Machine is capable of printing on different surfaces such as HM, HDPE, LD, LLDPE, B. O. P. P, Polypropylene, Paper, Aluminium Foil etc.

Machine show :
Flexgraphic Plastic Printing Machine (YT Series)


Our products including :
1. Blown film machines: double layer and 3 layers co-extrusion film blowing machine,
double die head film blowing machine, 3 layers co-extrusion film blowing machine, rotary die dead blown film machine, PVC film making machine, ziplock bag film blowing machine;
2. Bag making machines: bottom sealing bag making machine, side sealing bag making machine, courier bag making machine, double lane bag making machine, ziplock bag making machine, bags en roll making machine, etc;
3. Printing machines: rotogravure printing machine, flexographic printing machine, 1-8 colors for your choice.
4. Other machines: film folding machine, crushing & granulating machine, patch handle sealing machine, glue spraying machine, etc.
5. Machinery accessories: material mixing machine, guesset bag making machine, holes punching die, corona treater etc.
The main packaging products we produce:
1. PE bag, PP bag, OPP bag, PP bag;
2. Carrier bags,T-shirt bag, handle bag, shopping bag, bottom-sealing bag;
3. Courier bag, zip lock bag, self-adhesive bag, side-sealing bag.
4. Styles available: stand up, gusset, zipped, heat-sealed, heat-cut, cold-cut, blown, sealed-in the-middle,three-side-sealed, with handle or hanger hole
Flexgraphic Plastic Printing Machine (YT Series)


I am waiting for at any time
We focus on : high quality machine (50 years working without problems)
             Low price --------italy quality level, china commodity price
             After sale service-------24 hours answer to clear your confusion





Printing width
Item

500mm

600mm

800mm

1000mm

1200mm

1400mm

1600mm

1800mm

Printing material

PVC:35-70μ m,OPP:20-70μ m,BOPP:18-60μ m,PE:35-100μ m,Paper:30-150g/m2 CPP:20-60μ m,Plating film:30-80μ m,Aluminum:25-80μ m,PET:15-60μ m,Cellophane:20-120 g/m2,Wrapping paper :17-80 g/m2

Printing color

at your own choice / 6 special color

Printing length

7.5"-40" (190mm-1016mm)/7.5"-50"(190mm-1270mm)

Printing possibility

PC:6+0;5+1;4+2;3+3

Printing plate lifting system

Pneumatic press control

Mechanical speed

150m/min

Printing speed

120m/min

Anilox cylinder

Metal: 100DK-170DK(Germany)/Ceramic:250LPI-800LPI(Japan)

Register precision

Longitude:±0.15mm  Transverse: ±0.15mm

Rewinder/Unwinder DIA

ø 600mm/ ø 800mm

Master motor

5.5KW

7.5KW

11KW

15 KW

Unwinder motor

1.1 KW

1.5 KW

2.2 KW

3.0 KW

Rewinder motor

1.5 KW

2.2 KW

3.0 KW

3.7 KW

Electrical header

18KW

22 KW

30 KW

38 KW

Blower of header

0.75 KW×2

1.1 KW×2

1.5 KW×2

2.2 KW×2

Blower of nature wind

0.75 KW

1.1 KW

1.5 KW

2.2 KW

Inking motor

370W

750W

Master frequency converter

transducer Japan

Dimension (L×W×H)

4.8m
×
1.8m
×
3.75m

4.8m
×
1.9m
×
3.75m

4.9m
×
2.3m
×
3.8m

4.9m
×
2.5m
×
3.8m

5.0m
×
2.8m
×
3.85m

5.0m
×
3.0m
×
3.85m

5.2m
×
3.2m
×
3.9m

5.2m
×
3.4m
×
3.9m

Weight

7550Kg

7850Kg

8300Kg

8700Kg

9300Kg

9800 Kg

10200Kg

10800Kg

Master power

28KW

30 KW

36KW

36KW

50KW

50KW

65KW

65KW
