Bushing for tansformer
- Tianjin
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | FY | |
| Model Number | FCGW-12/630 | Type | Insulation Sleeving | |
| Material | Composite Polymer | Application | High Voltage | |
| Rated Voltage | 12-40.5kv | Tensile Strength | 1000-4000N |
Product Description
Busing for tansformer

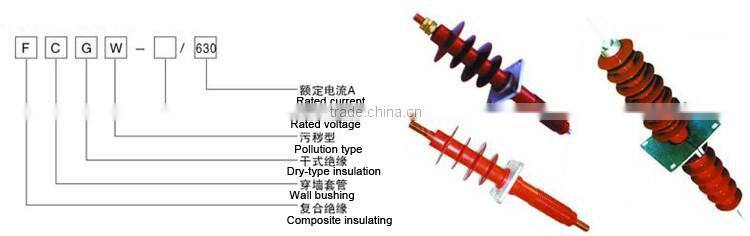

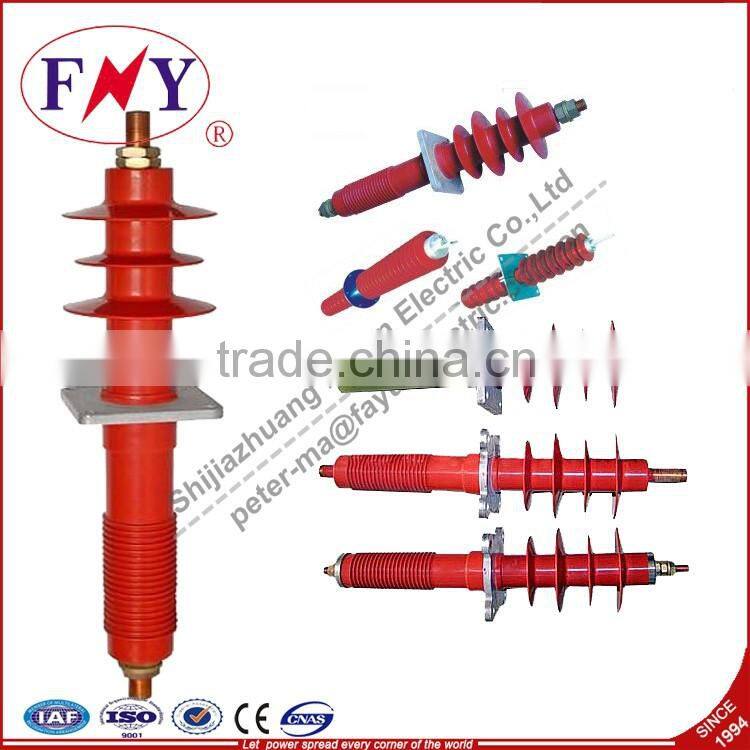

The FCGW high-voltage dry-type wall bushing is applicable as mechanical support for electric insulation of high-voltage conductors during high-voltage conductor crossing walls or other earthed objects in outdoor or indoor AC substations with a rated voltage of 35kv or below and a frequency of 50HZ, it is also usable for insulation and support of high-voltage incoming and outgoing lines of 10kv vacuum circuit breakers, especially for polluted areas to effectively. avoid pollution flashover accidents. it is an alternative of currently popular ceramic wall bushing which is widely used presently.
| Product Model | Rated Voltage KV | Rated Current A | total bushing lenth Lmm | Allowed Bending load N | Bending failure load N | Min power-frequency withstand voltage KV | Min lightning full-wave impulse withstand voltage (peak) KV |
| FCGW-10/200~630 | 10 | 200~630 | 535 | 625 | 1250 | 30 | 75 |
| FCGW-35/630~1600 | 35 | 630~1600 | 1395 | 625 | 1250 | 95 | 200 |
1.Our sales representative are 24 hours online,to ensure reply you ASAP.
2.When the products are finished,they must be checked by our QC firstly.
3.We own several whole production lines,which can not only provide best quality and competitive price,but also reduce production period.
| Cathy Lee |
| +86318-82199692 | |
| +86318-82199890 | |
| +86 13730769786 | |
| fayun_cathy | |
| | |
| No.55,Yunkai Road,Economic development zone,Luquan,hebei,China |
we not only produce varistors of various specifications as above,but also meet customers' requirements.
