Help CenterInsulation Bushing
Negotiable
MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
FY
Model Number:
FCGW
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Polymeric Transformer Bushing/Composite Transformer BushingNegotiableMOQ: 100 Pieces -
Polymeric Bushing for TransformerNegotiableMOQ: 100 Pieces
-
Transformer Bushing (Composite)NegotiableMOQ: 100 Pieces
-
Composite Transformer BushingNegotiableMOQ: 100 Pieces
-
Composite Polymer Insulator Transformer BushingNegotiableMOQ: 100 Pieces
Place of Origin
Hebei, China
Brand Name
FY
Model Number
FCGW
Type
Insulation Sleeving
Material
Composite Polymer
Application
High Voltage
Rated Voltage
12-40.5kv
Tensile Strength
1000-4000N
Specifications
Insulation bushingambient temperature:-40oC-+40oC
elevation:1000m
pollution class: class 3 or above

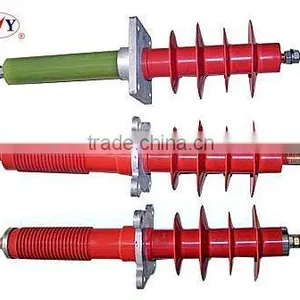

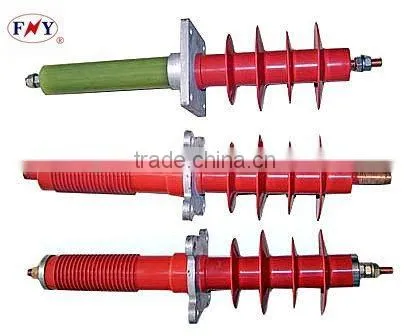

The FCGW high-voltage dry-type wall bushing is applicable as mechanical support for electric insulation of high-voltage conductors during high-voltage conductor crossing walls or other earthed objects in outdoor or indoor AC substations with a rated voltage of 35kv or below and a frequency of 50HZ, it is also usable for insulation and support of high-voltage incoming and outgoing lines of 10kv vacuum circuit breakers, especially for polluted areas to effectively. avoid pollution flashover accidents. it is an alternative of currently popular ceramic wall bushing which is widely used presently.
| Product Model | Rated Voltage KV | Rated Current A | total bushing lenth Lmm | Allowed Bending load N | Bending failure load N | Min power-frequency withstand voltage KV | Min lightning full-wave impulse withstand voltage (peak) KV |
| FCGW-10/200~630 | 10 | 200~630 | 535 | 625 | 1250 | 30 | 75 |
| FCGW-35/630~1600 | 35 | 630~1600 | 1395 | 625 | 1250 | 95 | 200 |
