Help CenterComposite Polymer Insulator Transformer Bushing
Related Products
Specifications
Composite polymer insulator transformer bushing1.Specialize in epoxy transformer bushing
2.high voltage
3.CE , ISO 9001:20

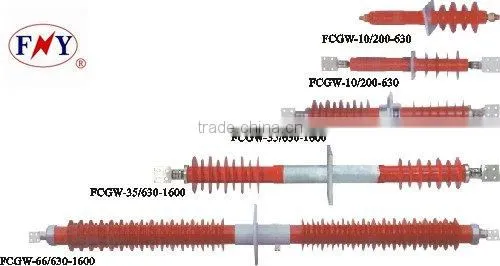

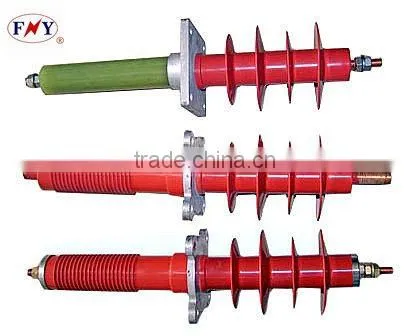

Composite polymer insulator transformer bushing
Application:High voltage
Material:Epoxy resin
Type:Insulating bushing
use for mine
bushing tube,insulation tube,high voltage bushing,insulating bushing,insulating sleeving,switchgear accessory.
1.Adopts epoxy resin automatic pressure gel craft that be APG craft manufacture. Product beautiful, Machine ,Electrical performance fit.
2.Adopts high toughness epoxy resin manufacture , Machine capability excellent, And adopts low reaction activity recipe system , Material solidifies slow , Product body stress low. Maximum field enhances products machine capability .
3.Adds activated silica slight powder , Furthurs enhance epoxy resins machine capability ,Much ensures insulate long-term keep good electric insulate performance under wet work environment.
4.Adds organic color , Product color and lustre bright, Does not reduce products insulate performance
|
Product Model |
Rated Voltage KV |
Rated Current A |
Total bushing length mm |
Allowed Bending load N |
Bending failure load N |
Min power-frequency withstand voltage KV |
Min lightning full-wave impulse withstand voltage (peak) KV |
|
FCGW-10/200~630 |
10 |
200~ 630 |
535 |
625 |
1250 |
30 |
75 |
|
FCGW-35/630~ 1600 |
35 |
630~ 1600 |
1395 |
625 |
1250 |
95 |
200 |
