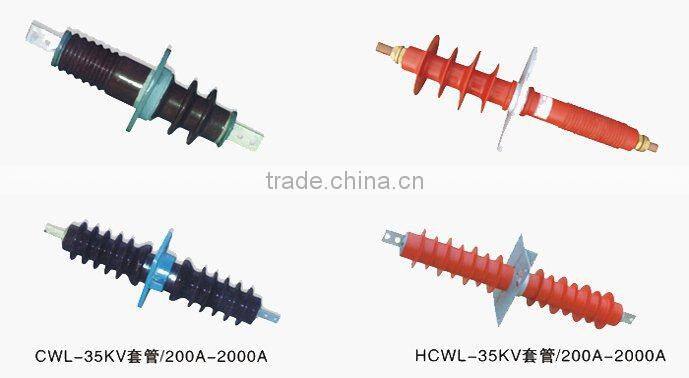

Help CenterComposite Transformer Bushing
Related Products
Specifications
Insulation bushing:1.ambient temperature:-40oC-+40oC
2.elevation:1000m
3.pollution class: class 3 or above
4.ISO9001:2000
The FCGW high-voltage dry-type wall bushing is applicable as mechanical support for electric insulation of high-voltage conductors during high-voltage conductor crossing walls or other earthed objects in outdoor or indoor AC substations with a rated voltage of 35kv or below and a frequency of 50HZ, it is also usable for insulation and support of high-voltage incoming and outgoing lines of 10kv vacuum circuit breakers, especially for polluted areas to effectively. avoid pollution flashover accidents. it is an alternative of currently popular ceramic wall bushing which is widely used presently.
Product Model
Rated Voltage KV
Rated Current A
total bushing lenth Lmm
Allowed Bending load N
Bending failure load N
Min power-frequency withstand voltage KV
Min lightning full-wave impulse withstand voltage (peak) KV
FCGW-10/200~630
10
200~630
535
625
1250
30
75
FCGW-35/630~1600
35
630~1600
1395
625
1250
95
200
