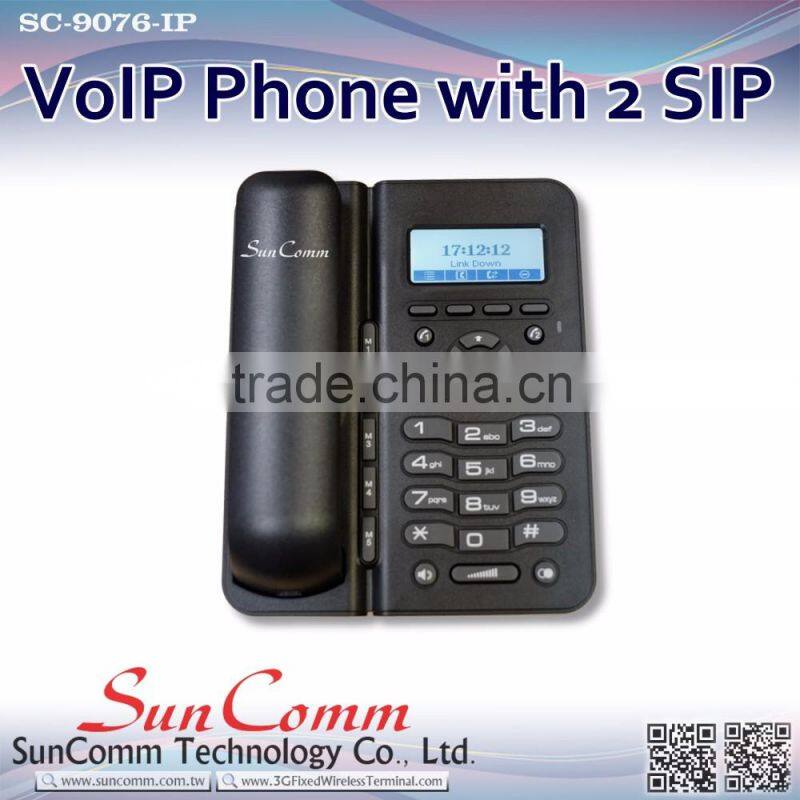

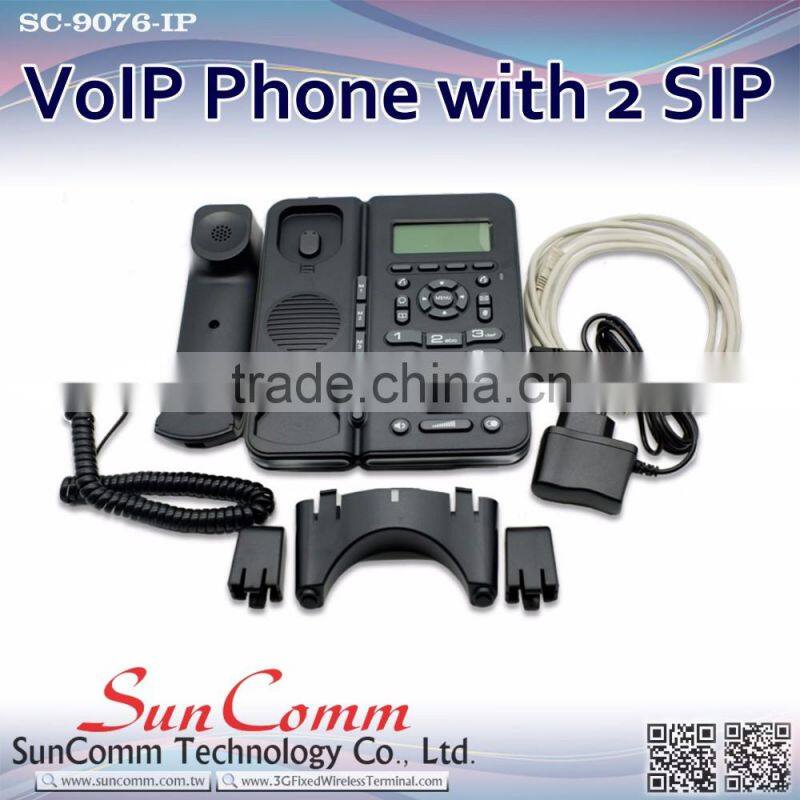

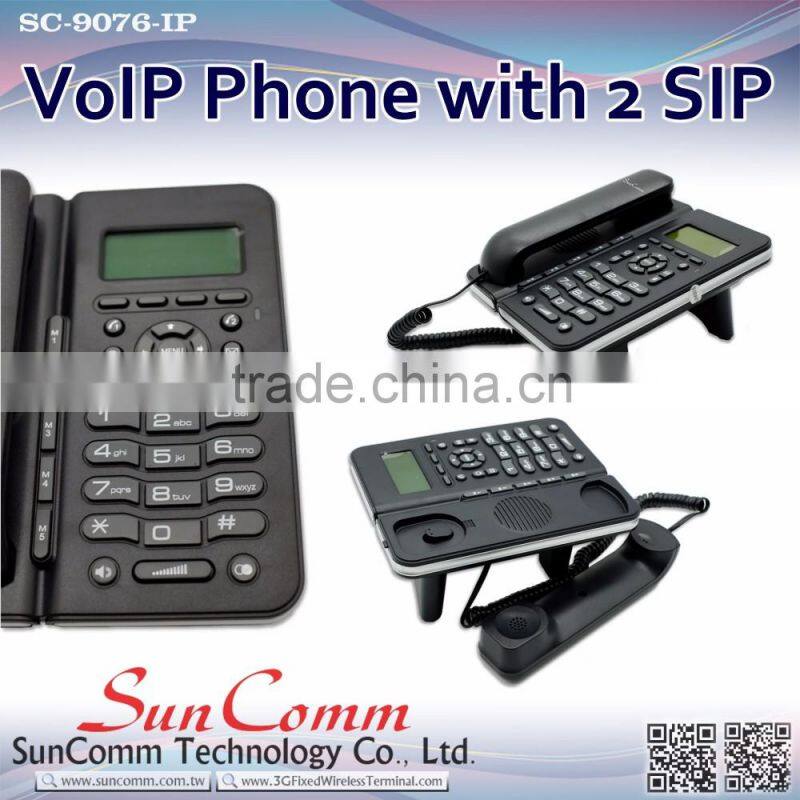

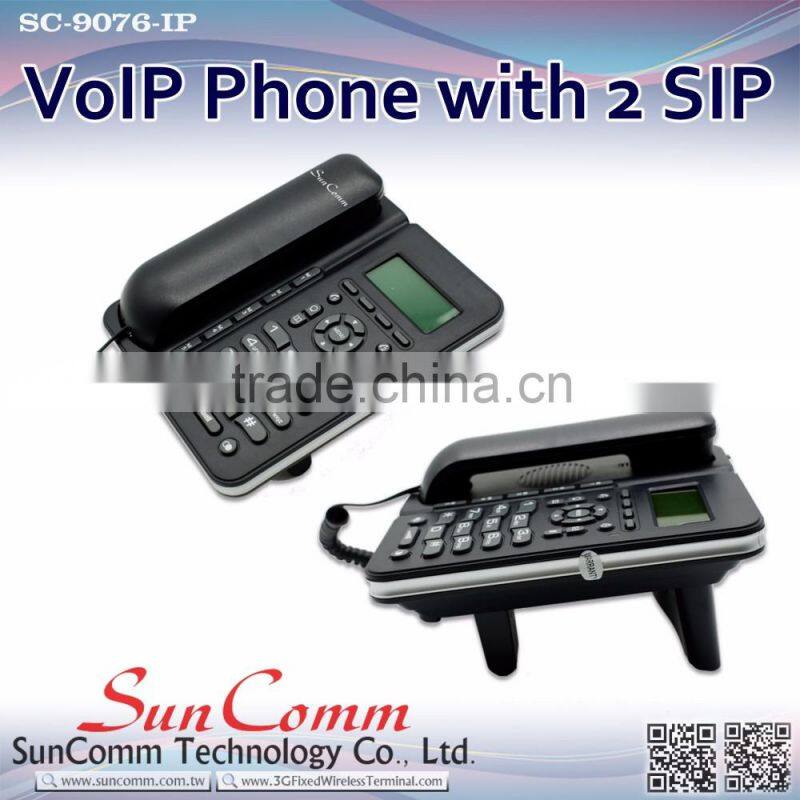

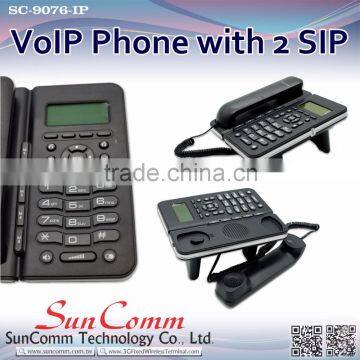

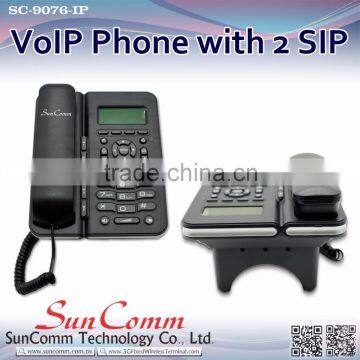

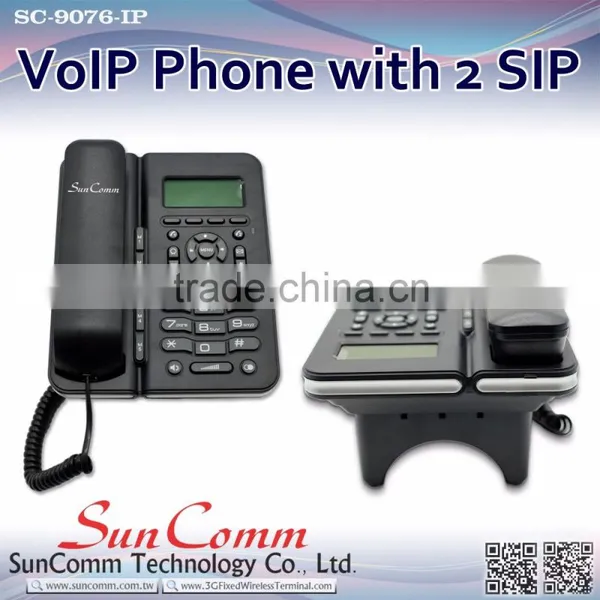

SC-9076-PE cost effective VoIP Phone with PoE 2 SIP account

Audio Features

• HD voice: HD handset, HD speaker
• Codec: G.722, G.711(A/μ), G.723.1, G.729AB, G.726, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Phone Features

• 2 SIP accounts
• Call hold, mute, DND
• One-touch speed dial, hotline
• Call forward, call waiting, call transfer
• SMS
• Redial, call return, auto answer
• Local 3-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial plan

Directory

• Local phonebook up to 500 entries
• Black list
• XML/LDAP remote phonebook
• Intelligent search method
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded

IP-PBX Features

• Anonymous call, anonymous call rejection
• Hot-desking, emergency call
• Message Waiting Indicator (MWI)
• Voice mail
• Call park, call pickup
• Intercom, paging
• Music on hold
• Call completion
• Call recording

Display

and

Indicator

• 128 x 64-pixel graphical LCD with backlight
• LED for call and message waiting indication
• Intuitive user interface with soft keys
• National language selection
• Caller ID with name, number

Other Physical Features

•  External universal AC adapter (optional):
•  AC 100~240V input and DC 5V/1A output
•  Power consumption (PSU): 1.3-2.1W
•  Power consumption (PoE): 1.8-3.1W
•  Dimension: 210 x 170 x 45mm
•  Operating humidity: 10~95%
•  Operating temperature: -10~50°C

Feature keys

•  5 features keys: headset, phonebook, mute, speaker, redial
•  3 “soft” keys
•  5 navigation keys
•  Volume control keys

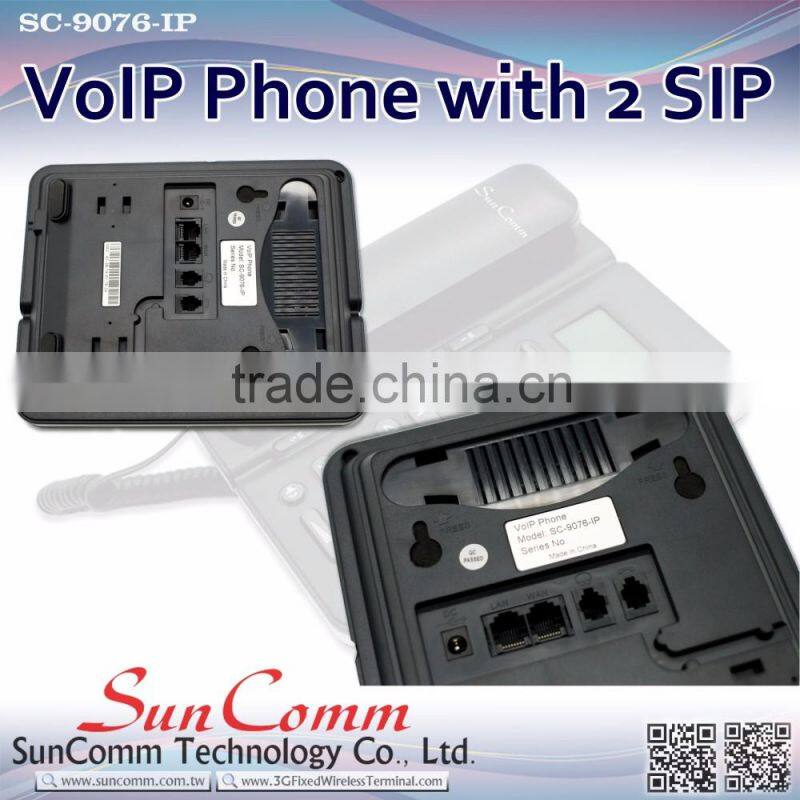

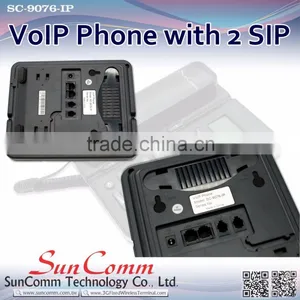

•  2 x RJ45 10/100M Ethernet ports
•  Power over Ethernet (IEEE 802.3af), class 2
•  1 x RJ-9 (4P4C) handset port

Network and Security

•  SIP v1 (RFC2543), v2 (RFC3261)
•  Call server redundancy supported
•  NAT transverse: STUN mode
•  Proxy mode and peer-to-peer SIP link mode
•  IP assignment: static/DHCP/PPPoE
•  HTTP/HTTPS web server
•  Time and date synchronization using SNTP
•  UDP/TCP/DNS-SRV(RFC 3263)
•  QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
•  SRTP for voice
•  Transport Layer Security (TLS)
•  HTTPS certificate manager
•  AES encryption for configuration file
•  Digest authentication using MD5/MD5-sess

Management

•  Configuration: browser/phone/auto-provision
•  Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
•  Phone lock for personal privacy protection
•  Reset to factory, reboot
•  Package tracing export, system log

Package Features

•  Qty/CTN: 10 PCS
•  N.W/CTN: 9.3 KG
•  G.W/CTN: 10.3 KG
•  Gift box size: 230 X 290 X 55 mm
•  Carton Measurement: 480 X 295 X 310 mm
