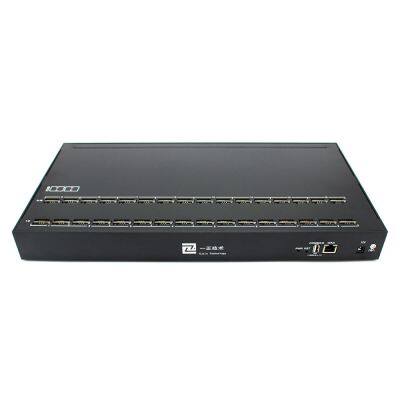

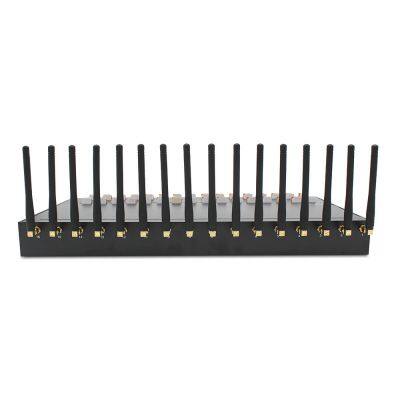

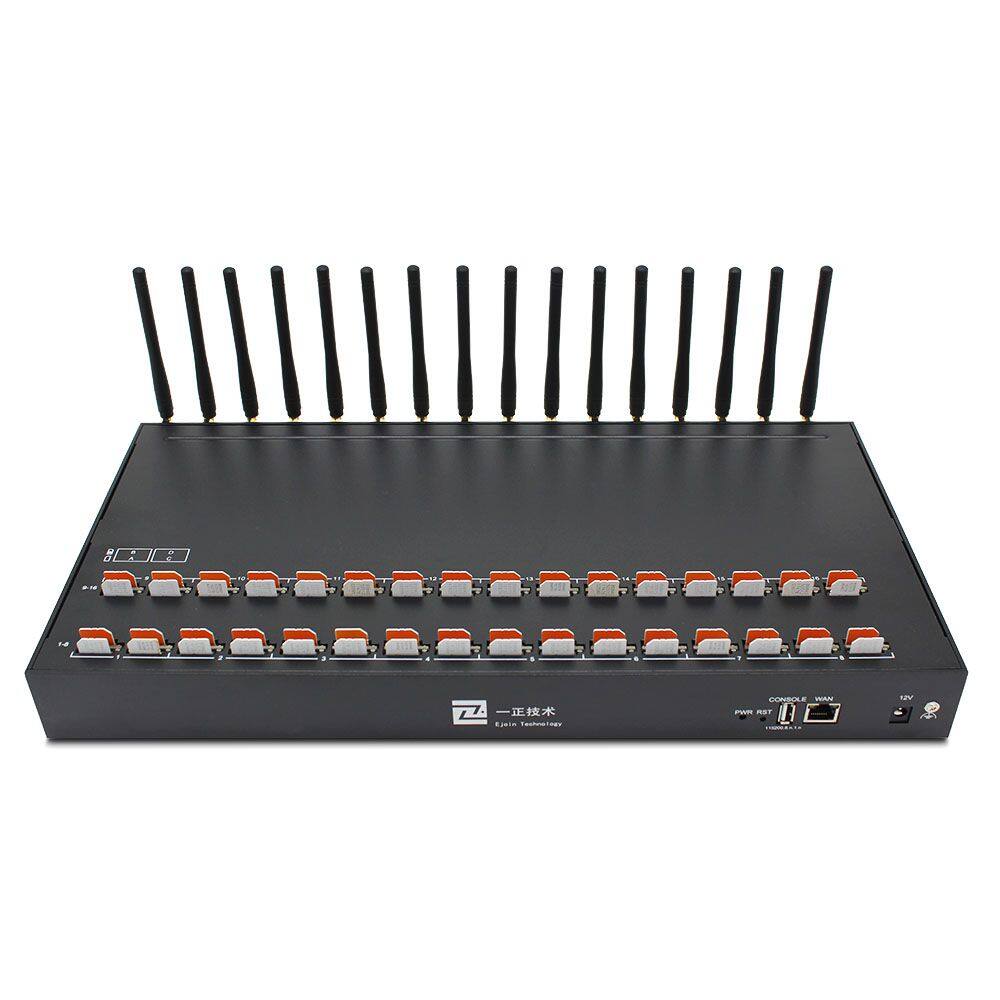

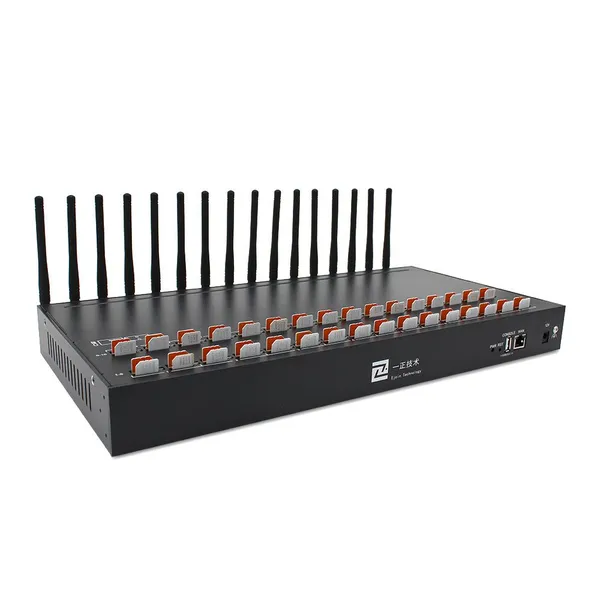

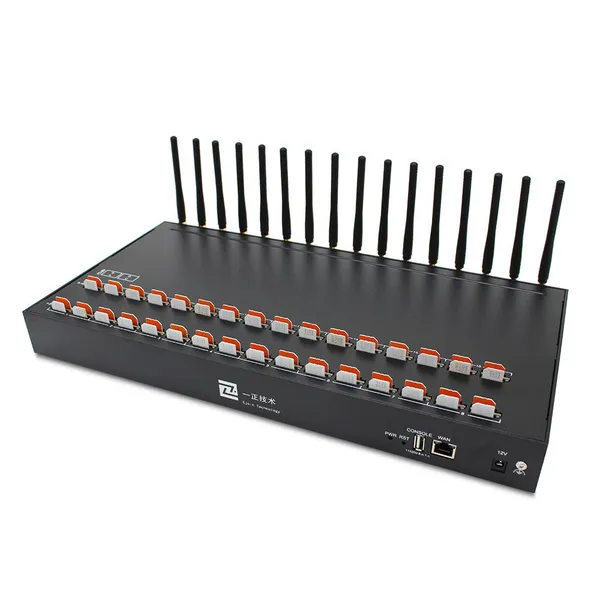

Ejoin 16 Ports 64 SIMs VoIP Gateway ACOM516L-64 SIP GoIP Modem
ACOM516L-64 is a 16 Channel VoIP Gateway used to smoothly transit between mobile and network for the transmission of SMS and voice. ACOM516L-64 supports up to 16 concurrent calls, 1 Channel Support 4 ports SIM Cards switching allows a great performance for cost-saving Integrated GSM/LTE connectivity.
ACOM516L-64 suitable for enterprises, multi-site organizations, marketing, and areas with limited landlines like rural areas to cut down marketing costs and enable easy efficient communications.
EjoinTech is a professional developer and manufacturer of VoIP products. EjoinTech provides ACOM brand VoIP communication devices and solutions. And we also offer customized products and OEM service. They are a cost-effective gateway for SOHO, SMEs and system integrators and it also opens up new revenue generating opportunities for service providers.
Special Features:
SIM Card Rotating
IMEI Change
Call Duration Limitation for SIM Card
Port Inter-Calling/SMS
Get SIM Number/Balance auto
Call statistics: ASR,ACD,PDD
HTTP API for SMS/USSD/AT Command
SMPP Server/Client
CDR checking
Auto Recharge
Call Back/Wait
Support SIM POOL
VPN(pptp)
Station intelligent switching
ERMS(Ejoin Remote Management System)
ECMS(Ejoin Centralized Management system)
Fake Ring-back
Dial Plan/Prefix Inward Translation/Intelligent Routing
Specification:
Model |
ACOM 516L-64 |
Number of Channels |
16 channels |
Number of slots |
64 Sim |
SIP Specification |
SIP/2.0 RFC3261 |
| Session Timer RFC4028 | |
| STUN | |
Network Protocols |
DHCP/PPPoE/VPN(pptp) |
| NTP | |
| Telnet/HTTP/FTP/TFTP | |
| Encryption:Ejoin,VOS2000,RC4,XOP.Base64 | |
Telephony Features |
Hot-line call ,Dial plan, Speed dial, Phone book, CDR, LCR, White/Black list |
Telephony Signaling |
DTMF tone detection/generation |
| DTMF relay: in-band, RFC 2833 and SIP info | |
| Call forward: unconditional, no answer and busy | |
| N-way conferencing | |
| Caller ID display/generation, Mobile Number Portability | |
Voice Capability |
Voice codecs:G729a/b/e,G723.1,G.711 A/U law, iLBC G722,G726-32,PCMA,PCMU |
| Echo cancellation | |
| Silence suppression & detection（VAD, CNG） | |
| Adaptive jitter buffer | |
| Volume adjustable | |
| IVR customized | |
Number of Ports |
1 WAN 10/100Base-T Ethernet(RJ-45 connector) |
| 1 Console(USB) | |
LEDs |
1 Power and 16 groups of card online and running status indicator |
Operating Environment |
Operating temperature: 0 - 50ºC |
| Operating humidity: 10 – 90%RH | |
Warranty |
12 Months |
Mobile Features:
SMS Send, Receive and Forward(GSM/SIP/HTTP)
SMS Inbox
AT Command , USSD
SMS Format: PDU/TXT
PIN Code Management
Caller ID Hidden(need SIM Card support)
MNP
Internet Access
Maintenance and Management:
Multi-language Interface
Role Management
USB Serial COM
Configuration Backup and Restore
Support HTTP/TFTP Upgrade
Ejoin 16 Ports 64 SIMs VoIP Gateway ACOM516L-64 SIP GoIP Modem
