Home > Electrical & Electronics > Telecommunication & Broadcasting > WiFi Products > SC-5001-1E1 Best Product Trunk Voip Gateway With 1 Port Support H.323/SIP Protocol

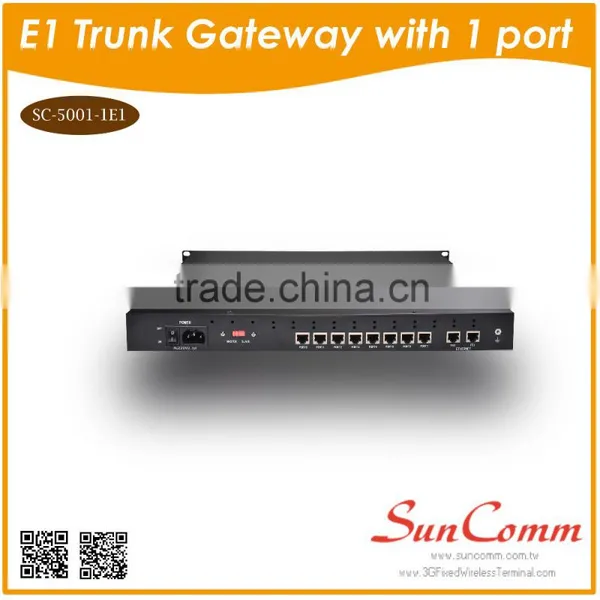

SC-5001-1E1 Best Product Trunk Voip Gateway With 1 Port Support H.323/SIP Protocol

Name: SC-5001-1E1 Best Product Trunk Voip Gateway With 1 Port Support H.323/SIP Protocol
Brand: SunComm
SKU: 133010381
Availability: InStock

SC-5001-1E1 Best Product Trunk Voip Gateway With 1 Port Support H.323/SIP Protocol thumbnail-1

SC-5001-1E1 Best Product Trunk Voip Gateway With 1 Port Support H.323/SIP Protocol thumbnail-2

SC-5001-1E1 Best Product Trunk Voip Gateway With 1 Port Support H.323/SIP Protocol photo-1

SC-5001-1E1 Best Product Trunk Voip Gateway With 1 Port Support H.323/SIP Protocol photo-2

US$ 1 - 880 MOQ: 10 Units

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SunComm

Model Number:

SC-5001-1E1

Contact Supplier Request Quote Chat Now

Suncomm Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Taiwan

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SunComm

Model Number SC-5001-1E1

SC-5001-1E1 Best product Trunk voip Gateway with 1 port Support H.323/SIP protocol

Product Description

PSTN

1.ISDN PRI

23B+D (T1),30B+D (E1), NT or TE
ITU-T Q.921, ITU-T Q.931, Q.Sig

2.Signal 7/SS7

ITU-T, ANSI,ITU-CHINA

MTP1/MTP2/MTP3, TUP/ISUP

3.E1 Frame Type : DF,CRC-4,CRC_ITU

4.T1 Frame Type :
4-Frame Multi-frame (F4,FT),2-Frame Multi-frame (F12, D3/4), Extended Super-frame (F24, ESF) ,Remote Switch Mode (F72, SLC96)

5.Line Codes:

E1:NRZ,CMI,AMI,HDB3

T1:NRZ,CMI,AMI,B8ZS

6.Clock:

Local/Remote Clock Source

VoIP Protocol

SIP v2.0 (UDP/TCP),RFC3261

SDP,RTP(RFC2833), RFC3262,

3263,3264,3265,3515,2976,3311

RTP/RTCP, RFC2198, 1889
SIP-T,RFC3372, RFC3204, RFC3398
H.323
SIP Trunk Work Mode :Peer/Access
SIP/IMS Registration :with up to 256 SIP Accounts
NAT: Dynamic NAT, Rport

Software Features

Local/Transparent Ring Back Tone
Overlapping Dialing
Dialing Rules,with up to 2000
PSTN group by E1 port or E1 Timeslot
IP Trunk Group Configuration
Voice Codecs Group
Caller and Called Number White Lists
Caller and Called Number Black Lists
Access Rule Lists
IP Trunk Priority
RTP and Signaling Encryption (VOS RC4)

Maintenance

Web GUI Configuration
Data Backup/Restore
PSTN Call Statistics
SIP Trunk Call Statistics
Firmware Upgrade via TFTP/Web
SNMP v1
Syslog: Debug, Info, Error, Warning , Notice
Call History Records via Syslog
NTP Synchronization
Centralized Management System

Call Features

Flexible Route Methods

PSTN-PSTN, PSTN-IP, IP-IP, IP-PSTN

Intelligent Routing Rules
Call Routing base on Time
Call Routing base on Caller/Called Prefixes
256 Route Rules for each Direction
Caller and Called Number Manipulation

Environmental

Power Supply: 100-240VAC, 50-60 Hz
Power Consumption:25W
Operating Temperature:0 ℃ ~ 45 ℃
Storage Temperature: -20 ℃ ~80 ℃
Humidity:10%-90% Non-Condensing
Dimensions(W/D/H): 436*300*44.5mm(1U)
Unit Weight: 2.0kg
Compliance: CE, FCC

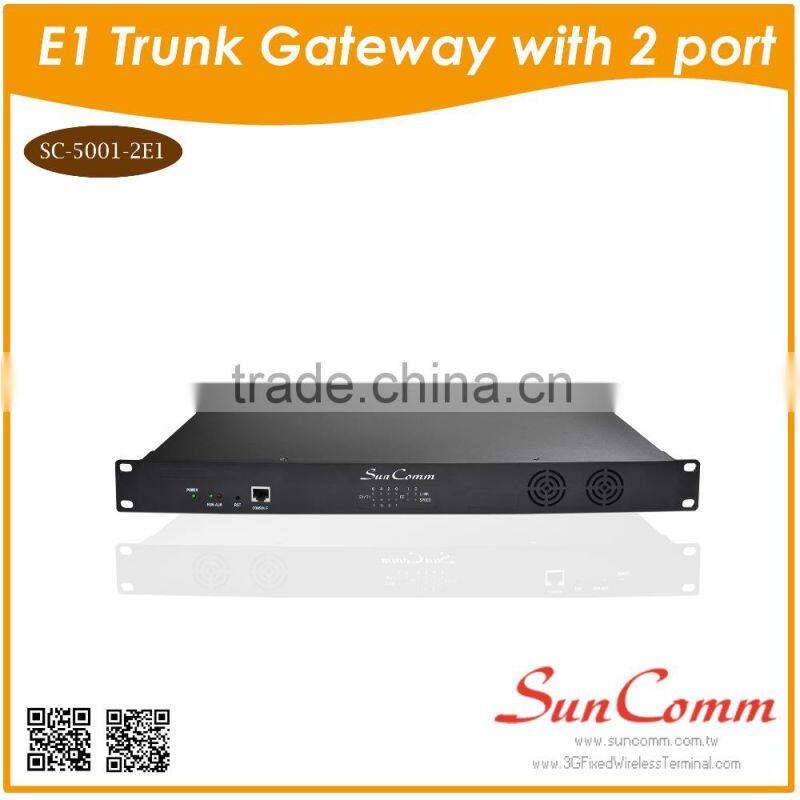

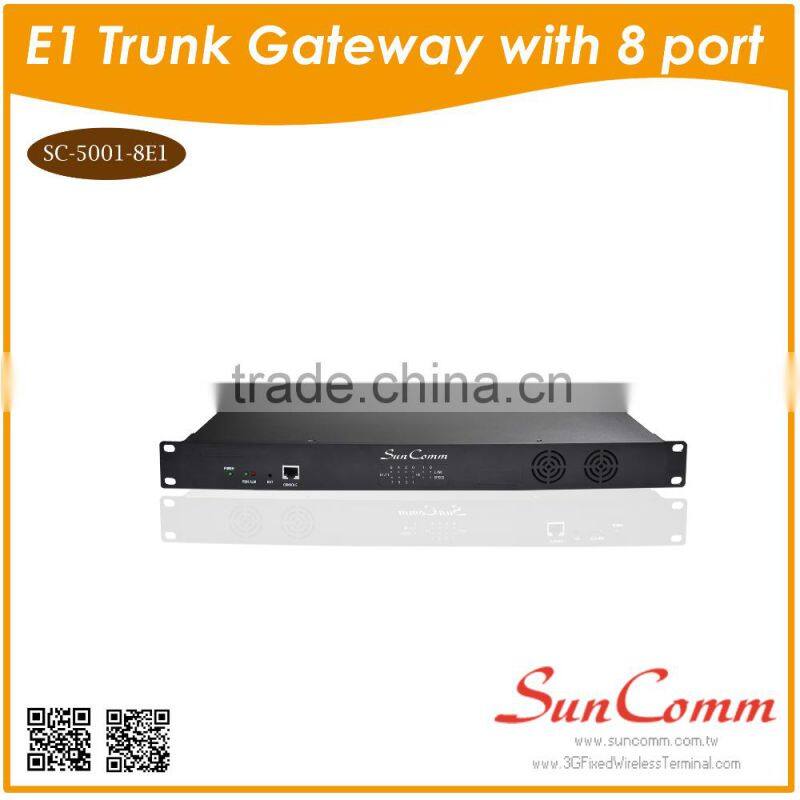

Series Model

SC-5001-1E1 , SC-5001-2E1 , SC-5001-4E1 , SC-5001-8E1 Trunk Gateway support H.323/SIP protocol

Packaging & Shipping

CE Certifications

We also have CE Certifications for SC-368W, SC-9039-3G, SC-396-GP3G/ SC-393-GP3G, SC-9068-GH3G, SCG-31/SCG-31P, SCG-4Qe/ SCG-8Qe, SC-9029-RA, SC-9079-3G

Company Information

Based on the professional team members involving in computer & communication since 2001, SunComm supplies Corded and Cordless phones; Consumer, Communication & Wireless Networking devices, including but not limited to GSM/3G VoIP Terminal, GSM/3G Gateway, Fixed Wireless Terminal (FWT/FCT), Fixed Wireless Phone (FWP/FCP), 3G WCDMA Cordless Phone, Cellular/Telular Phone, 4G LTE Outdoor Indoor CPE, WIFI IP Phone, Wifi ATA, Wifi AP Router etc.

More than 15 years’ experience in OEM/ ODM manufacturing, Marketing & exporting, which ensure SunComm can always follow closely the latest technology and match market requirement. Our markets include USA, Latin American, Europe, South East Asia & Middle East Asia, Africa etc.

SunComm believe that cooperation and creation is the only way toward the win-win success with customers. Most products have been registered in target markets by SunComm or customers locally.

We’ve established great communications & cooperation with many business partners in the world. SunComm Technology Co., Ltd. was founded in Taiwan in 2001. SunComm (SHENZHEN) TECHNOLOGY CO., LTD. was established in Shenzhen. We have provided effective service and technical support from Taiwan and China. It is our solid mission to dedicate ourselves to the Highest Quality, Effective Service and Cost Saving Products to business partner to establish a reliable and fruitful long-term cooperation.

.tw

Tel: +886-2-8226-9569 #115
Fax: +886-2-8226-9733

14F-8, No. 2, Jian-ba Rd., Zhong-he Dist., New Taipei City, Taiwan 23511
