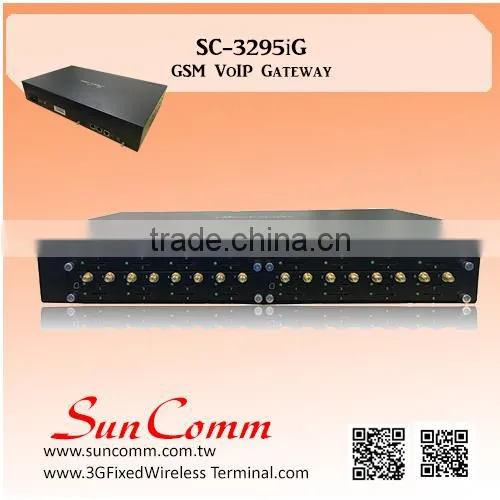

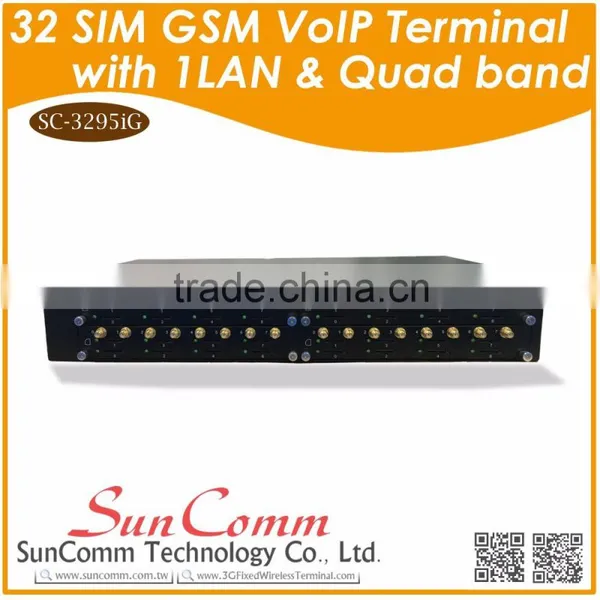

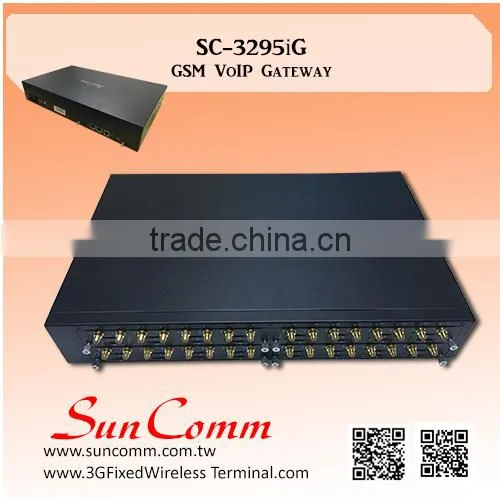

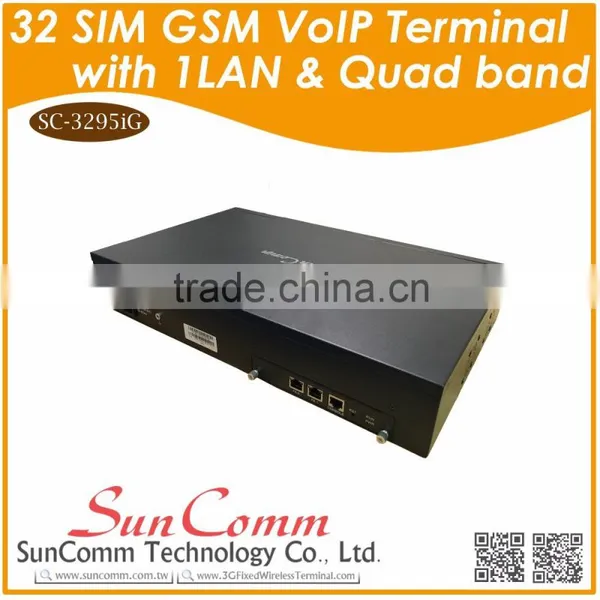

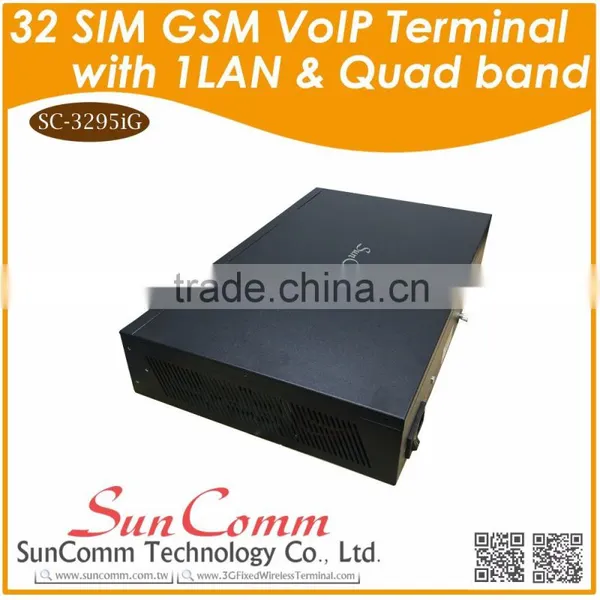

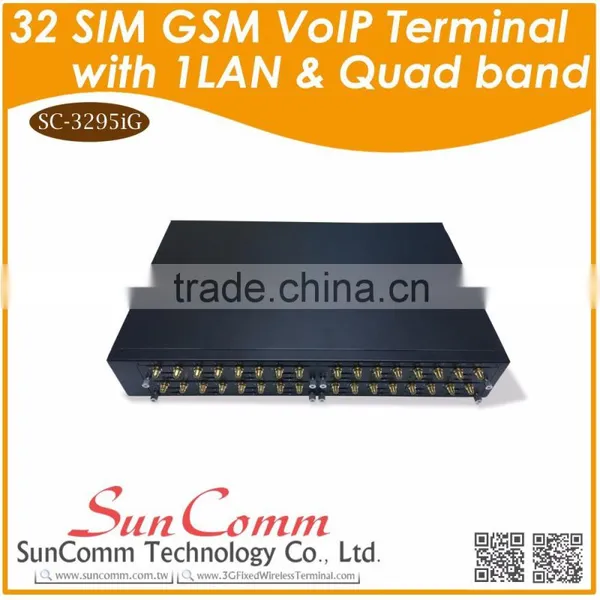

GSM VoIP Gateway SC-3295iG 1 LAN with 32 SIM channel
SC-3295iG with 32 SIM is an effective device for GSM/CDMA - SIP conversion for GSM/CDMA termination & GSM/CDMA origination. Up to 16/ 32 SIM card can operate simultaneously. They are compatible with standard SIP IP PBX, Soft switch and SIP Server for Call Center or ISP use.
Advantage |
SNTP |
PIN modified | |
Ping/ Tracer on web | |
SMS/SMSC/USSD, support API | |
Manually /automatically select operators | |
BCCH (Lock frequency) | |
Syslog way output tracking information | |
Voice: |
G.711A/U law, G.723.1, G.729A/B |
Silence Suppression & Detection | |
Comfort Noise Generation (CNG) | |
Voice Activity Detection (VAD) | |
Echo Cancellation (G.168) | |
Adaptive (Dynamic) Jitter Buffer | |
Call Progress Tone Generation | |
Programmable Gain Control | |
SIP: |
By port registration |
By device registration (share account) | |
Support IP trunk and IP trunk group | |
Two 183 mode | |
Response code switch | |
All ports busy, redirected to other device | |
Mobile: |
Quad band: 850/900/1800/1900MHz |
DTMF mode: Signal/RFC2833 | |
SMS/SMSC/USSD | |
Provide API interface | |
Call duration limitation | |
One/two stage dial-up, Hotline | |
Polarity Reversal | |
Custom IVR | |
PIN and IMEI modified | |
Carrier select | |
CLIR | |
BCCH | |
Maintenance & Upgrade: |
Web based configuration |
Telnet configuration | |
Configure backup/restore | |
Firmware upgrade by TFTP | |
Web & telnet login password modify; Factory reset | |
Output CDR/Tracking news by syslog | |
Ping and Tracer test on web | |
Traffic statistics: TCP,UDP,RTP | |
VoIP call statistics | |
PSTN call statistics: ASR,ACD,PDD | |
Network Features: |
Ethernet Interface: 1 x LAN*10/100M Base-Tx RJ45 |
Management Interface: 1 Console RFC2833 | |
Static IP, PPPoE, DHCP | |
Network Protocol Support: IP,TCP, UDP,TFTP, FTP, RTP, RTCP, ARP,RARP,ICMP, Ping, NTP, SNTP, Http, DNS | |
NAT traversal: Static NAT, STUN | |
Static/dynamic ARP request | |
VLAN | |
Physical & Environments: |
Power: 220 VAC; Power consumption:80W |
Temperature (operation): 0 ℃ ~ 45 ℃; (storage): -20 ℃ ~80 ℃; | |
Operation Humidity: 10%-90%; no condensation; | |
Dimension: 440*330*66mm ;Weight: 6.4kg |
1. SC-0895iG with 8 SIM (Compact case)
2. SC-1695iG with 16 SIM (1U, 19” rack mounting)
3. SC-3295iG with 32 SIM (1U, 19” rack mounting)
We also have CE Certifications/ FCC ID for
SC-9039-3G, SCG-4QE/ SCG-8QE, SC-368W, SC-396-GP3G/ SC-393-GP3G
SC-9079-3G, SC-9068-GH3G
Based on the professional team members involving in computer & communication since 2001, SunComm supplies Corded and Cordless phones; Consumer, Communication & Wireless Networking devices, including but not limited to GSM/3G VoIP Terminal, GSM/3G Gateway, Fixed Wireless Terminal (FWT/FCT), Fixed Wireless Phone (FWP/FCP), 3G WCDMA Cordless Phone, Cellular/Telular Phone, 4G LTE Outdoor Indoor CPE, WIFI IP Phone, Wifi ATA, Wifi AP Router etc.
More than 15 years’ experience in OEM/ ODM manufacturing, Marketing & exporting, which ensure SunComm can always follow closely the latest technology and match market requirement. Our markets include USA, Latin American, Europe, South East Asia & Middle East Asia, Africa etc.
SunComm believe that cooperation and creation is the only way toward the win-win success with customers. Most products have been registered in target markets by SunComm or customers locally.
We’ve established great communications & cooperation with many business partners in the world. SunComm Technology Co., Ltd. was founded in Taiwan in 2001. SunComm (SHENZHEN) TECHNOLOGY CO., LTD. was established in Shenzhen. We have provided effective service and technical support from Taiwan and China. It is our solid mission to dedicate ourselves to the Highest Quality, Effective Service and Cost Saving Products to business partner to establish a reliable and fruitful long-term cooperation.
|
