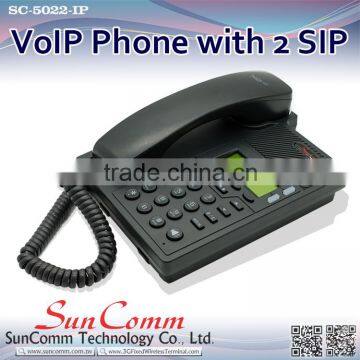

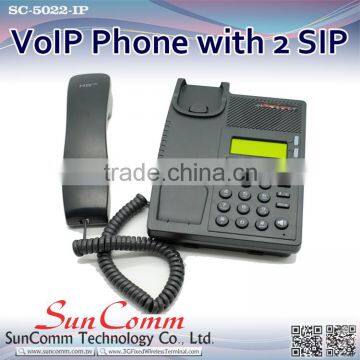

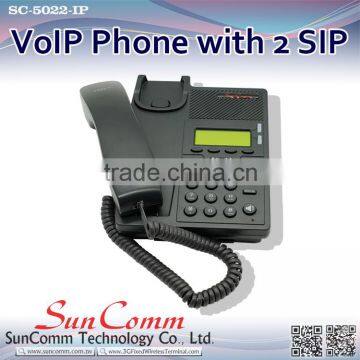

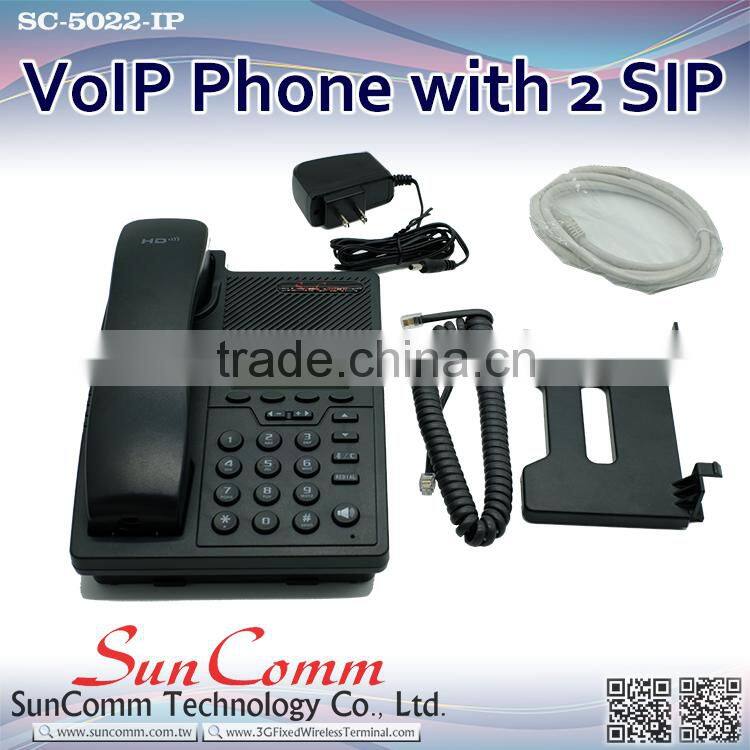

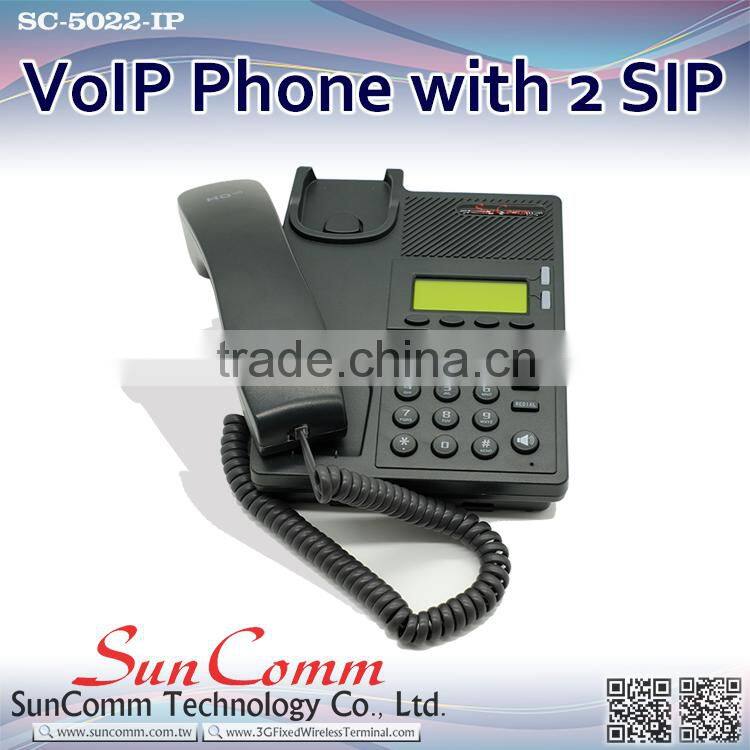

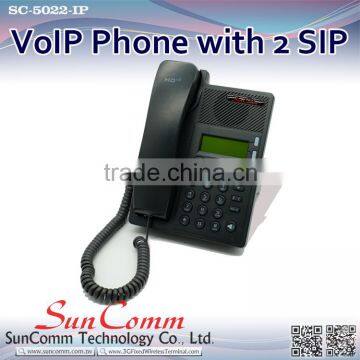

SC-5022 for business use PoE VoIP Phone with 2 SIP account

Phone Features

2 SIP accounts

Call hold, Call waiting, Call forward, Call return, Call transfer (blind/busy/ask)

Caller ID display, Redial, Mute, DND

Auto-answer, 3-way conferencing

Speed dial, SMS, Voicemail

Tone scheme, Volume control

Direct IP call without SIP proxy

Ring tone election/import/delete Black list, Hand-free indicator,

Call history: dialed/received/missed (50entries);

Soft keys programmable, Supports PC control

Multi-Language: Chinese, English, French, Russian, Italian-Polish, Spanish, Portuguese, Portuguese Brazil, Turkish

Advanced Features

4 programmable keys

XML Phone Book search and input & output

Enterprise phone book (800 entries)

LDAP phone book

IP PBX System Integration

Busy lamp field (BLF). BLF list

Bridged line appearance (BLA)

DND & Forward synchronization

Intercom, Paging, Music on hold

Call pickup, Dial Plan, Call recording Anonymous call, Anonymous call rejection

Network conference, Distinctive ring tone

Codes and Voice Features

Wideband Codec. G.722

Narrowband codec: G.711 μ/a, G.723.1 G.726, G.729ab,iL BC

VAD, CNG, AEC, AGC

Full-duplex

Security

LLDP, VPN (L2TP), 802.1x

Transport Layer Security (TLS)

Digest authentication using MD5/MD5-Sess

Secure configuration file via AES encryption

Phone lock for personal privacy protection

Admin/User 2-level configuration mode

Network Features

SIPv1 (RFC2543), v2 (RFC 3261)

DNS SRV (RFC3263); IPv6

NAT Traversal: STUN mode

DTMF: In-Band, RFC2833, SIP Info, Auto HTTP/HTTPS Web Management

IP Assignment: Static/DHCP/PPPoE

Bridge/Router mode for PC port

TFTP/DHCP/PPPoE Client

DNS client, NAT/DHCP server

Management

Auto-provision via PNP; SNMP V1/2;

FTP/TFTP/HTTP/HTTPS; TR069 optional

Configuration: browser/phone/auto-provision

Trace package and system log export

Physical Features

128*64 graphic LCD

25 keys, including 5 programmable keys

2 LEDs: 2" account lights

1*RJ9 headset port (Option)

2xRJ45 10/100M Ethernet ports

Power adapter: AC 100-240V input and DC 5W/1A output

PoE (Power over Ethernet), IEEE 802.3af, class 0

Power consumption: 2.5-3.5W

Net weight: 0.62KG

Dimension: 213*157*39mm

Operating humidity: 10-95%

Storage temperature: up to 60°C

Package Features

Qty/CTN: 10 PCS

N.W/CTN: 6.2KG

G.W/CTN:  8.5KG

Carton Meas: 430x345x250mm
