SIP Industrial Telephone/Intercom/Broadcast PCB Board

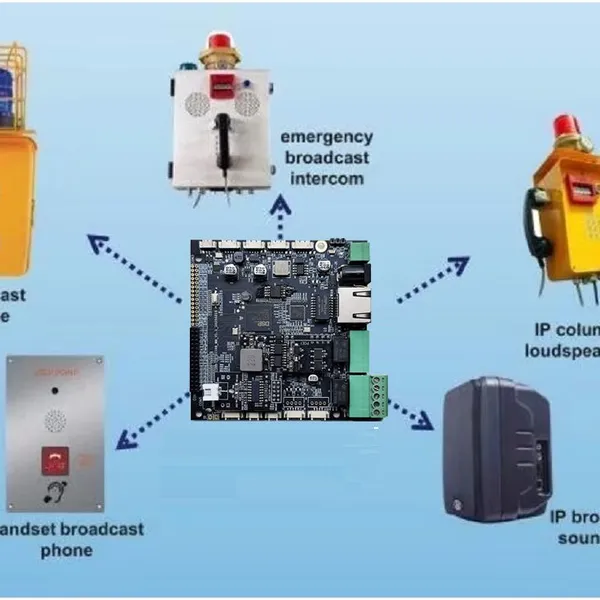

This series PCB Board can be used for SIP Industrial PHONE | Intercom PHONE | Dooor PHONE | SIP Station | Access Control | IP Video PHONE | SIP Speaker | IP Paging Gateway | IP Console PHONE | Network Ceiliing Speaker etc..
This product can be widely used in Public emergency places such as Metros | Railways | Express way | Mines | Oil rigs | Tunnels | Marine | Commerce | Education and so on
Specification
1. Working at -40ºC-+70ºC hazardous pure industrial environment
2. 4 ~100 I/O output and imput for external control
3. Support WAN/LAN, Duplex Intercom,Echo Cancellation,Upgrade Online
4. Webpage upto 50+ IP station group/direct call without Servier
5. Adjustable sound volume
6. IP address Sound reporting or LCD display
7. Door phone RFID card reader
8. Boardcast amplifier for paging option
9. CCTV trigger available
10. SIP 2.0 and private protocol

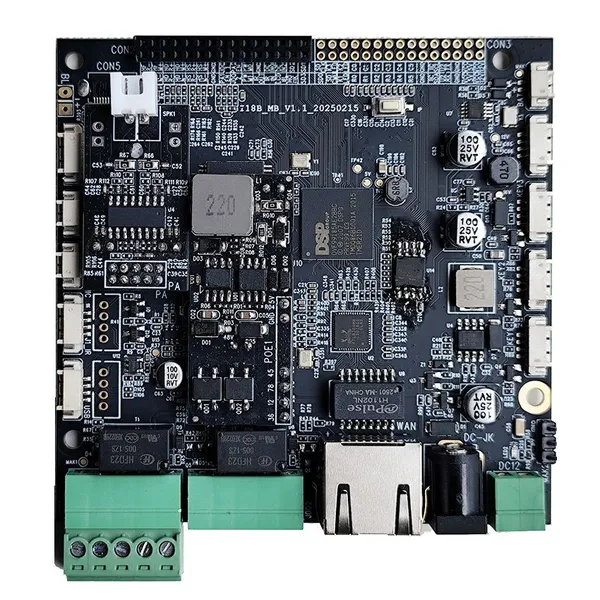

PCB Features
1. SIP 2.0 and IMS platform operators, the interconnection between mainstream manufacturers IP PBX.
2. High-end chips: the embedded DSGP chip, stable and reliable.
3. Call flexible: support hands-free, handset, headset operating mode.
4. Voice interface: hands-free, handset, headset, audio interfaces and an external amplifier interface.
5. Power supply: DC5V-15V, compatible POE IP PBX power supply mode (POE 802.3af Classl 48V)
6. Alarm Interface: Built-in three-way input detecting short circuit, output short-circuit three-way.
7. Telecom-level voice: support full-duplex speakerphone, providing Telecom level voice quality.
8. On board Amplifier: Built-in 3W / 4Ω digital amplifier, drive loudspeakers directly.
9. Remote adjust volume: support the console remote to adjust the volume.
10. Multiple key options: support dial any telephone number, the numeric keypad and function keys, speed dial keys, editing keys.
11. Status indicate: support registration, call status indication.
12. Multi-party call: supports three-way calling or multiparty call (multiparty conferencing).
13. MIC Mute: Support IPPBX broadcast voice call, local MIC automatically mute to avoid howling.
14. Warning lights drive: support indicator lights for coming calls and taking.

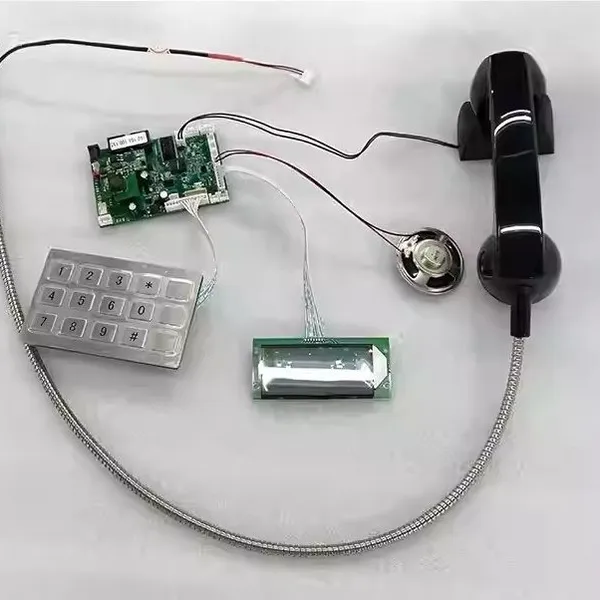

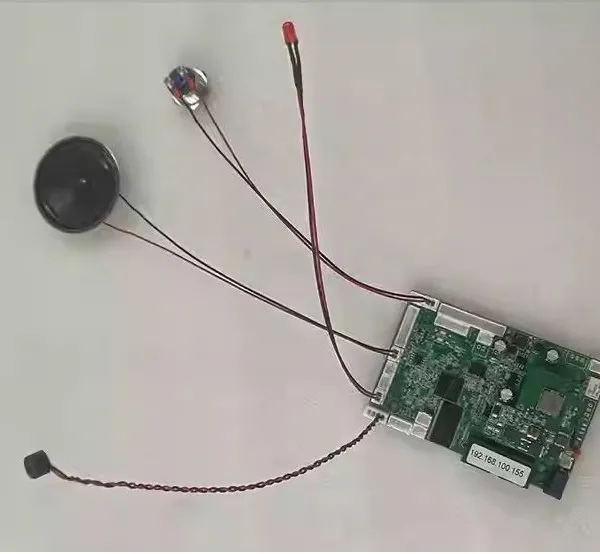

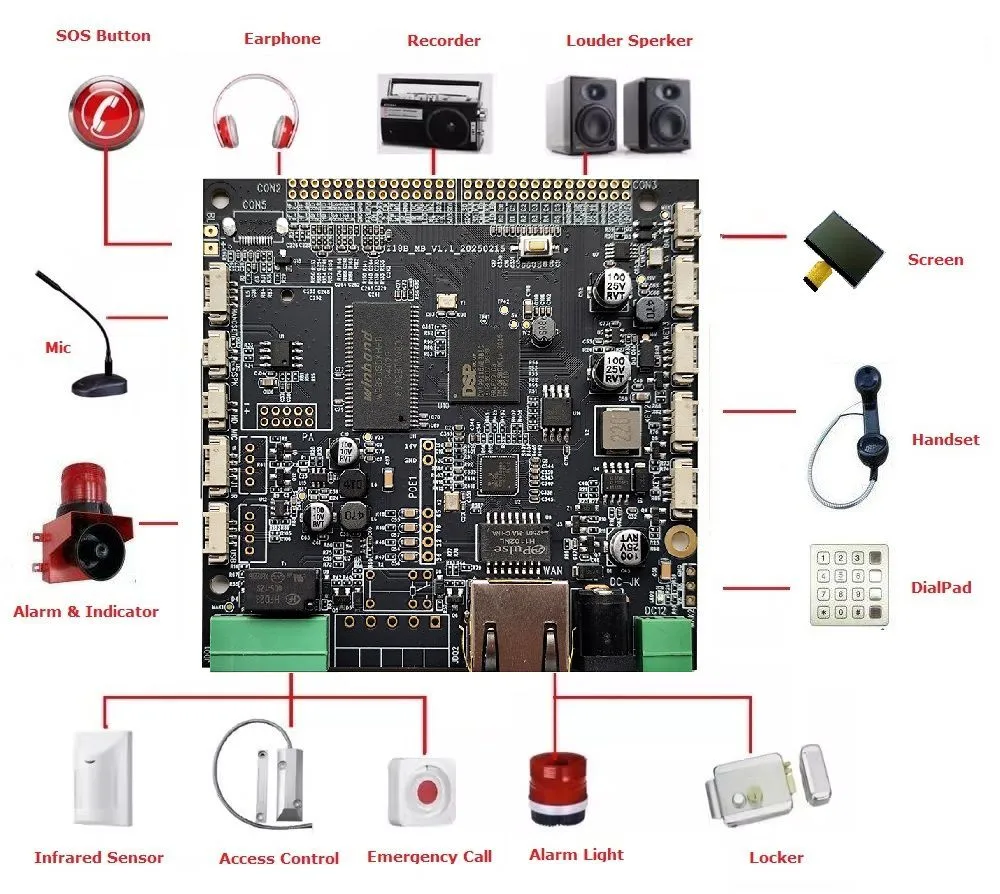

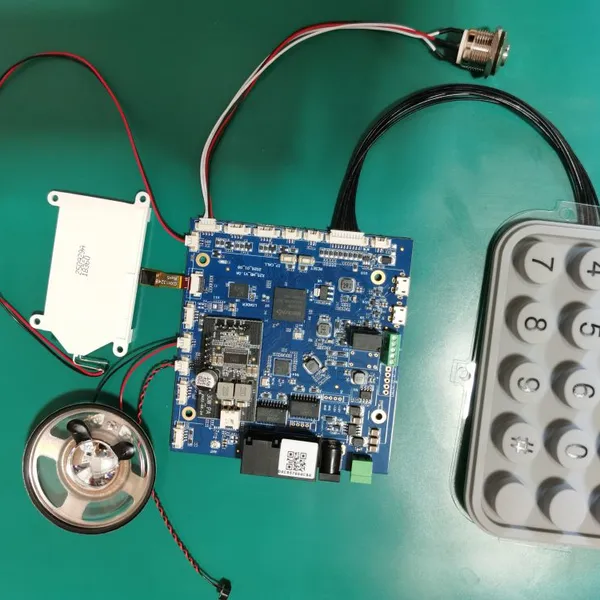

Interface
Button : 3 4pin (25mm)
Input : 2 10pin (254mm)
Handset : 1 4pin (25mm)
Number keypad : 1 10pin (25mm)
LCD : 1 10pin (25mm) SPI
MIC : 1 2pin (25mm)
Speaker : 1 2pin (25mm) power: 3W
Reset button : 1
IP check button : 1
