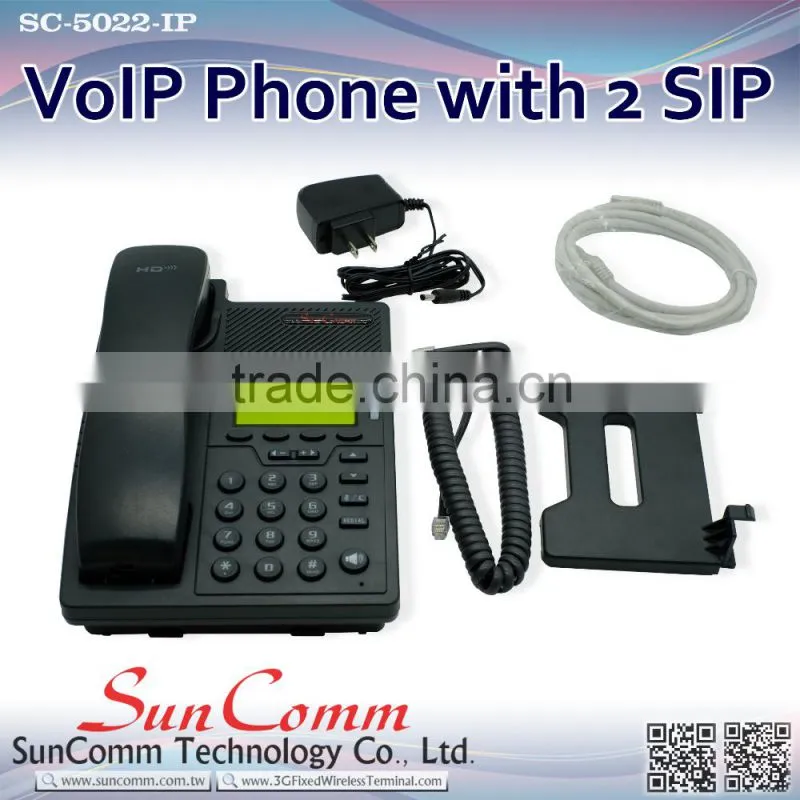

SC-5022 Auto provision IP Phone with 2 SIP accounts, 4 program key, PoE 1WAN,1LAN

2 SIP accounts

Call hold, Call waiting, Call forward, Call return, Call transfer
 (blind/busy/ask)

Caller ID display, Redial, Mute, DND

Auto-answer, 3-way conferencing

Speed dial, SMS, Voicemail

Tone scheme, Volume control

Direct IP call without SIP proxy

Ring tone election/import/delete Black list, Hand-free indicator,

Call history: dialed/received/missed (50entries);

Soft keys programmable, Supports PC control

Multi-Language: Chinese, English, French, Russian, Italian-Polish,

 Spanish, Portuguese, Portuguese Brazil, Turkish

4 programmable keys


XML Phone Book search and input & output


Enterprise phone book (800 entries)


LDAP phone book

Busy lamp field (BLF). BLF list

Bridged line appearance (BLA)

DND & Forward synchronization

Intercom, Paging, Music on hold

Call pickup, Dial Plan, Call recording Anonymous call, Anonymous call rejection

Network conference, Distinctive ring tone

Wideband Codec. G.722

Narrowband codec: G.711 μ/a, G.723.1 G.726, G.729ab,iL BC

VAD, CNG, AEC, AGC

Full-duplex

LLDP, VPN (L2TP), 802.1x

Transport Layer Security (TLS)

Digest authentication using MD5/MD5-Sess

Secure configuration file via AES encryption

Phone lock for personal privacy protection

Admin/User 2-level configuration mode

SIPv1 (RFC2543), v2 (RFC 3261)

DNS SRV (RFC3263); IPv6

NAT Traversal: STUN mode

DTMF: In-Band, RFC2833, SIP Info, Auto HTTP/HTTPS Web
  Management

IP Assignment: Static/DHCP/PPPoE

Bridge/Router mode for PC port

TFTP/DHCP/PPPoE Client

DNS client, NAT/DHCP server

Auto-provision via PNP; SNMP V1/2;

FTP/TFTP/HTTP/HTTPS; TR069 optional

Configuration: browser/phone/auto-provision

Trace package and system log export

128x64 graphic LCD

25 keys, including 5 programmable keys

2 LEDs: 2" account lights

1xRJ9 headset port (Option)

2xRJ45 10/100M Ethernet ports

Power adapter: AC 100-240V input and DC 5W/1A output

PoE (Power over Ethernet), IEEE 802.3af, class 0

Power consumption: 2.5-3.5W

Net weight: 0.62KG

Dimension: 213 x 157 x 39mm

Operating humidity: 10-95%

Storage temperature: up to 60°C

Qty/CTN: 10 PCS

N.W/CTN: 6.2KG

G.W/CTN: 8.5KG

Carton Meas: 430 x 345 x 250 mm
