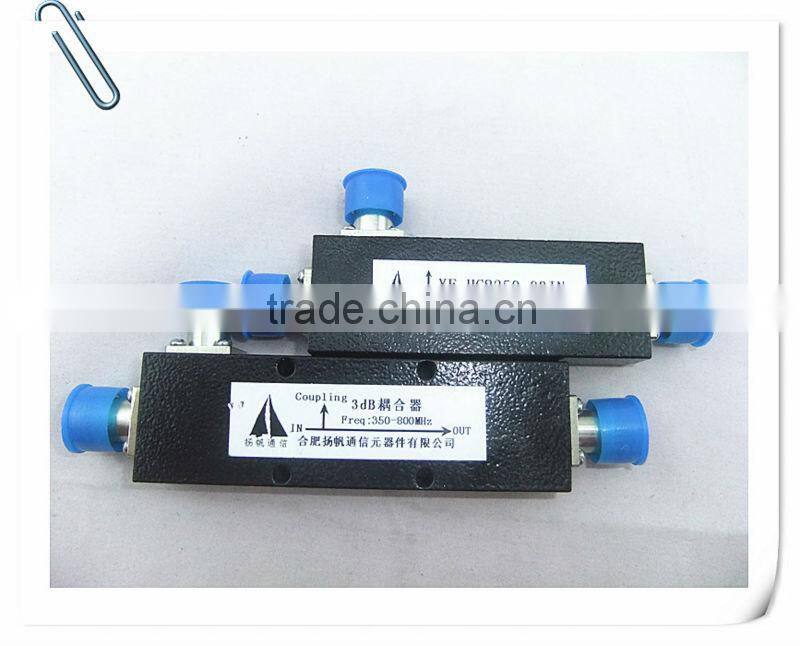

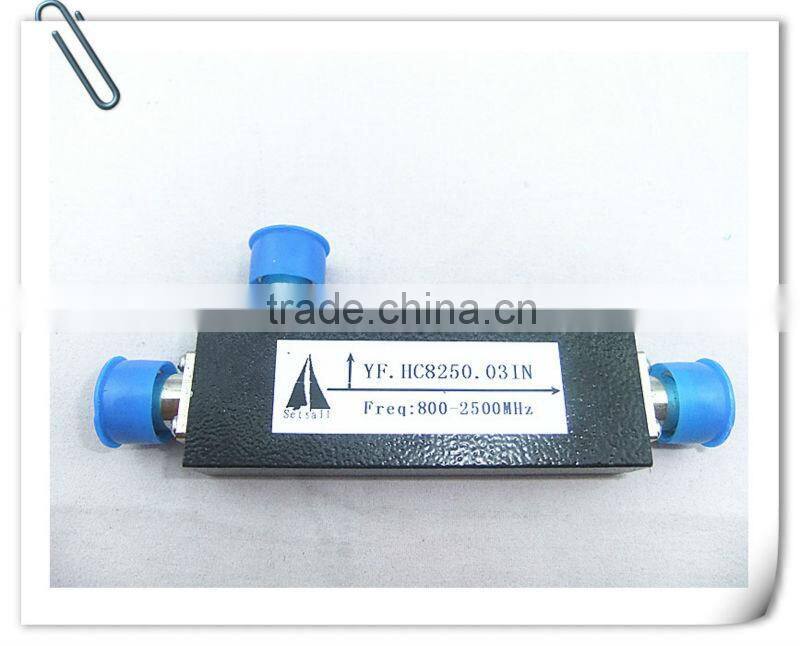

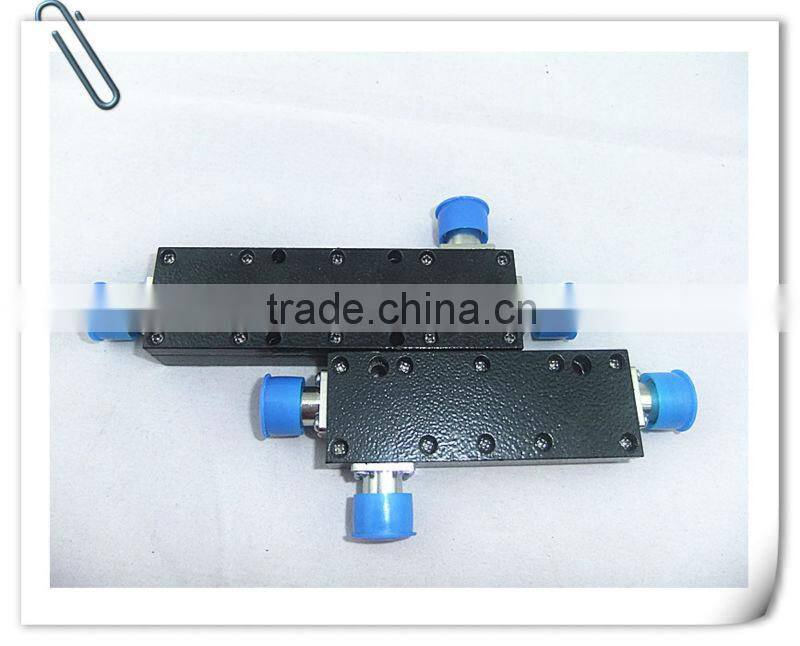

670-2700/800-2500MHz Cavity Directional Coupler 200W 3dB N-F
- 500 Piece / Pieces per Month
- Shanghai/Shenzhen/Ningbo
- T/T Credit Card
- 200W 400-430/350-1000/350-520MHz RF Directional Coupler 20dB N-F
- 350-2700MHz RF Cavity Directional Coupler N-F 200W 10dB
- 200W 800-2700MHz Coxial Directional Coupler N-F
- 15dB 200W 700-3500MHz RF Directional Coupler(N-F)
- RF 700-3500MHz Directional Coupler 200W 10dB (N-F)
- 200W RF 6dB Directional Coupler 670-2700MHz (N-F)
Product Details
Place of Origin: | Anhui, China | Brand Name: | SETSAIL | Model Number: | YF.HC8250.03IN |
Packaging Details
1. Standard Export Packing Cartons
2. Dimensions of Carton: 450mm*350mm*340mm
3. Quantity in each Carton: 50pcs
4. Gross Weight of Each Carton:20kg
Product Description
200W 3dB 670-2700/800-2500MHz Cavity Directional Coupler N-F ,Directional Coupler,High Quality Directional Coupler,Coupler,Cavity Directional Coupler
Model | YF.HC8250.03IN |
Coupling(dB) | 3±0.8dB |
Insertion Loss(dB) | 0.5dB |
Frequency(MHz) | 800-2500 |
Isolation(dB) | 30dB |
VSWR | ≤1.25:1 |
Power Capacity(w) | 200W |
Impedance(ohm) | 50 |
RF Connector | N-F |
Temperature(deg) | -35°C~+70°C |
Color | Black-plated |
IP Grade | IP60 or IP65 |
Notes: the work temperature, the size of the bottom plate and the installation way can be adjusted according to the customers' detailed requirements
Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
