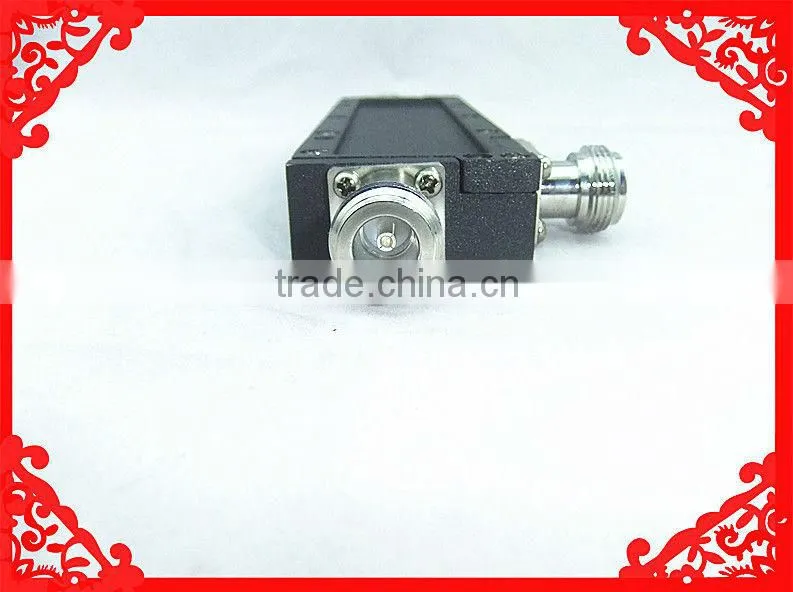

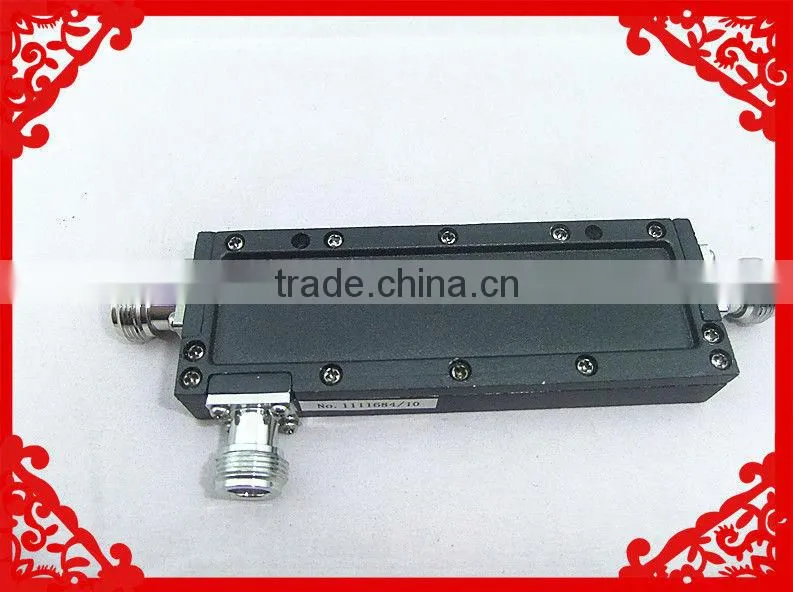

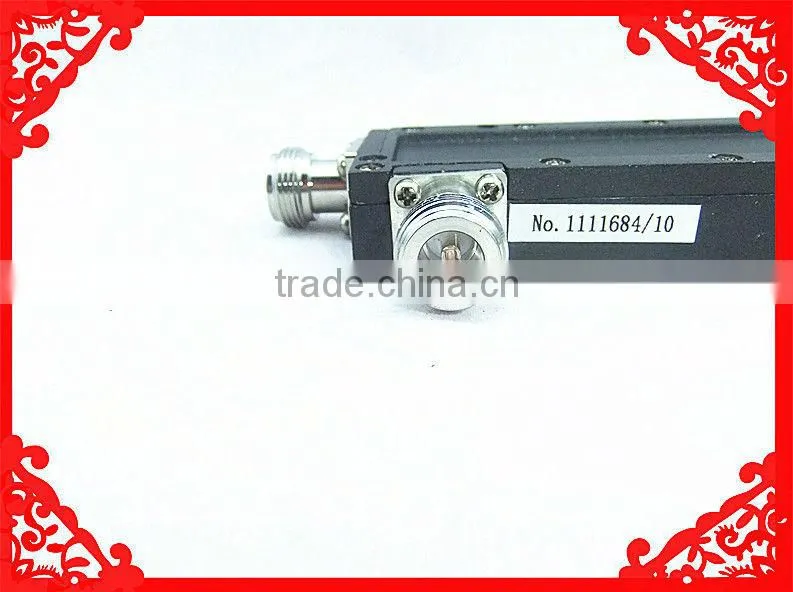

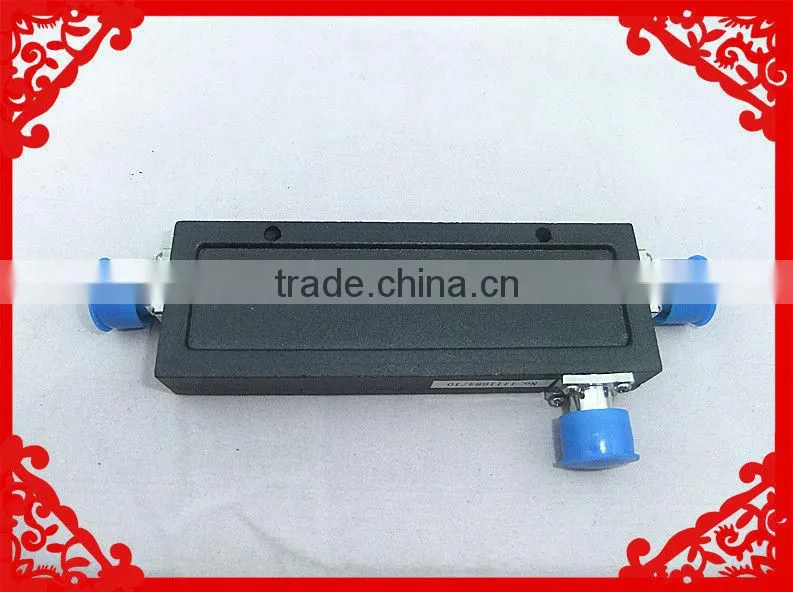

Help Center200W 400-430/350-1000/350-520MHz RF Directional Coupler 20dB N-F
Related Products
-
350-2700MHz RF Cavity Directional Coupler N-F 200W 10dBNegotiableMOQ: 30 Pieces -
200W 800-2700MHz Coxial Directional Coupler N-FNegotiableMOQ: 30 Pieces
-
15dB 200W 700-3500MHz RF Directional Coupler(N-F)NegotiableMOQ: 30 Pieces
-
RF 700-3500MHz Directional Coupler 200W 10dB (N-F)US$ 1 - 15MOQ: 30 Pieces
-
200W RF 6dB Directional Coupler 670-2700MHz (N-F)US$ 2 - 8MOQ: 30 Pieces
200W 20dB 400-430/350-1000/350-520MHz RF Cavity Directional Coupler N-F ,Directional Coupler,High Quality Directional Coupler,Coupler,Cavity Directional Coupler
Model |
YF-DC-3510- 06-NF |
YF-DC-3510- 10-NF |
YF-3DC-510- 15-NF |
YF-DC-3510- 20-NF |
YF-DC-3510- 30-NF |
|||
Frequency(MHz) |
400-430MHz/ 350-1000MHz/350-520MHz |
|||||||
Coupling(dB) |
6±0.6 |
10±0.8 |
15±0.9 |
20±1.0 |
30±1.2 |
|||
Insertion Loss(dB) |
1.75 |
0.8 |
0.3 |
0.3 |
0.3 |
|||
VSWR |
1.25:1 |
|||||||
Power Capacity(W) |
200 |
|||||||
Directivity(dB) |
20 |
|||||||
RF Connector |
N-female or DIN(7/16)-female |
|||||||
Impedance(ohm) |
50 |
|||||||
Color |
Black-plated |
|||||||
Temperature(deg) |
-35~+80 |
|||||||
Application |
Indoor |
|||||||
Weight(kg) |
0.20 |
|||||||
Notes: the work temperature, the size of the bottom plate and the installation way can be adjusted according to the customers' detailed requirements
Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
