Specifications
1.We are Manufacturer of Directional Coupler2.OEM Service is available
3.1000pcs in stock
4.With resonable price

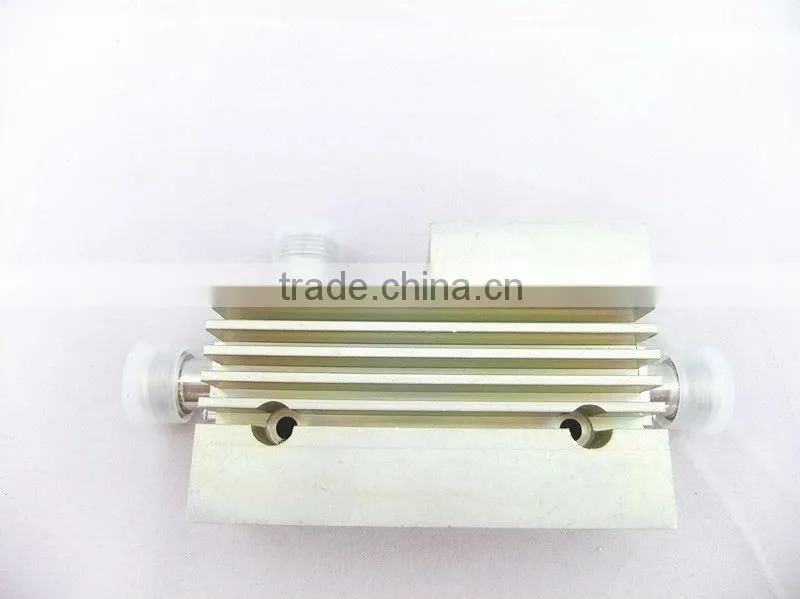

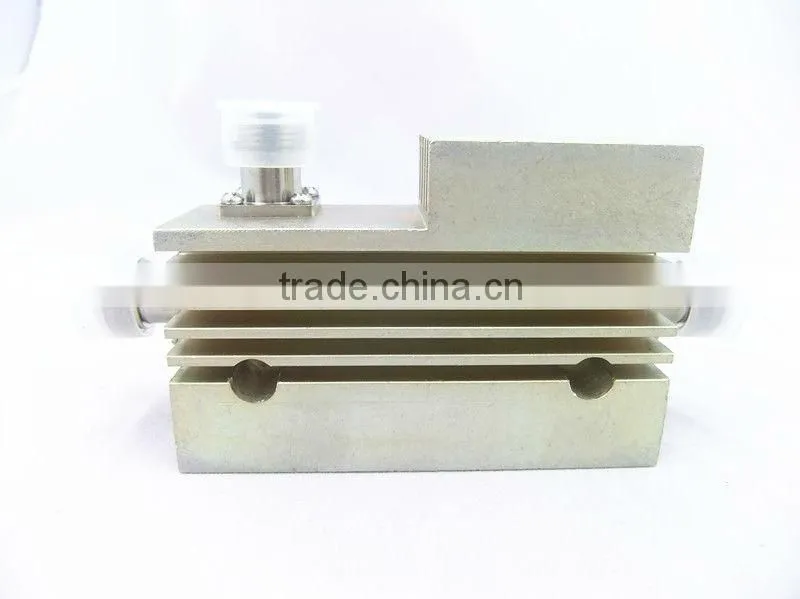

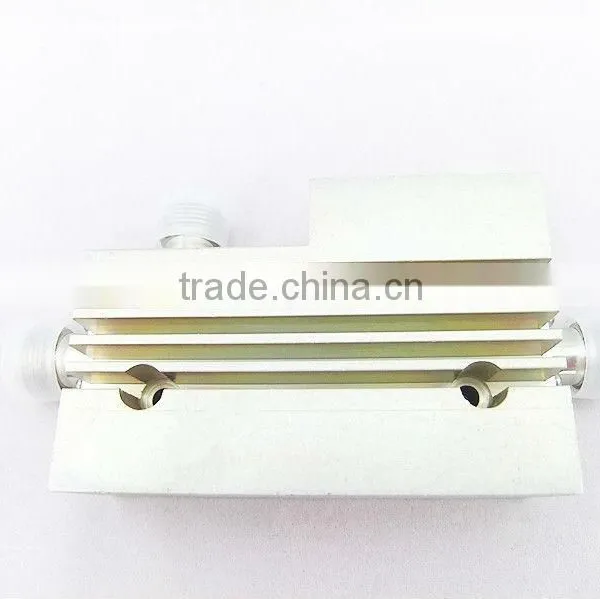

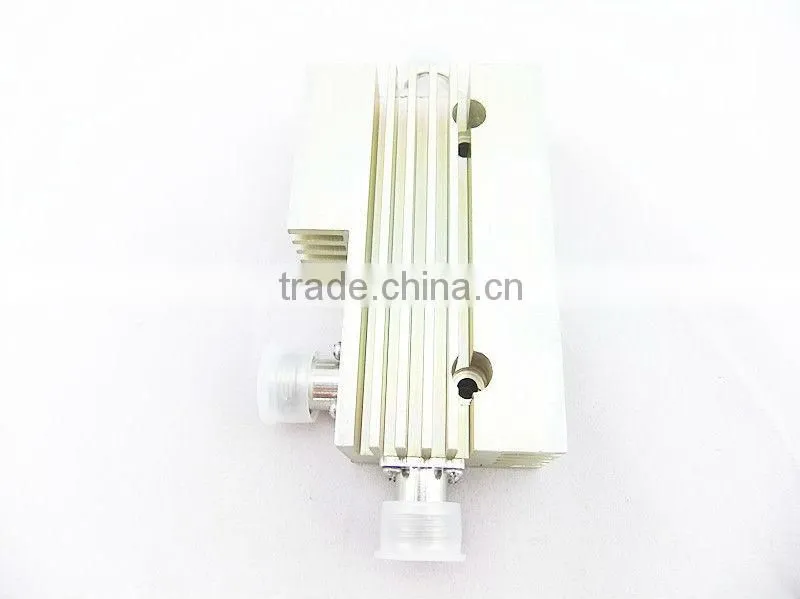

200W 800-2700MHz Coxial Directional Coupler N-F , Directional Coupler ,High quality Directional Coupler,Coaxial Directioanl Coupler
Technical Specifications for Directional Coupler :
Product Name |
Coaxial Directional Coupler |
Model |
YFTX-DC-827-15-NF |
Frequency(MHz) |
800-2700 |
Coupling(dB) |
15±1.2 |
Insertion Loss(dB) |
0.45 |
Isolation(dB) |
32 |
VSWR |
≤1.3:1 |
PIM3 |
≤-120dBc |
Power Capacity(W) |
200 |
RF Connector |
N-female |
Impedance(ohm) |
50 |
Relative Humidity |
5%-95% |
Color |
Black-plated |
Temperature(deg) |
-40~+80 |
Used in IBS and BTS projects
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems
