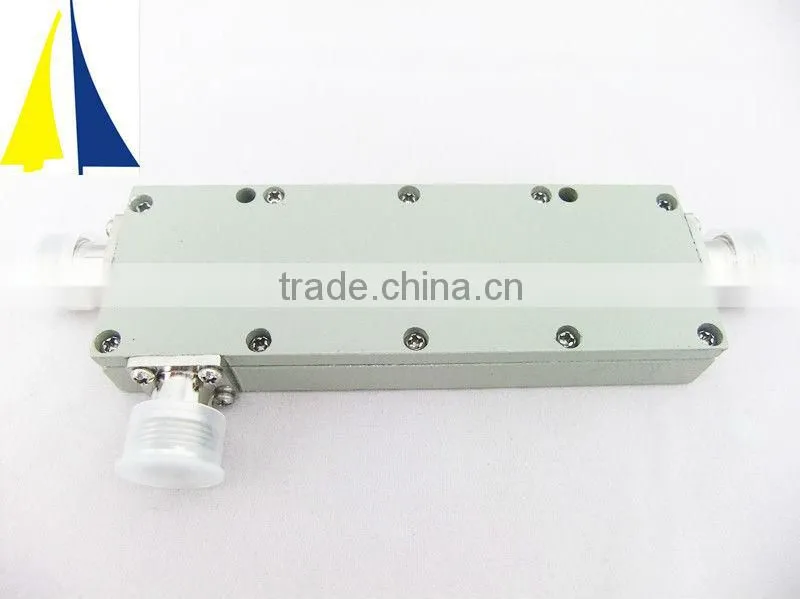

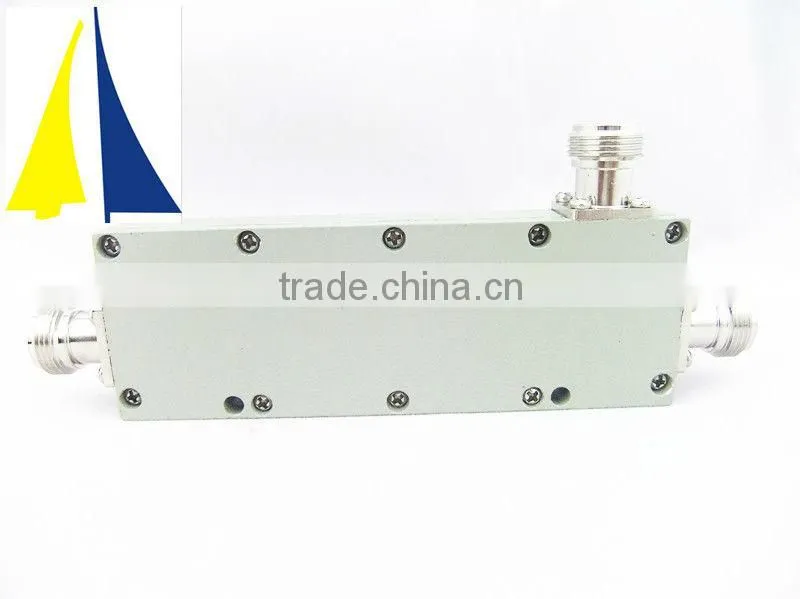

Help CenterRF 700-3500MHz Directional Coupler 200W 10dB (N-F)
Related Products
-
200W RF 6dB Directional Coupler 670-2700MHz (N-F)US$ 2 - 8MOQ: 30 Pieces -
200W 20dB Directional Coupler 670-2700MHz N-FUS$ 2 - 7MOQ: 30 Pieces
-
200W 15dB RF Directional Coupler 800-2500MHz N-FNegotiableMOQ: 30 Pieces
-
200W 10dB Cavity Directional Coupler 800-2500MHz N-FUS$ 2 - 8MOQ: 30 Pieces
-
RF 690-2700MHz 6dB Cavity Directional Coupler N-F(IBS Telecommunication)NegotiableMOQ: 30 Pieces
RF 200W 10dB 700-3500MHz Directional Coupler(N-F) Directional Coupler,High Quality Directional Coupler,rf Coupler,10dB Directional Coupler,Technical Specifications for Directional Coupler
Model |
YF.CP7350.10N |
Coupling(dB) |
10±1.0dB |
Insertion Loss(dB) |
0.8dB |
Isolation(dB) |
20dB |
VSWR |
≤1.25:1 |
Power Capacity(w) |
200W |
Impedance(ohm) |
50 |
RF Connector |
N-F |
Temperature(deg) |
-40°C~+80°C |
RF connector |
N-Female |
Color |
Silvery-White plated |
IP Grade |
IP60 or IP65
|
Notes: the work temperature, the size of the bottom plate and the installation way can be adjusted according to the customers' detailed requirements
Related Products:
Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
