2400-2483 MHz Omnidirectional Fiberglass Antenna
AMXF-2400-12
Feature:
Exquisite appearance
Good impact resistance,waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain,low standing wave,strong anti-interference ability
Application:
2.4GHz WLAN system
Wi-Fi ISM system
Point-to-multipoint system
|
AMXF-2400-12 Electrical Specifications | |
Frequency range(MHz) |
2400~2483 |
Bandwidth(MHz) |
83 |
Gain(dBi) |
12 |
Half-power beam width(°) |
H:360 V:6 |
VSWR |
≤1.5 |
Input Impedance(Ω) |
50 |
Polarization |
Vertical, Linear |
Maximum input power(W) |
100 |
Lightning protection |
DC Ground |
Input connector type |
N Female or Requested |
Mechanical Specifications | |
Dimensions (mm) |
Φ20*1020 |
Antenna weight(kg) |
0.54 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |
Radome color |
Gray or White or others |
Radome Material |
Fiberglass |
Waterproof Standard |
IP65/ IP67 |
Mounting way |
Wall/ Pole-holding |
Mounting hardware(mm) |
35-50 |
Welcome to Ameison Communication Equipment Co.,Ltd, we are leading antenna manufacturer in China.

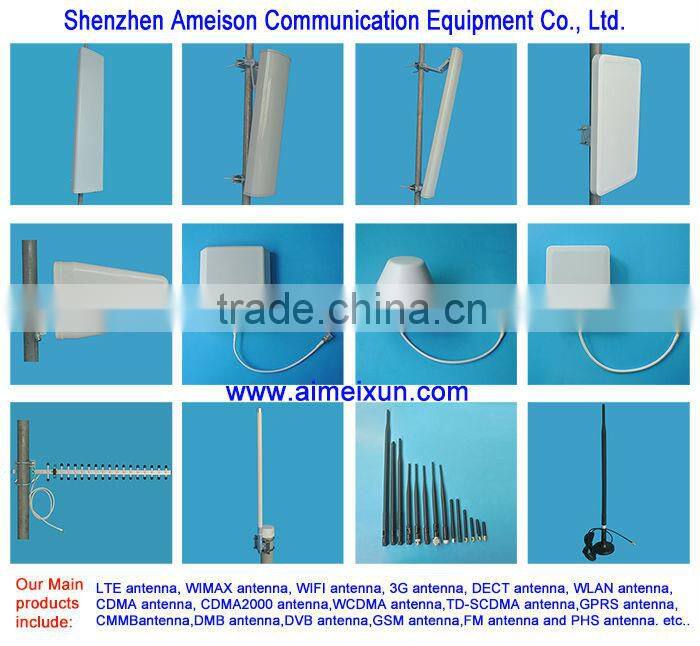

Ameison Antennas have been working in worldwide for over 6 tears. Our antennas cover GSM, CDMA, 3G, 4G, LTE, Wifi, Wimax, Wlan, UHF TV, VHF TV, RFID, Cluster, Marine and so on. Now we have a lots of MIMO and DAS models are hot selling.
OEM is welcome. Please contact us when you need any antennas!
Ameison Antennas Factory delivers high quality antennas and solutions for the global defence, security and communications markets.
We manufacture low cost antennas for wireless networking and cellular end-user antenna applications, RFID and Defence.
your choice + our products > win-win situation
We are a manufacturer, NOT trading company.

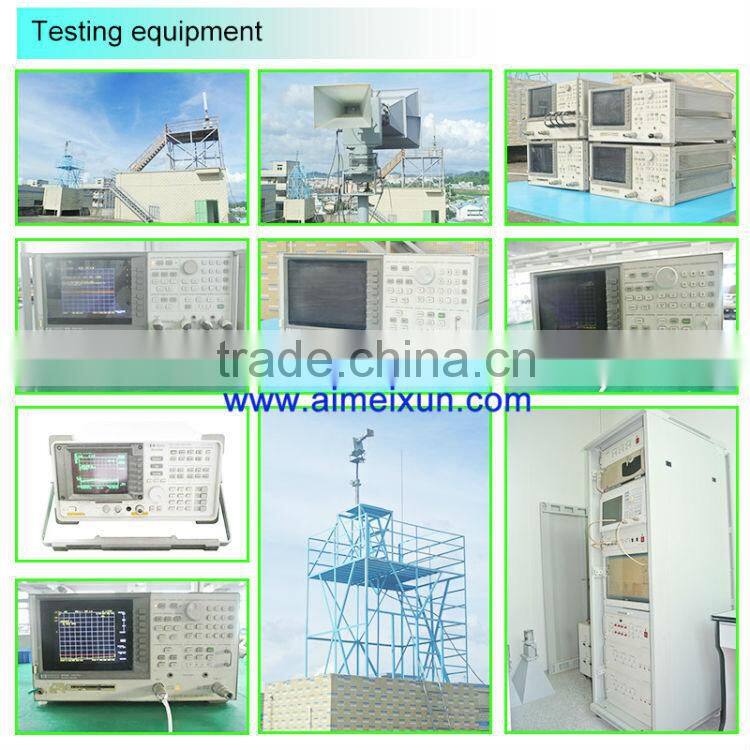

Ameison Antennas Factory is one of leading professional antenna manufacturers and only one has our own Antennas Far Field Automatic Measurement System in Shenzhen.
Your Reliable Antennas Partner in China
Tel:+86-755-8991 4346(20 lines)
Fax:+86-755-8991 4746
Factory Address: 33-2#, Fajiafu Industrial Zone, Shantangwei, Pingdi, Longgang, Shenzhen, 518117, P.R.China.
China Plant: Shenzhen Ameison Communication Equipment Co.,Ltd.
Hong Kong Head Office: FOXTENNA COMMUNICATION LIMITED.
For question most asked vist our company Official Website:
After-sale service:
1)All of our product will have been strictly test before packing
2)All of our product will be well packed before shipping
3)All of our prodect will have one year quality warranty, free maintenance with warranty period!
OEM/ODM ORDERS ARE WELCOMED BY US.
