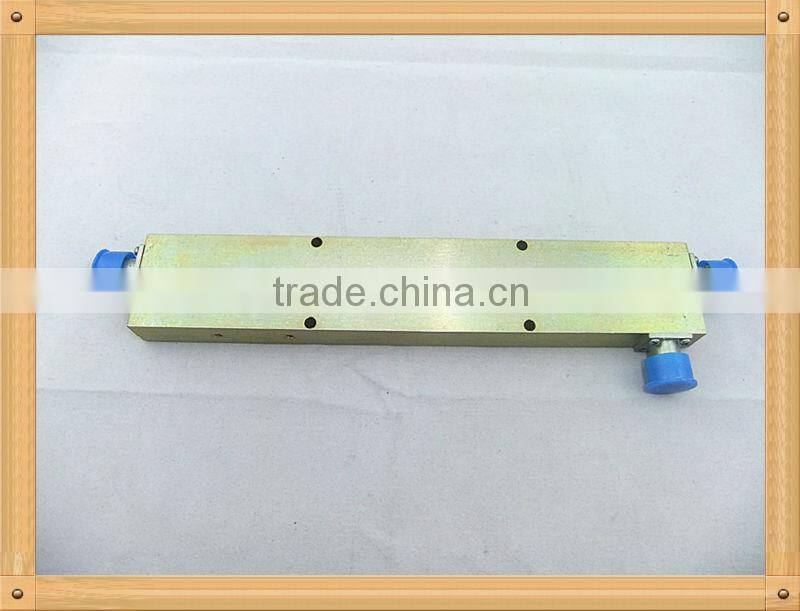

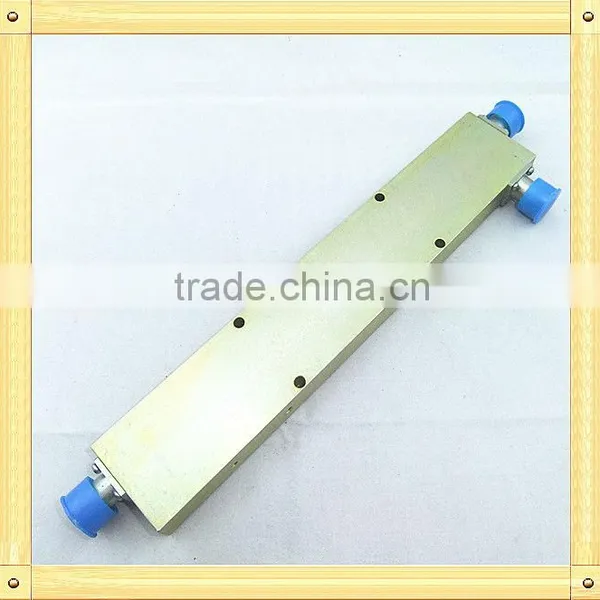

200W 10dB 350-2700/400-2500MHz RF Cavity Directional Coupler N-F ,Directional Coupler,High Quality Directional Coupler,Coupler,Cavity Directional Coupler
Notes: the work temperature, the size of the bottom plate and the installation way can be adjusted according to the customers' detailed requirements
Model | YF-DC-3527- 06-NF | YF-DC-3527- 10-NF | YF-DC-3527- 15-NF | YF-DC-3527- 20-NF | YF-DC-3527- 30-NF |
Frequency(MHz) | 350-2700MHz/400-2500MHz | ||||
Coupling(dB) | 6±1 | 10±1.2 | 15±1.5 | 20±1.5 | 30±2.0 |
Insertion Loss(dB) | 1.8 | 1.0 | 0.6 | 0.4 | 0.3 |
VSWR | 1.30:1 | ||||
Power Capacity(W) | 200 | ||||
Directivity(dB) | 18 | ||||
RF Connector | N-female or DIN(7/16)-female | ||||
Impedance(ohm) | 50 | ||||
Color | Black-plated or Silvery-white Plated | ||||
Temperature(deg) | -35~+75 | ||||
Application | Indoor | ||||
Weight(kg) | 0.365 | ||||
Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
