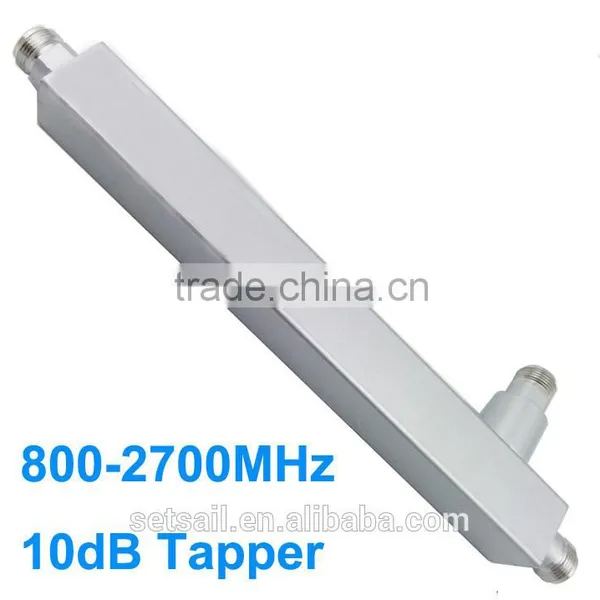

Help CenterLow Pim -150dBc 10dB Power Tapper 800-2700MHz N Type,
Related Products
-
136-174MHz rf Directional Coupler 200W N Female ConnectorUS$ 5 - 8MOQ: 1 Piece -
698-2700MHz Power Tapper 5~40dBUS$ 1 - 12MOQ: 1 Piece
-
200W RF Power Tapper N-F ConnectorNegotiableMOQ: 50 Pieces
-
200W N-F Power TapperNegotiableMOQ: 50 Pieces
-
High Quality N-Female 3db Hybrid Coupler (350-1000MHz)NegotiableMOQ: 100 Pieces
Specification for power divider:
Model |
PT-727-NF-05-50 |
PT-727-NF-06-50 |
PT-727-NF-07-50 |
PT-727-NF-08-50 |
PT-727-NF-10-50 PT-727-NF-15-50 |
PT-727-NF-20-50 PT-727-NF-30-50 |
Freq Range |
800-2500; 800-2700; 698-2700 |
|||||
Coupling |
5 |
6 |
7 |
8 |
10/15 |
20/30 |
Value(dB) |
±1.1 |
±1.1 |
±1.1 |
±1.1 |
±1.2/±1.4 |
±1.5/±1.5 |
IL dB) |
<=2.3 |
<=1.7 |
<=1.5 |
<=1.5 |
<=1.2/<=1.0 |
<=0.8/<=0.8 |
PIM(dBc) |
<=-120dBc@2*43dBm; <=-140dBc@2*43dBm; <=-150dBc@2*43dBm |
|||||
VSWR |
<=1.40 |
|||||
Impedance |
50 |
|||||
Power(W) |
200 (Type N); 500 (Type DIN) |
|||||
Connector |
N-female or 7/16 DIN-female |
|||||
Temp(deg) |
-30~+70 |
|||||
Humidity |
5%-95% |
|||||
Color |
Silvery-white or Grey |
|||||
Application |
Indoor or Outdoor, IP60 or IP65 |
|||||
Weight (kg) |
0.40 |
|||||
Each piece in opp bag, each bag in small white inner box, and then the small boxes in standard exporting carton. the products will be protected very well with paper cardboard and foam.
1. We Design, offer outline drawing and sample.
2. We could offer fast delivery As we are real factory.
3. Customer service will follow up the process of order, and prepare the shipping and custom clearance documents, they will follow up the order until you receive it.
4. Quality Guarantee: we could guarantee our quality in one year, if it is not man-made problems,we could repair or replace it for you.
Please feel free to contact me as below information
Trade manager ID: cn1512220554
Skype:maniron-mary
Phone: 0086-055165318290
Yours Mary Ma
