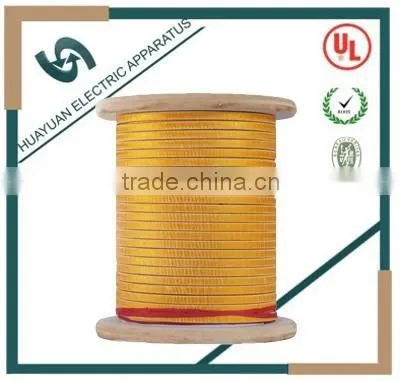

Fiber-glass covered aluminum wire
- 500 Ton / Tons per Month
- Tianjing / Shanghai / Qingdao
- T/T D/P D/A Credit Card
-
Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
-
Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
-
XTW CXWT 300V UL62 PVC FIexible Cord
-
Enameled Copper wire
-
3x185mm2 Overhead Insulated Cable
-
Service Drop Cable XLPE/PVC/PE Insulated
Product Details
| Place of Origin: | Henan, China | Brand Name: | HUAYUAN | Model Number: | GLEMLB-0.40/180 |
| Type: | Insulated | Application: | Other, Transformer,Generator | Conductor Material: | Aluminum |
| Conductor Type: | Solid | Insulation Material: | Fiberglass |
Product Description
Specifications
Conductor Diameter:Side A: 1.0-6.0mm / Side B: 2.0-16.0mm
Superiority:High breakdown voltage and good mechanical properties
Specification:
Conductor: aluminum.
Diameter: side a:1.0-6mm side b:2-16mm
Standard: IEC, NEMA, GB,JIS.
Thermal Class:130/155/180/200/220 centigrade.
Certification: SGS, UL Approved; iso9001, iso14001,RoHS Certificated.
Insulation: Polyimide film and fiberglass .
Advantages of aluminium enamelled winding wire:
1.High quality and low price.
2.High breakdown voltage.
3.Good mechanical properties and excellent adherence.
4.Professional production and sales team.
5.IEC/GB/JIS/NEMA standards approved.
6.Excellent resistance to abrasion .
Test Report
| Name | Fiber-glass covered rectangular aluminum wire | ||||
| Species | 3.700×9.000 | ||||
| Test Item | Standard | unit | Test Result | Conclusion | |
| Size | Max outside diameter | 4.150×9.470 | mm | 4.144×9.381 | OK |
| Thickness | ±0.050 | mm | 3.719 | OK | |
| width | ±0.070 | mm | 9.022 | OK | |
| Appearance | Uniform ,no missing layer, no wrinkling and cracking | No Defect | OK | ||
| Insulation Thickness | 0.34--0.40--0.45 | mm | 0.425 | OK | |
| Resistivity(20ºC) | AL≤0.02785 | Ω.mm2/m | 0.02776 | OK | |
| Adherence | No crack in the insulation after 10% elongation | No cracking | OK | ||
| Elongation | ≥17 | % | 35.5 | OK | |
| Breakdown Voltage | 2.5 | KV | 6.2,6.5,7.5,6.8 | OK | |
| Packing | Meet the export standard | Meet the export standard | OK | ||
| Final Conclusion | OK | ||||

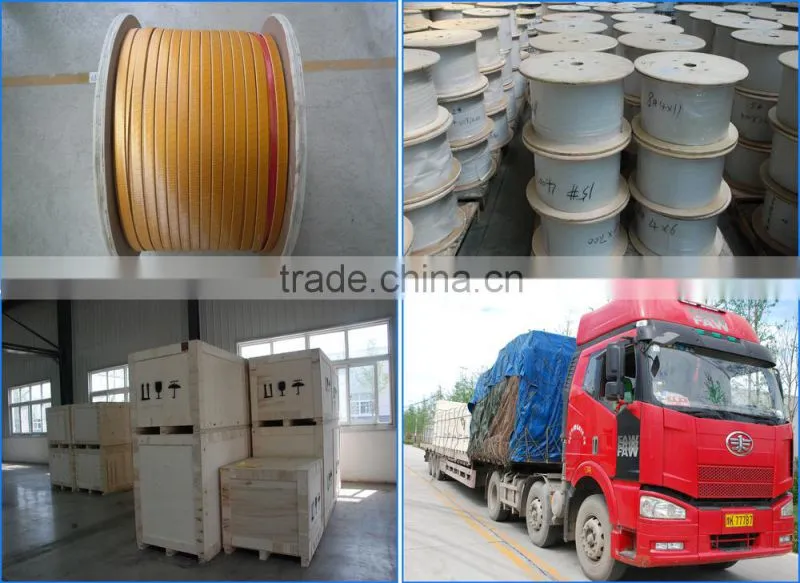

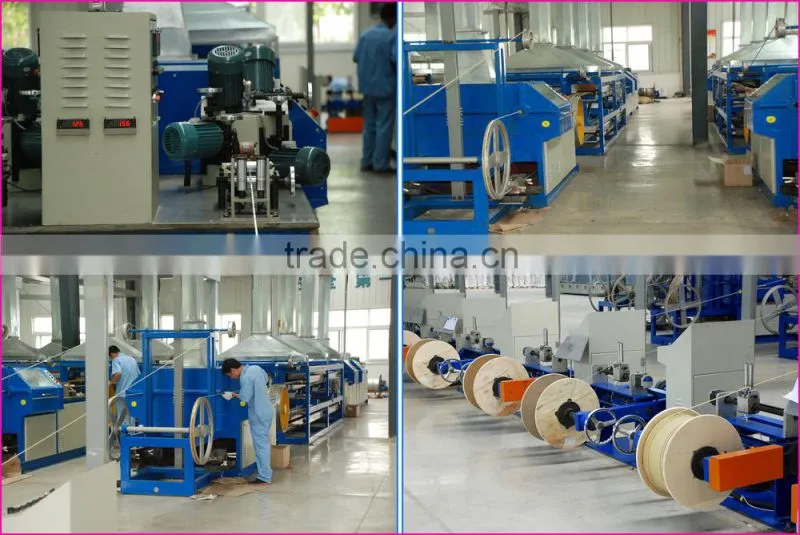

Production
1.Customized sizes,logos and packing are accepted.
2.We can solve the problem you may encounter.
3.Factory Direct and on-time shipment.
4.Free sample are available.
5.Customers can contact us at any time.
Founded in 1993, Xuchang Huayuan Magnet Wire Co.,Ltd located in Henan Province with covering an area of 100000 m2 and a building area of 30000m2.We are producers with more than 20 years of production experience.Since our factory was established,we have been engaged in researching and manufacturing enamelled magnet wire and winding magnet wire.
Main product:

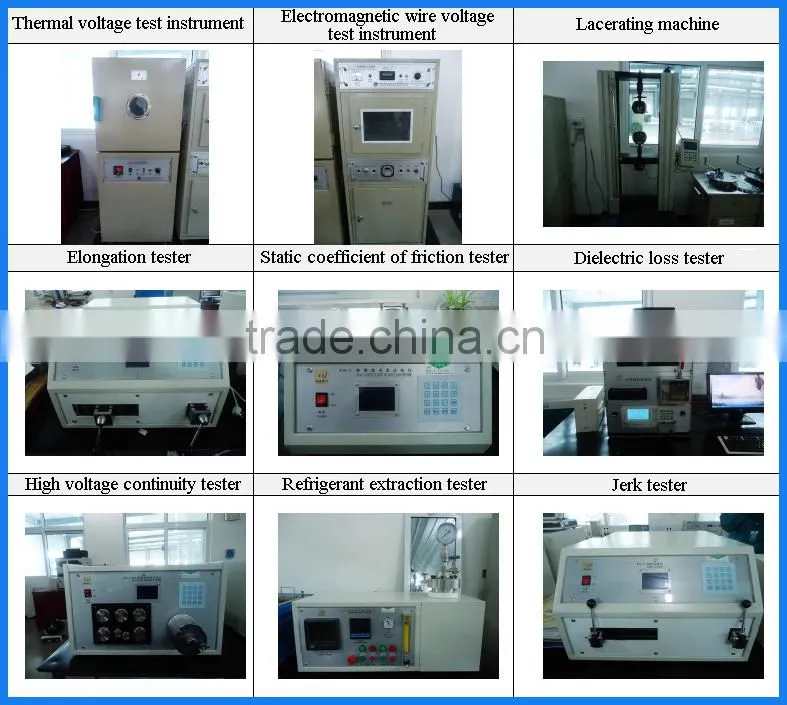

Our experimental equipment
Typical applicayion include :
- Motor
- Transformer
- Generator
- Electric Welding machine
- Inductive coil
Contact Information
1.Can we supply the sample for free?
Yes,we can.
2.How many types of our product?
We can supply enamelled aluminum wire,enamelled copper wire,paper covered magnet wire, fiber glass covered magnet wire and other magnet winding wire.
3.How long has been our company established?
We has produced since 1993.
4.What's our MOQ?
500kg.
5.Which payment terms we prefer?
(1) L/C
(2) T/T
(3) D/P
Contact Us
- Xuchang Huayuan Electric Apparatus Co., Ltd.
- Contact nameRose Rose
- Phone0086-374-8579111
- AddressSouth of Weilai Avenue, Industry Cluster District, YanlingCounty, Xuchang City, Henan Province, China Xuchang,Henan
-
