Specifications
Specifications1) High temperature resistance2) Chemical corrosiom resistance
3) Transformer oil resistance

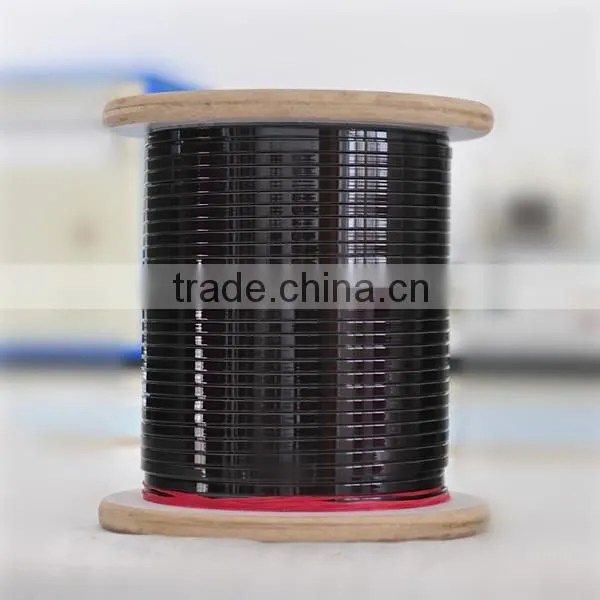

Hot Saleing Excellent Brand of Enamelled Magnet Wire
1. Feature of enamelled magnet wire
1) High temperature resistance
2) Chemical corrosion resistance
3) Transformer oil resistance
4) Low temperature resistance
5) Radiation resistance
6) High breakdown voltage
7) Good mechanical property
2.Specifications of enamelled magnet wire
Name |
Hot Saleing Excellent Brand of Enamelled Magnet Wire r |
Diameter |
1.Round wire:Φ0.3-8.0mm 2.Flat wire: Thickness(a): Φ0.8mm-5.0mm, Width(b): Φ2-16mm |
|
Type |
Class 130 polyester enameled wire, PEW /130 |
Class 155 modified polyester enameled wire, PEW/155 | |
Class 180 polyesterimide enameled wire, EIW/180 | |
Class 200 polyester-imide / polyamide-imide enameled wire, EI/AIW200 | |
Class 130 /155/ 180 polyurathane enameled wire, UEW 130/ 155 /180 | |
Material |
Bare aluminium wire or squeeze bare flat wire confirm the National standard |
Standard |
IEC/NAMA/GB |
|
Typical applications: Electric motor, Instrument, Dry transformer, Generator ,UPS power source, Electric welding machine | |

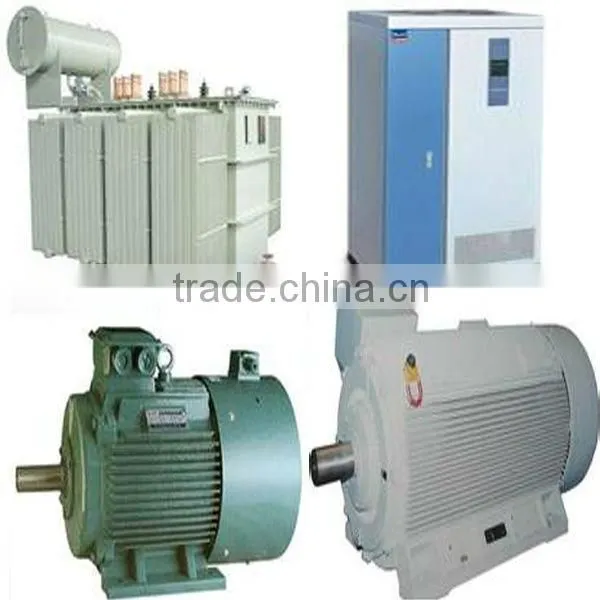

Typical applications of enamelled magnet wire

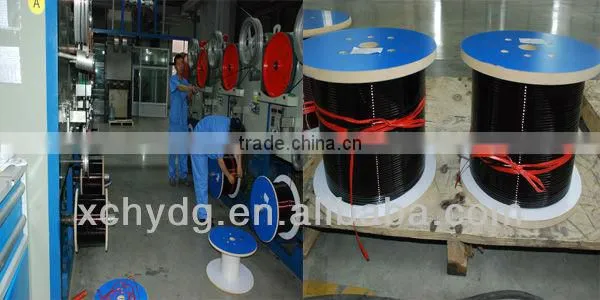

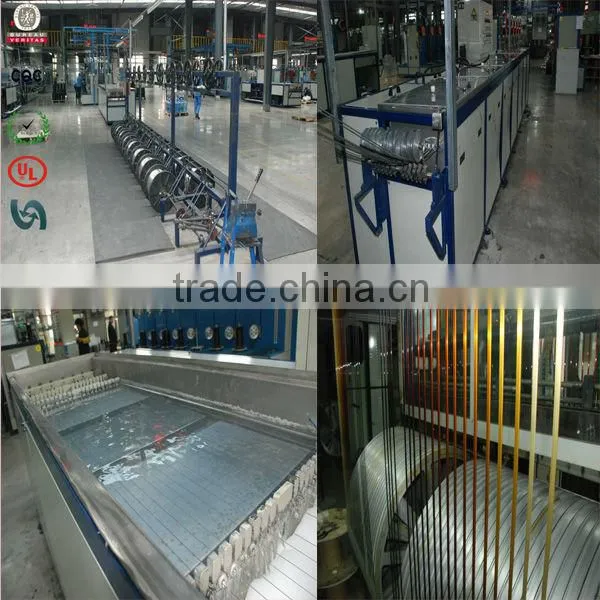

Qick View of Our Working Procedure of enamelled magnet wire

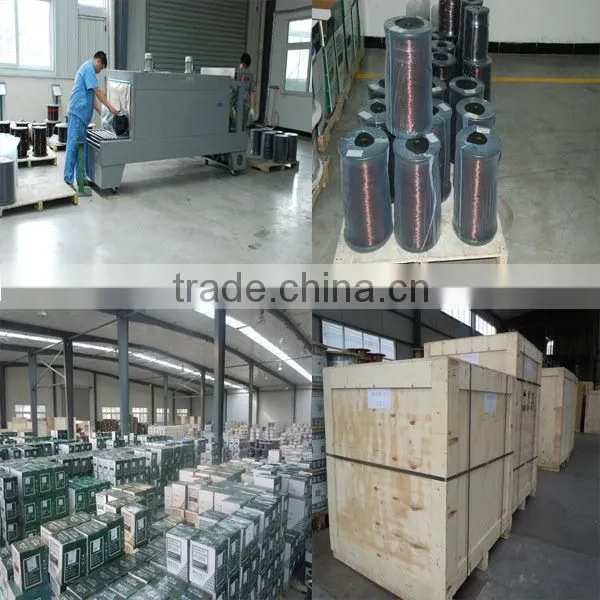

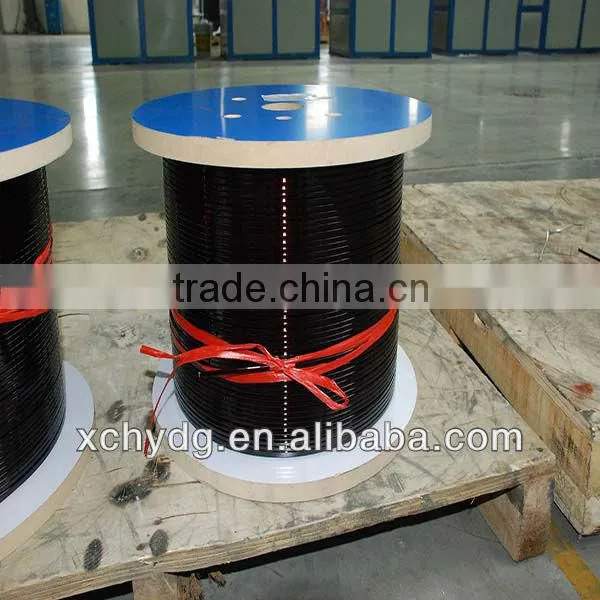

3. Packing of electric enamelled magnet wire
Spool: PT15, PT25, PT30, PT60, or much big Plywood Packing Spool
Film: High quality water-proof Film covered Wire Spools
Packing: custom-made Plywood Cases, then bind it with Steel Strip
Natural packing or based on customers' requirement
4. Test report of enamelled magnet wire
Name |
Hot Saleing Excellent Brand of Enamelled Magnet Wire |
|||
Type |
Q(ZY)LB-2/180 |
|||
Diameter |
4.50×13.50 mm |
|||
Standard |
MW36-A |
|||
Test item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
Bright and clean, uniform color, |
OK |
|
|
Conductor Diameter |
Broad side |
mm |
±1% |
13.44 |
Narrow side |
mm |
±1% |
4.48 |
|
Thickness of insulation film |
Broad side |
mm |
0.127-0.178 |
0.160 |
Narrow side |
mm |
0.102-0.152 |
0.120 |
|
Resistance |
Ω/m |
≤0.02785 |
0.02761 |
|
Elongation |
|
>15% |
32% |
|
Flexibility and adherence |
|
15% no cracking |
No cracking |
|
Resistance to heat shock |
C |
Tensing 10% in 200ºC , no cracking |
No cracking |
|
Breakdown voltage |
KV |
Three of four minimum breakdown voltage no less than 2.5 KV, the last one above 0.9 KV |
4.5,4.0,4.1,5.4 |
|
Packing |
|
Meet the export standard |
OK |
|
Quality control result |
|
OK |
||

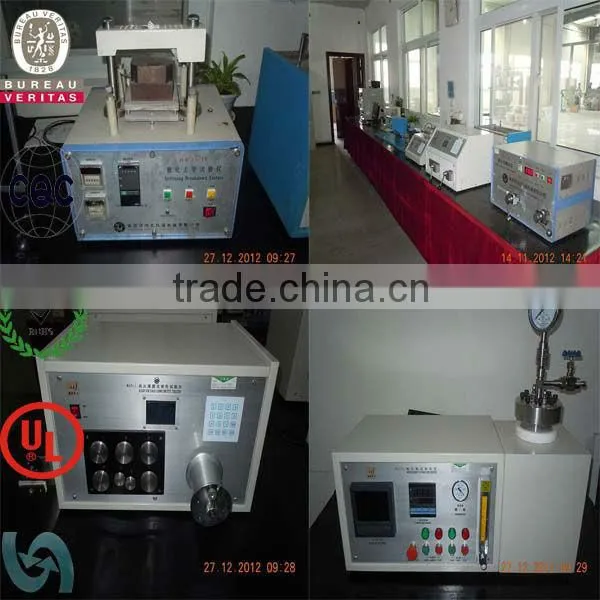

Test equipment of electric enamelled magnet wire
Certifications of enamelled magnet wire
5. Best service:
1) .Trail order is welcomed, you can test our quality before making large quantity, even though
we are wholesales supplier
2). We issued test reports for every shipment.
3). You can enjoy discounting and priority to produce first after you become to be our regular client.
6.Company Advantage:
1). About 20 years manufacture experiences.
2). Been Audit by UL Company and BV Company
3).We have a big Quality Control Team and can guarantee the quality and time of delivery
4). Many trade companies place orders from us.

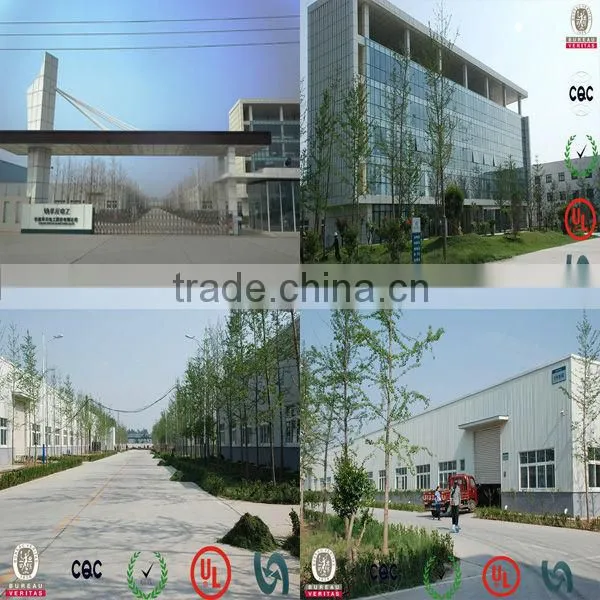

Our Company
Xuchang Huayuan Magnet Wire Co.,Ltd is established in 1993 and we have developed to a professional manufacture of enameled wire and paper covered aluminum wire as well as
fiber-glass covered aluminum wire. Our 100,000 square meter factory is ISO 9001(00112Q213049R 1M /4100) and 14001 environment system certified, and our products are also UL-listed. Our workshop maintains constant temperature and humidity to guarantee the quality.
