Specifications
Conductor Diameter:Side A: 0.8-5.0mm / Side B: 2.0-16.0mm
Superiority:High breakdown voltage and good mechanical properties
Conductor Diameter:
Side A: 0.8-5.0mm / Side B: 2.0-16.0mm

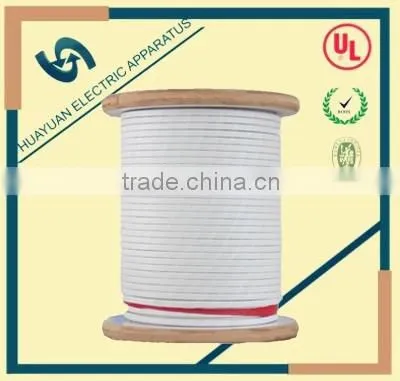

We can produce various paper covered rectangular aluminum wire with different scope of application,such as NOMEX,CABLE PAPER,3M PAPER and so on.
Superiority of paper covered rectangular aluminum wire:
1.High quality and low price
2.High breakdown voltage
3.Good mechanical properties
4.Professional production and sales team
5.IEC/GB/JIS/NEMA standards approved
Test Report
| Name | Nomex-paper covered rectangular aluminum wire | ||||
| Species | 5.000×10.600 | ||||
| Test Item | Standard | unit | Test Result | Conclusion | |
| Size | Max outside diameter | 5.500×11.120 | mm | 5.432 ×11.074 | OK |
| Thickness | ±0.050 | mm | 4.994 | OK | |
| width | ±0.070 | mm | 10.598 | OK | |
| Appearance | Uniform ,no missing layer, no wrinkling and cracking | NO DEFECT | OK | ||
| Insulation Thickness | 0.405--0.450--0.500 | mm | 0.438 | OK | |
| Resistivity(20ºC) | AL≤0.02785 | Ω.mm2/m | 0.02784 | OK | |
| Elongation | ≥17 | % | 34 | OK | |
| Wrapped overlapped | ≥2 | mm | 2.2 | OK | |
| Winding bending | Narrow width curved 90, 30 times the diameter. | NO cracking | OK | ||
| Breakdown Voltage | 1.4 | KV | 1.6,1.9,1.6,2.1 | OK | |
| Packing | Meet the export standard | Meet the export standard | OK | ||
| Final Conclusion | OK | ||||

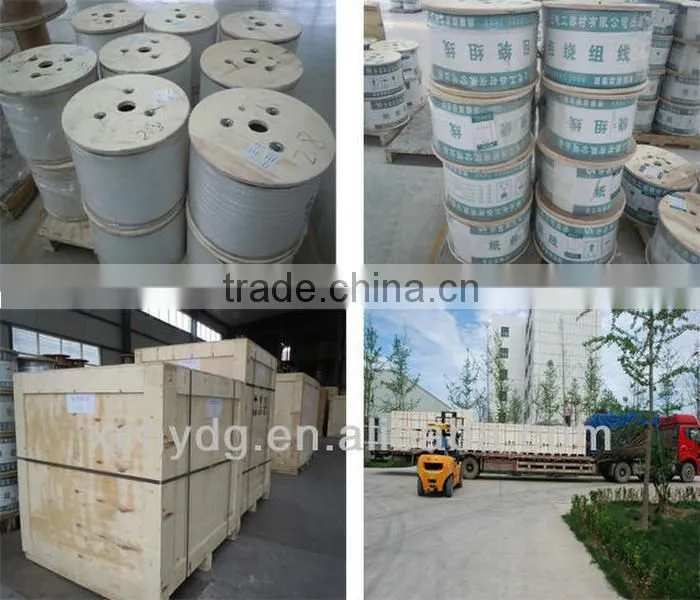

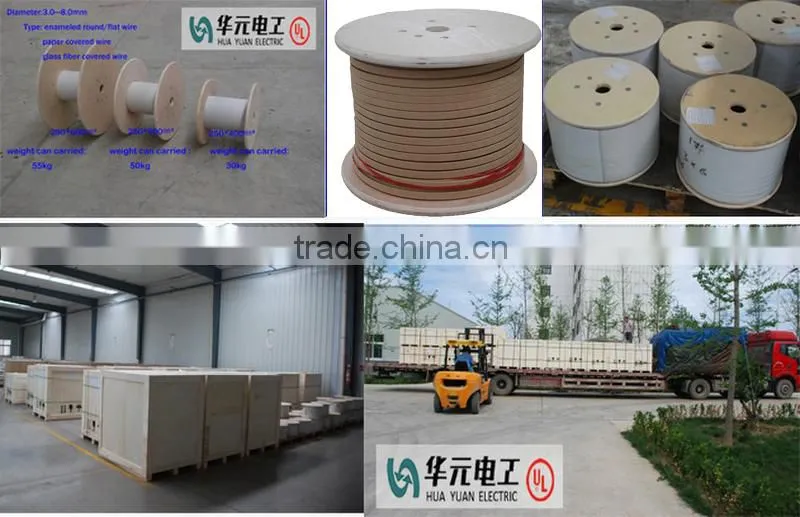

Inner packing:Plywood Wooden Spool
Outer packing:wooden pallet with paper board and stretched film according to customers' special requirements.
Our product has been packed in wooden case in order to protect enamelled aluminium wire from damage during transport.
1.Customized sizes,logos and packing are accepted.
2.We can solve the problem you may encounter.
3.Factory Direct and on-time shipment.
4.Free sample are available.
5.Customers can contact us at any time.
Contact Information

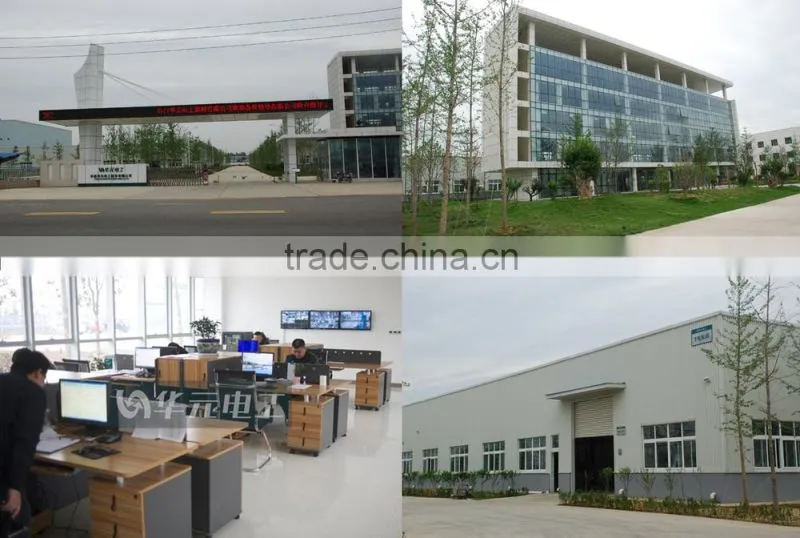

Founded in 1993, Xuchang Huayuan Magnet Wire Co.,Ltd located in Henan Province with covering an area of 100000 m2 and a building area of 30000m2.We are producers with more than 20 years of production experience.Since our factory was established,we have been engaged in researching and manufacturing enamelled magnet wire and winding magnet wire.

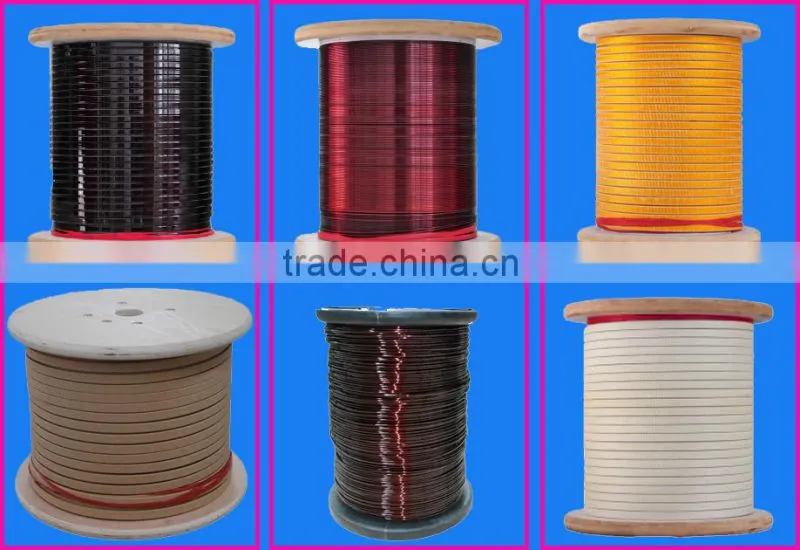

Main Product

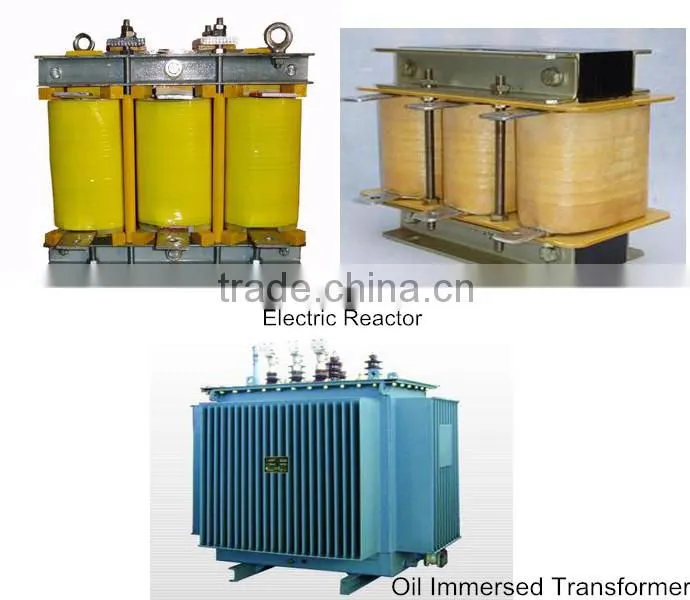

Typical applicayion include :
- Motor
- Transformer
- Generator
- Electric Welding machine
- Inductive coil

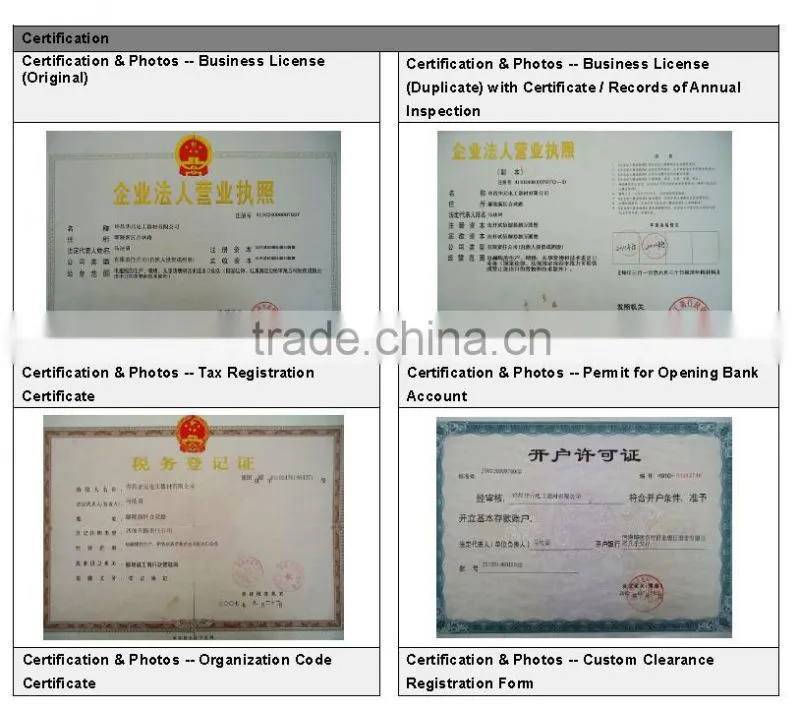

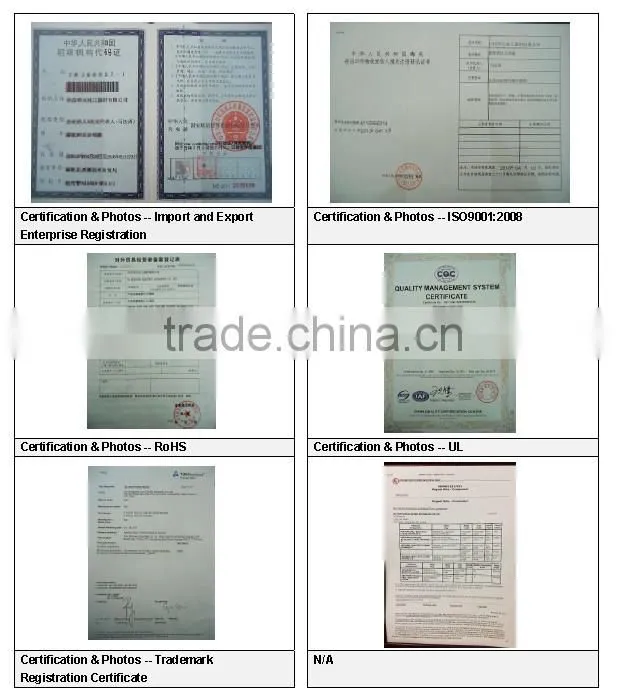

Our Certification

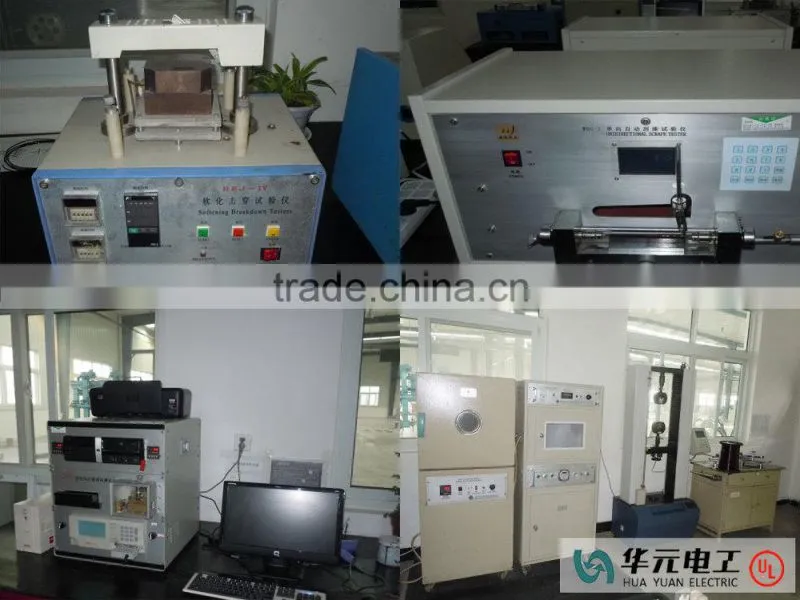

Our experimental equipment
1.Can we supply the sample for free?
Yes,we can.
2.How many types of our product?
We can supply enamelled aluminum wire,enamelled copper wire,paper covered magnet wire, fiber glass covered magnet wire and other magnet winding wire.
3.How long has been our company established?
We has produced since 1993.
4.What's our MOQ?
500kg.
5.Which payment terms we prefer?
(1) L/C
(2) T/T
(3) D/P
(4) Western Union
