Advantages of aluminium enamelled winding wire
1.High quality and low price
2.High breakdown voltage
3.Good mechanical properties
4.Professional production and sales team
5.IEC/GB/NEMA standards approved
6.Excellent resistance to abrasion and solvent
Our product is packed in wooden wheel and then packed in wooden tray in order to protect enamelled aluminium wire from damage during transport.
Test Report
| Name | enameled aluminum wire | ||
| Type | QZYL-2/180 | ||
| Diameter | 1.800mm | ||
| Standard | IEC60317 | ||
| Test Item | Unit | Technical Requirement | Test Result |
| Appearance | bright and clean, Uniform color, | Ok | |
| Overall Diameter | mm | <1.909 | 1.876 |
| Conductor Diameter | mm | ±0.018 | 1.800 |
| Thickness of insulation film | mm | >0.073 | 0.076 |
| resistance | Ω/m | <0.011305 | 0.010982 |
| Elongation | >15% | 37% | |
| winding test | no cracking | Ok | |
| Tensile Test | 15% No cracking | no cracking | |
| Peel twist | insulation film Without losing adhesion | Ok | |
| Jerk test | insulation film Without losing adhesion | Ok | |
| Resistance to heat shock | °C | 200 °C insulation film no cracking | Tensing 15% half an hour, no cracking |
| Resistance to solvent | Standard solvent “H” Pencil | 2H is ok | |
| Breakdown Voltage | KV | 5.0KV | 9.2,8.1,7.6,7.5,8.5 |
| package | Meet the export standards | Ok | |
| Quality Control Result | Ok | ||
1.Diameter of our product is 1.0cm to 8.0cm.
2.We can solve the problem you may encounter.
3.Factory Direct and on-time shipment.
4.Free sample are available.
5.Customers can contact us at any time.

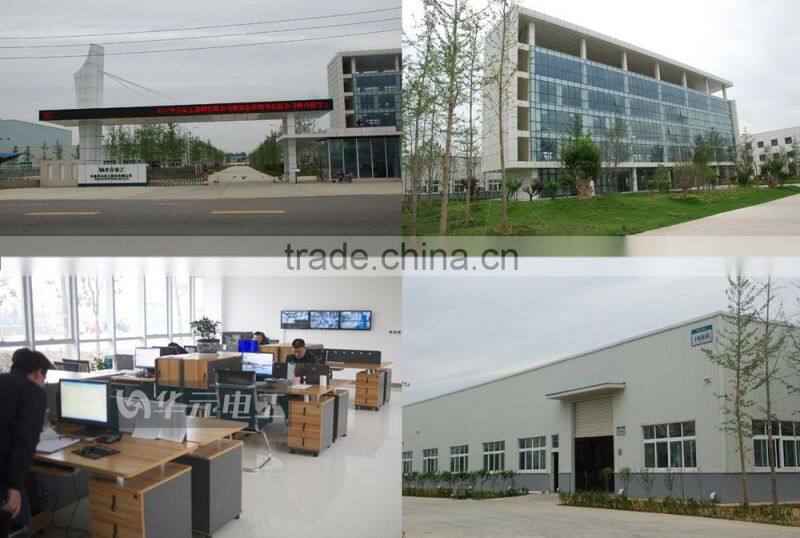

Founded in 1993, Xuchang Huayuan Magnet Wire Co.,Ltd located in Henan Province with covering an area of 100000 m2 and a building area of 30000m2.We are producers with more than 20 years of production experience.Since our factory was established,we have been engaged in researching and manufacturing enamelled magnet wire and winding magnet wire.

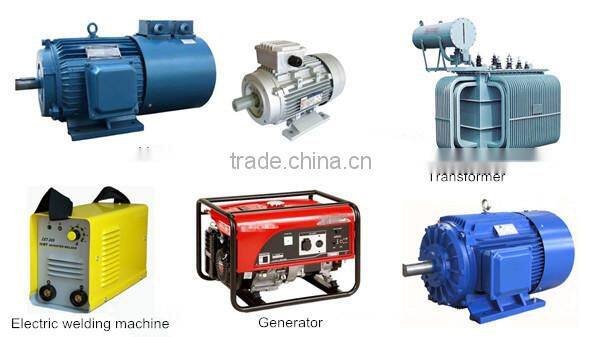

Typical applicayion include :
- Motor
- Transformer
- Generator
- Electric Welding machine
- Inductive coil
Contact Information
Our Certification

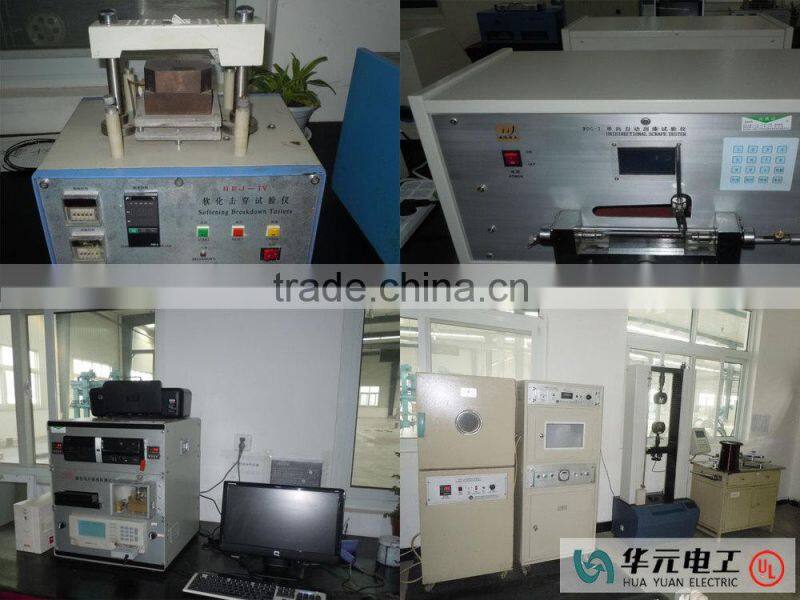

Our experimental equipment
1.Can we supply the sample for free?
Yes,we can.
2.How many types of our product?
We can supply enamelled aluminum wire,enamelled copper wire,paper covered magnet wire, fiber glass covered magnet wire and other magnet winding wire.
3.How long has been our company established?
We has produced since 1993.
4.What's our MOQ?
500kg.
5.Which payment terms we prefer?
(1) L/C
(2) T/T
(3) D/P
