Specifications
copper flat wire1.Dia:a:1-10mm;b:3-16mm
lours:goldredbluegreen
3.Standard:IEC,GB,NEMA,JIS
4.19 years history

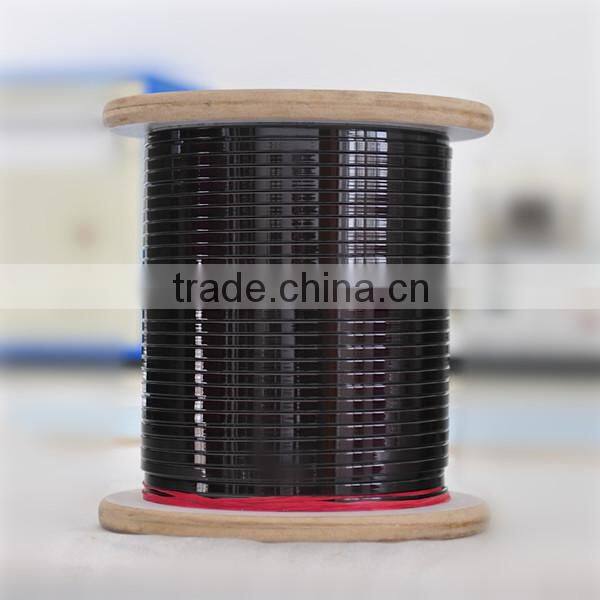

1 Enameled copper flat wire
Enameled copper wires | |
Insulation Material |
Polyester(PEW), Modified Polyester(GPEW) Polyester-imides(EIW) |
Type |
QZYTB-130 /155/ 180 /200 /220 |
Diameter |
Flat enameled copper wire: a: 1mm-10mm, b: 3mm-16mm |
Thermal Class |
130C ,155C,180C,200C,220C |
Thickness of Enamel |
Grade1 Grade2 |
Standard |
NEMA or customer’s requirement |
Application |
Air-conditioner, electric tool, washing-machine, compressor anti-explosion motor, deflection yoke, electrical instrument winding |
Features |
Brown or reddish brown color Excellent heat shock, adherence and flexibility, high cut through |
Certifications of enamelled Copper wire:
The mechanical, electrical and chemical characteristics of copper flat wire differ from those of
copper magnet wire because of the inherent differences in the conductor materials. These
differences are reflected in certain test procedures and/or performance requirements for copper
flat wire , such as elongation, adherence and flexibility, heat shock, scrape resistance, continuity
and thermal endurance .

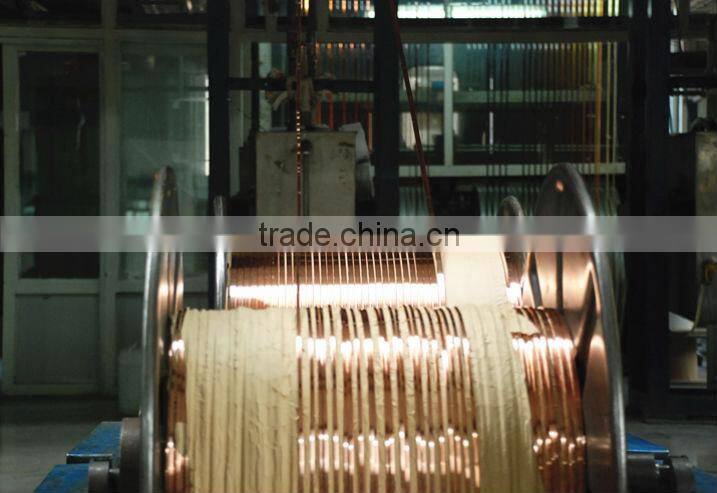

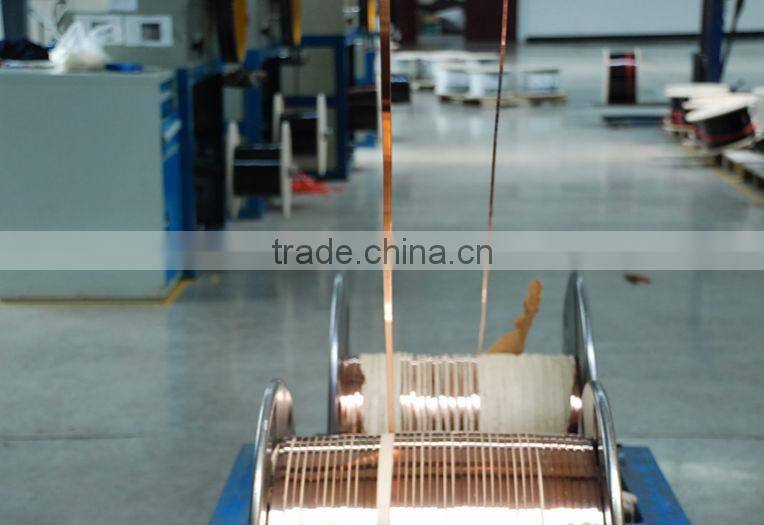

Producing Process of Enamelled copper flat wire
packing: we have different packing for the wires ,plastic have pt 60 pt 90 ,pt 200 ,can hold 12kg,22kg ,5kg of the wires .
also has the wooden spool ,using on the flat wires .
We have been committed to the research,development and manufacture of magnet wire since its establishment in 1992. being a professional manufacture and designer of high quality magnet wire, We are strong in technical force and 2 of our engineers are selected to be the editor of china national standard, 5 members from our R&D team are in senior positions. Also we are member of China Electrical Equipment Industrial Association .
Copper flat wire Main Export to Hongkong, Singapore, Indonesia, Sri Lanka, Vietnam, Thailand, Turkey, UK, Hungary, Romania, Croatia, Greece, Egypt, USA, Canada, Brazil, Argentina, Zambia, Colombia, Dominican republic,
