2015 SINOLIFT CDD-A Hi-lift Full Electric Pallet Stacker With 6m Max Lifting Height
1)Features of Full Electric Pallet Stacke
- Designed for stacking palettes on tacks and transporting goods on high racks
- Can be installed with new Tiller from REMA, Germany.
- The platform pedal ,defending bars and wide straddle leg are available.
- Heavy duty design with "H" style mast material
- Imported electric control system and hydraulic unit
- Operating steady and flexible
- Low noise, no pollution, and high reliability
- International typical style
- Conforms to EN 1757-1:2001, EN1726
2)Specification Date of Full Electric Pallet Stacke
Model |
CDD1.2A |
CDD1.5A |
||||
Standard (CDDA) |
/ |
CDD1.2A/45 |
CDD1.2A/55 |
CDD1.5A/45 |
CDD1.5A/55 |
|
With Stand-On Platform (CDDA-T) |
/ |
CDD1.2A/45T |
CDD1.2A/55T |
CDD1.5A/45T |
CDD1.5A/55T |
|
With wide Straddle Leg (CDDA-W) |
/ |
CDD1.2A/45W |
CDD1.2A/55W |
CDD1.5A/45W |
CDD1.5A/55W |
|
Capacity Q |
kg |
1200 |
1500 |
|||
Max Lifting Height H3 |
mm |
4500 |
5500 |
4500 |
5500 |
|
Load Center C |
mm |
600 |
||||
Fork Length |
mm |
1150 |
||||
Single fork width |
mm |
160 |
||||
Fork Width |
mm |
560 |
||||
Overal width of legs |
mm |
720 |
||||
Fork Height |
mm |
90 |
||||
Free Lifting Height |
mm |
1550 |
1717 |
1550 |
1717 |
|
Min Height of Stacker |
mm |
2175 |
2508 |
2175 |
2508 |
|
Max Height of Stacker |
mm |
5373 |
6373 |
5373 |
6373 |
|
Traveling speed (Loaded/Unloaded) |
km/h |
5.2/6.8 |
||||
Lifting speed (Loaded/Unloaded) |
mm/s |
127/170 |
||||
Lowering speed (Loaded/Unloaded) |
mm/s |
150/128 |
||||
Motor |
Traveling |
kw/v |
1.2/24 |
|||
Lifting |
kw/v |
3.0/24 |
||||
Front wheel |
mm |
Φ78x70 |
||||
Balance wheel |
mm |
Φ150x75 |
||||
Drive wheel |
mm |
Φ250x80 |
||||
Overall Dimension |
Length |
mm |
2175 |
|||
Width |
mm |
940 |
||||
Height |
mm |
2175 |
2508 |
2175 |
2508 |
|
Min Turning Radius |
mm |
1525 |
||||
Battery |
DG240AH/24V 200kg |
|||||
Charger |
Input 220V/50Hz, Output 24A/30V |
|||||
*** Optional platform and handrail.

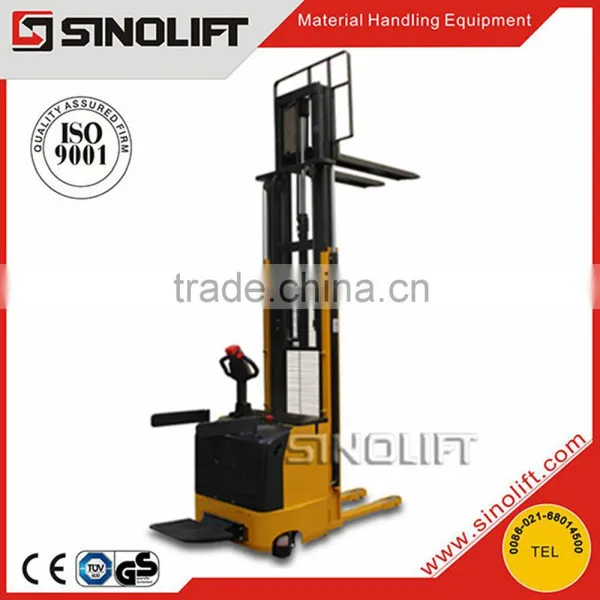

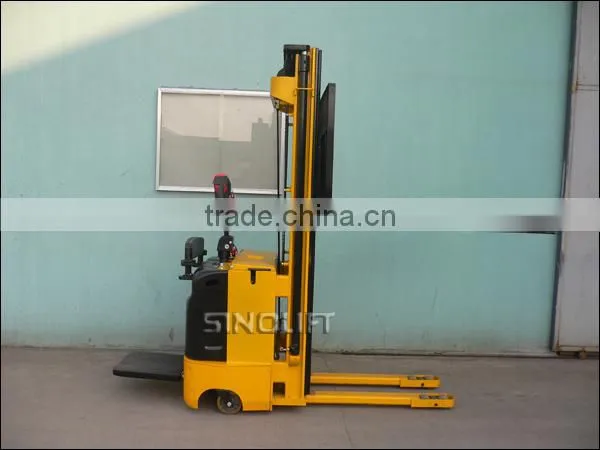

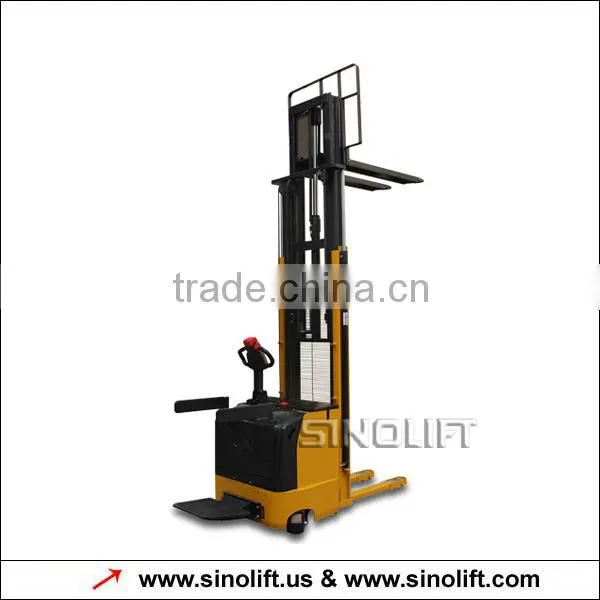

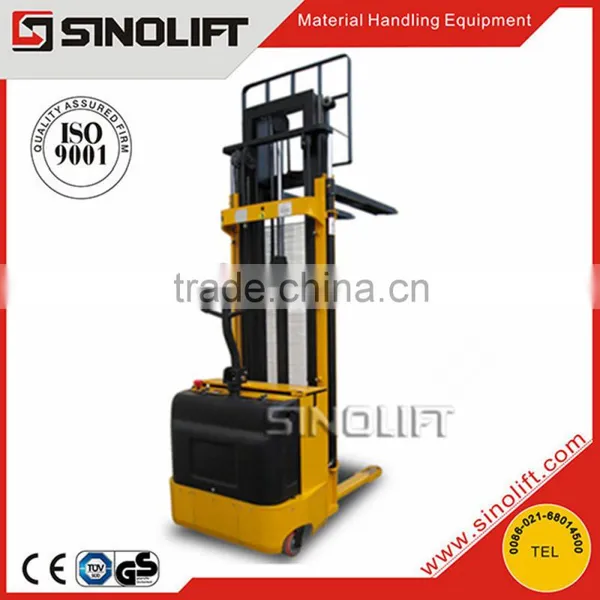

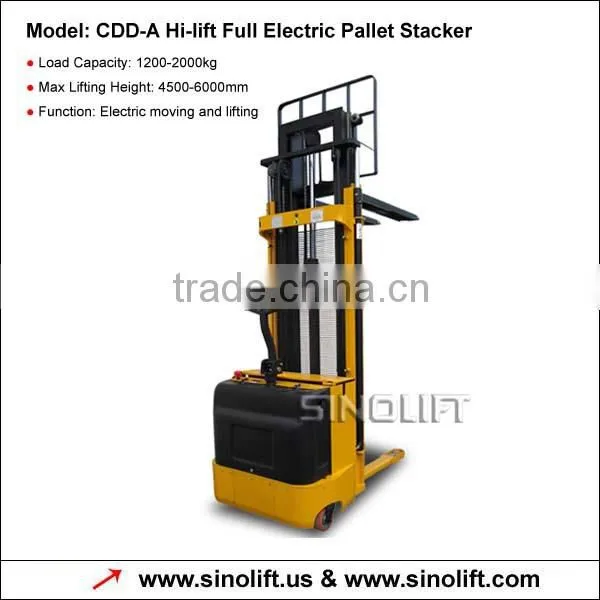

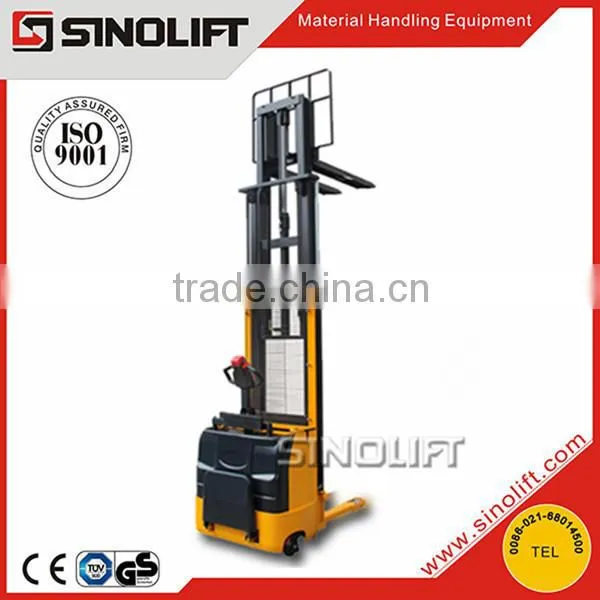

3)Photos of Full Electric Pallet Stacke

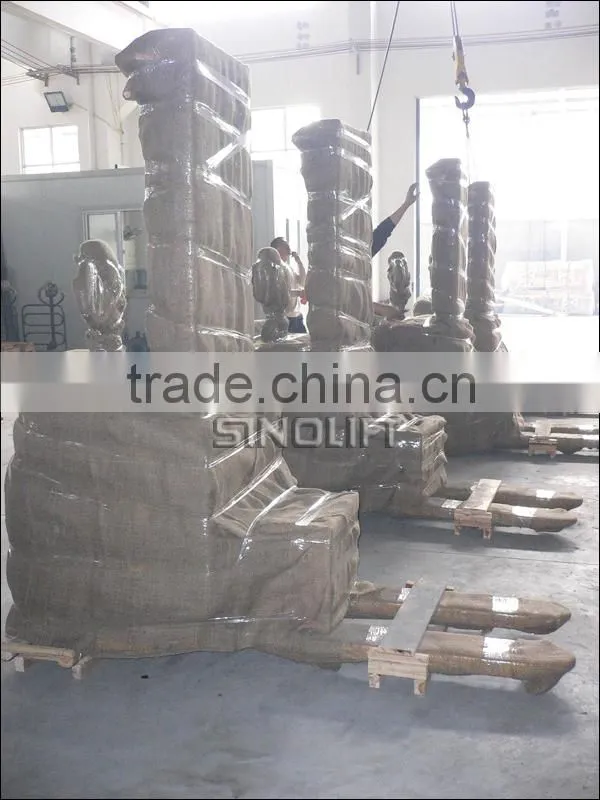

4)Workshop
5)Certificates of Hand Mini Stacker
6)Terms and Service Hand Mini Stacker
| Lead time | 3-4 weeks |
| Packing | Standard export fumigated wooden pallet, foam rubbers |
| Payment term | T/T payment in advance; L/C at sight |
| Lead term | FOB Shanghai or CFR/CIF |
| Warranty period | 12 months |
| Shipping method | by sea or air; by express |
7) Warranty Policy and Service Program of Hand Mini Stacker
SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items
8) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique. We are not assembling, 95% core parts are produced by ourselves. And Sinolift is keeping on investing 30% of its margin on R&D.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
