Help CenterCL Series Full Electric Stacker
Related Products
Specifications
CL Series Full Electric Stacker1.Capacity: 1200/1600kg
2. Lifting Height: 2000/2600/3200/4600mm
CL Series Full Electric Stacker
1)Features
1.Smooth travel and lift with excellent controls to reduce product damages and increases productivity.
2.Lift limit switch operates at maximum lift height to shut off pump motor.
3.A heavy-duty 24-volt electrical system provides good travel and lift speeds.
4.High quality hydraulic pump assures very little noise, maximum efficiency and durability.
2)Specification Date
| Model | CL12.16 | CL12.26 | CL12.32 | CG16.46 | |
| Load capacity | kg | 1200 | 1200 | 1200 | 1600 |
| Load center | mm | 600 | 600 | 600 | 600 |
| Lifting height | mm | 2000 | 2600 | 3200 | 4600 |
| Fork overall width | mm | 570/685 | 570/685 | 570/685 | 570/685 |
| Fork overall length | mm | 1150 | 1150 | 1150 | 1150 |
| Min. height | mm | 86 | 86 | 86 | 86 |
| Min. Turning radius | mm | 1436 | 1436 | 1436 | 1615 |
| Drive Motor | kw | 1.2 | 1.2 | 1.2 | 1.2 |
| Lifing Motor | kw | 2.2 | 2.2 | 2.2 | 3 |
| Battery | V/AH | 24/110 | 24/110 | 24/110 | 24/280 |
| Charger | V/A | 24/20 | 24/20 | 24/20 | 24/30 |
| Overall length | mm | 1865 | 1865 | 1865 | 2175 |
| Overall width | mm | 805 | 805 | 805 | 1050 |
| Machine Height | mm | 2000 | 1800 | 2100 | 2100 |
| Service Weight | kg | 540 | 725 | 815 | 980 |

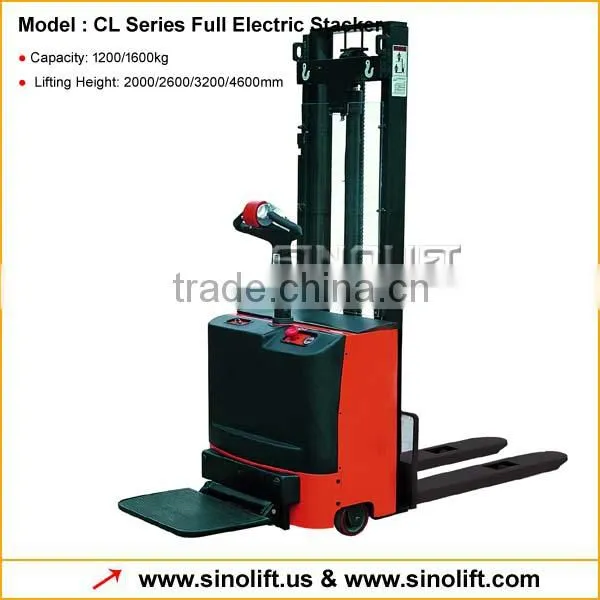

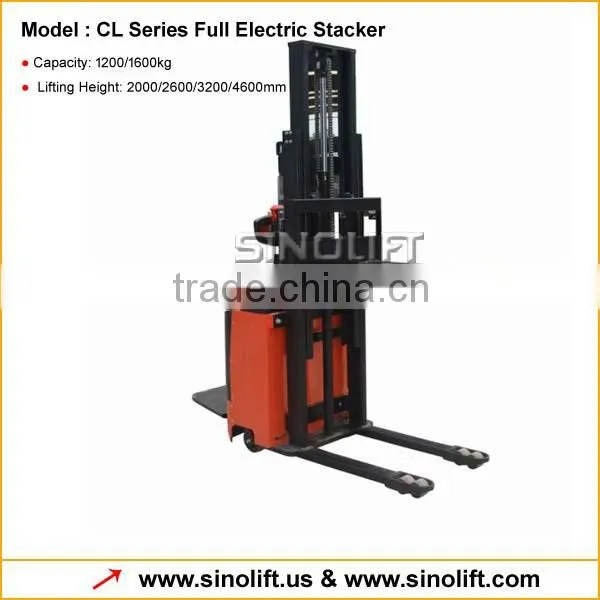

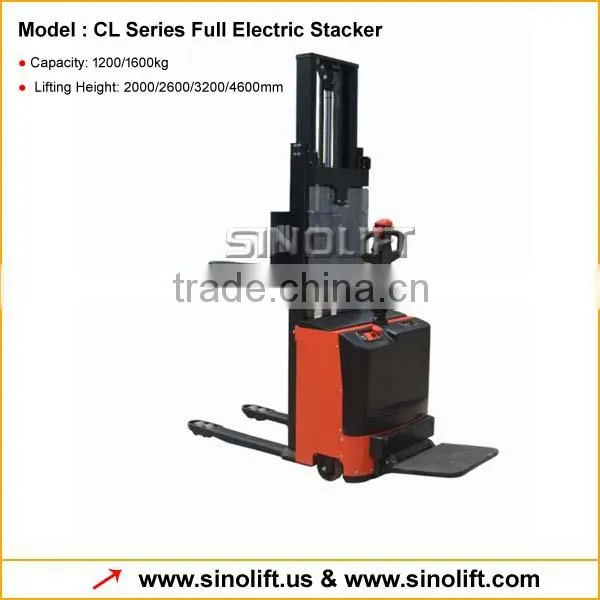

3)Photos
4)Workshop
5)Certificate
Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.
6)Terms and Service
| Lead time | 3-4 weeks |
| Packing | Standard export fumigated wooden pallet, foam rubbers |
| Payment term | T/T payment in advance; L/C at sight |
| Lead term | FOB Shanghai or CFR/CIF |
| Warranty period | 12 months |
| Shipping method | by sea or air; by express |
7) Warranty Policy and Service Program
SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items
