CDD-E Double Pallet Full Electric Stacker

Name: CDD-E Double Pallet Full Electric Stacker
Brand: SINOLIFT
SKU: 132448911

CDD-E Double Pallet Full Electric Stacker thumbnail-1

CDD-E Double Pallet Full Electric Stacker thumbnail-2

CDD-E Double Pallet Full Electric Stacker thumbnail-3

CDD-E Double Pallet Full Electric Stacker photo-1

CDD-E Double Pallet Full Electric Stacker photo-2

CDD-E Double Pallet Full Electric Stacker photo-3

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Model Number:

CDD-E

Contact Supplier Request Quote Chat Now

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number CDD-E

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Electric Stacker
1.Capacity: 1200/1500kg
2. Max Lifting Height : 1600-3300mm
3. Electric moving and lifting

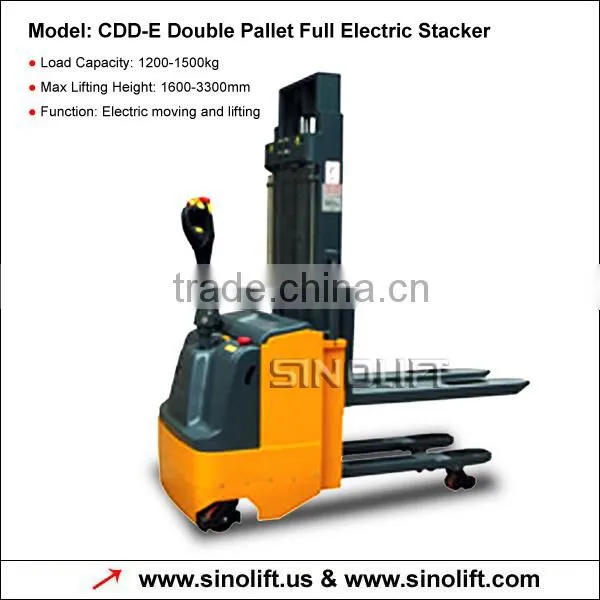

CDD-E Double Pallet Full Electric Stacker

1)Features

- Imported electric control unit and hydraulic unit

- High stability and good operating flexibility

- Low noise, no pollution, and high reliability

-T raditionally international style

- It operates simple, steady and reliable. Person can go together with stacker.

2)Specification Date

Model	CDD1.2E
Standard (CDD-E)	CDD1.2E/16	CDD1.2E/24	CDD1.2E/29	CDD1.2E/31	CDD1.2E/33
Capacity Q (Kg)	1200
Max Lifting Height H₃(mm)	1600	2450	2900	3100	3300
Load Center C (mm)	600
Min Height of Forks (mm)	90
Fork Length (mm)	1150
Fork Width (mm)	540
Min Height of Stacker h₁(mm)	2090	1800	2025	2125	2225
Max Height of Stacker h₄(mm)	2246	3096	3546	3746	3946
Width of Stacker B (mm)	940	940	940	1080	1080
Length of Stacker (mm)	1925
Min Turning Radius (mm)	1525
Net Weight (without battery) (Kg)	613	670	692	705	713
Battery	DG240AH/24V 6Q-100AH/24V

Model	CDD1.5E
Standard (CDD-E)	CDD1.5E/16	CDD1.5E/24	CDD1.5E/29	CDD1.5E/31	CDD1.5E/33
Capacity Q (Kg)	1500
Max Lifting Height H₃(mm)	1600	2450	2900	3100	3300
Load Center C (mm)	600
Min Height of Forks (mm)	90
Fork Length (mm)	1150
Fork Width (mm)	540
Min Height of Stacker h₁(mm)	2090	1800	2025	2125	2225
Max Height of Stacker h₄(mm)	2246	3096	3546	3746	3946
Width of Stacker B (mm)	940	940	940	1080	1080
Length of Stacker (mm)	1925
Min Turning Radius (mm)	1525
Net Weight (without battery) (Kg)	620	677	699	712	720
Battery	DG240AH/24V 6Q-100AH/24V

*** Optional platform and handrail.

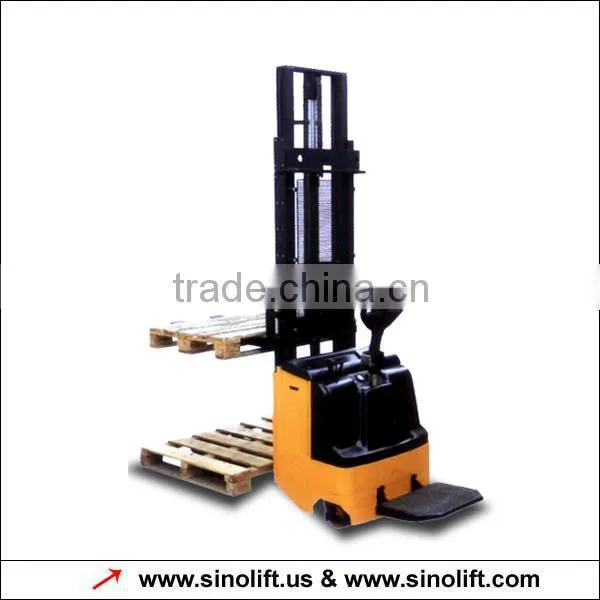

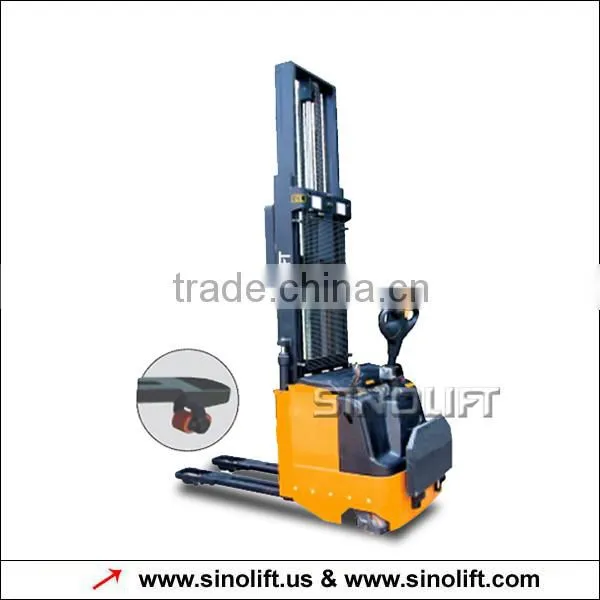

3)Photos

4)Workshop

5)Certificate

Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.

6)Terms and Service

Lead time	3-4 weeks
Packing	Standard export fumigated wooden pallet, foam rubbers
Payment term	T/T payment in advance; L/C at sight
Lead term	FOB Shanghai or CFR/CIF
Warranty period	12 months
Shipping method	by sea or air; by express

7) Warranty Policy and Service Program

SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.

Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.

If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
