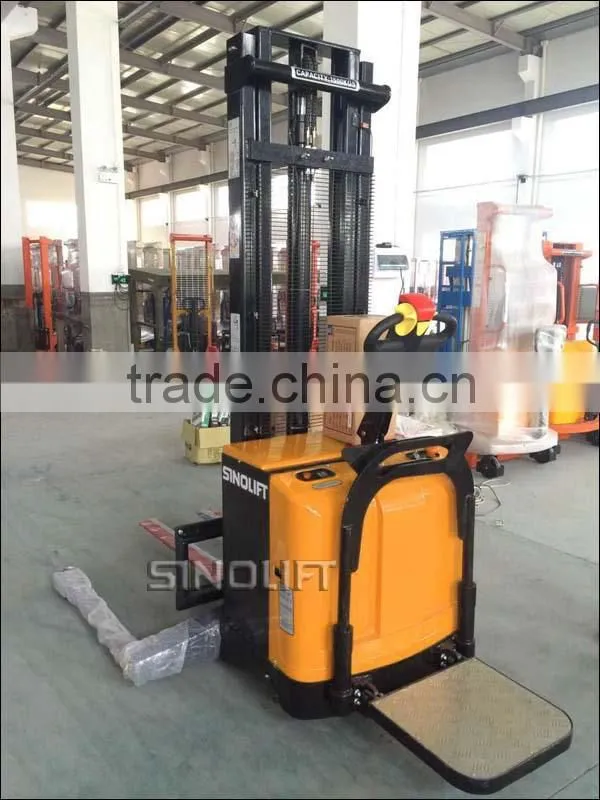

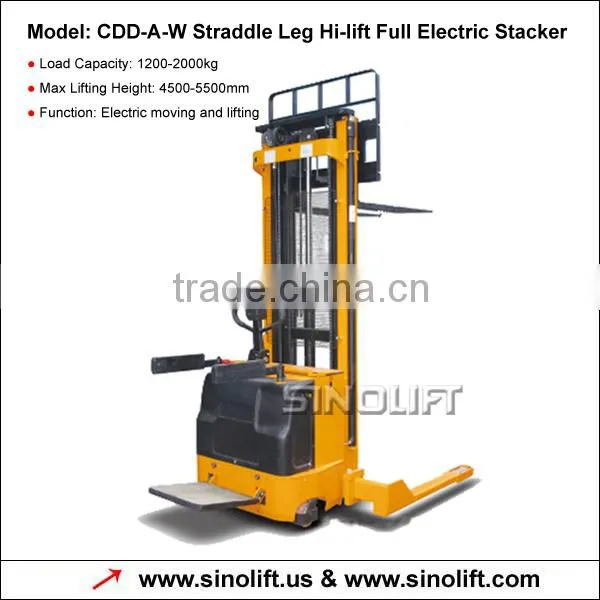

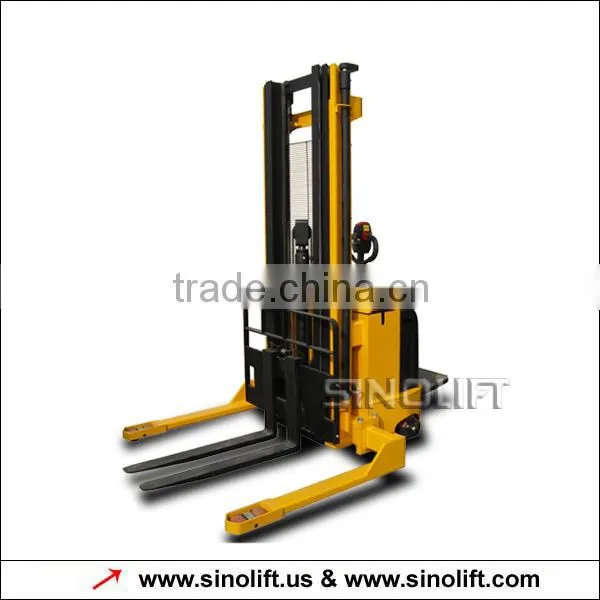

CDD-A-W Straddle Leg Hi-lift Full Electric Stacker
- 300 Unit / Units per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Homogenization tank B200 external fluidization plate homogenization tank inflation equipment
- B400 Electro-hydraulic sector valve Pneumatic sector valve Block material sector valve can be customized
- Bulk material bulk hangar bottom cement clinker sand aggregate loading inside the wear-resistant ceramics
- Air transport chute XZ400 cement plant ash chute dry ash ore powder transport equipment
- SZT-300 clinker bulk machine sand aggregate bulk head fixed car loader
- Cement depot bottom arc discharge valve B300 pneumatic flow control valve Electric flow control valve
Product Details
Place of Origin: | Shanghai, China | Brand Name: | SINOLIFT | Model Number: | CDD-A-W |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Full Electric Stacker1.Capacity: 1200-2000kg
2. Max Lifting Height: 4500-6000mm
3. Power: electric moving and lifting
CDD-A-W Straddle Leg Hi-lift Full Electric Stacker
1)Features
- Designed for stacking palettes on tacks and transporting goods on high racks
- Can be installed with new Tiller from REMA, Germany.
- The platform pedal ,defending bars and wide straddle leg are available.
- Heavy duty design with "H" style mast material
- Imported electric control system and hydraulic unit
- Operating steady and flexible
- Low noise, no pollution, and high reliability
- International typical style
- Conforms to EN 1757-1:2001, EN1726
2)Specification Date
Model | CDD1.2A | CDD1.5A | ||||
With wide Straddle Leg (CDDA-W) | / | CDD1.2A/45W | CDD1.2A/55W | CDD1.5A/45W | CDD1.5A/55W | |
Capacity Q | kg | 1200 | 1500 | |||
Max Lifting Height H3 | mm | 4500 | 5500 | 4500 | 5500 | |
Load Center C | mm | 600 | ||||
Fork Length | mm | 1150 | ||||
Single fork width | mm | 160 | ||||
Fork Width | mm | 560 | ||||
Overal width of legs | mm | 720 | ||||
Fork Height | mm | 90 | ||||
Free Lifting Height | mm | 1550 | 1717 | 1550 | 1717 | |
Min Height of Stacker | mm | 2175 | 2508 | 2175 | 2508 | |
Max Height of Stacker | mm | 5373 | 6373 | 5373 | 6373 | |
Traveling speed (Loaded/Unloaded) | km/h | 5.2/6.8 | ||||
Lifting speed (Loaded/Unloaded) | mm/s | 127/170 | ||||
Lowering speed (Loaded/Unloaded) | mm/s | 150/128 | ||||
Motor | Traveling | kw/v | 1.2/24 | |||
Lifting | kw/v | 3.0/24 | ||||
Front wheel | mm | Φ78x70 | ||||
Balance wheel | mm | Φ150x75 | ||||
Drive wheel | mm | Φ250x80 | ||||
Overall Dimension | Length | mm | 2175 | |||
Width | mm | 940 | ||||
Height | mm | 2175 | 2508 | 2175 | 2508 | |
Min Turning Radius | mm | 1525 | ||||
Battery | DG240AH/24V 200kg | |||||
Charger | Input 220V/50Hz, Output 24A/30V |
*** Optional platform and handrail.
3)Photos
4)Workshop
5)Certificate
Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.
6)Terms and Service
Lead time | 3-4 weeks |
Packing | Standard export fumigated wooden pallet, foam rubbers |
Payment term | T/T payment in advance; L/C at sight |
Lead term | FOB Shanghai or CFR/CIF |
Warranty period | 12 months |
Shipping method | by sea or air; by express |
7) Warranty Policy and Service Program
SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
