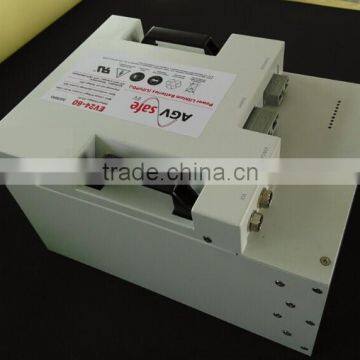

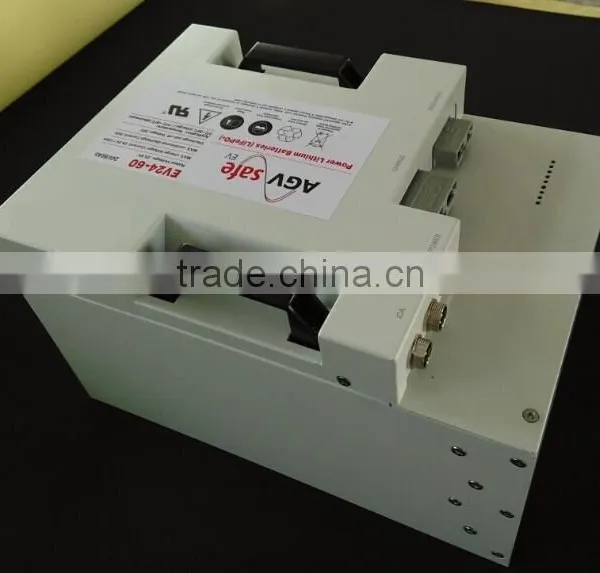

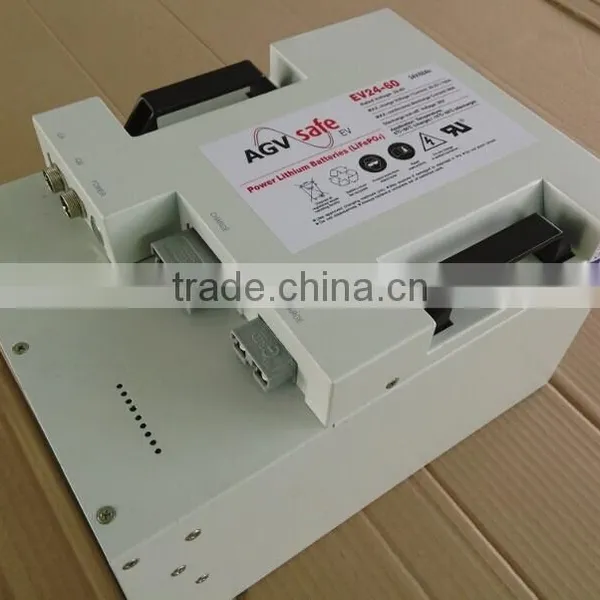

24V LiFePO4 Battery for AGV 60Ah, 48V100Ah

Name: 24V LiFePO4 Battery for AGV 60Ah, 48V100Ah
Brand: O'CELL
SKU: 143102010
Availability: InStock

Ocell New Energy Technology Co., Ltd. Gold Verified Supplier

5Yrs

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

O'CELL

Model Number:

24V60Ah

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name O'CELL

Model Number 24V60Ah

After-sales Service Provided Overseas third-party support available

24V LiFePO4 battery Specification

Nominal Voltage	25.6V
Max. Voltage	29.2V (adjustable)
Cut-off Voltage	20.8V (adjustable )
Max. continuous discharge current	30A @ 23° C
Max. continuous charge current	120A @ 23° C
Over-charge protection method	Main contactor would be cut-off when the battery is fully charged
Current measurement range	-120A (charging) ~ 60A (discharging), accuracy ±0.1A.
Voltage measurement accuracy	5mV
SOC(state of charge)measurement	0 ~ 20% SOC: 5% accuracy (voltage-temperature compensation) 20% ~ 80% SOC: 2% accuracy 80% ~ 100% SOC: 5% accuracy

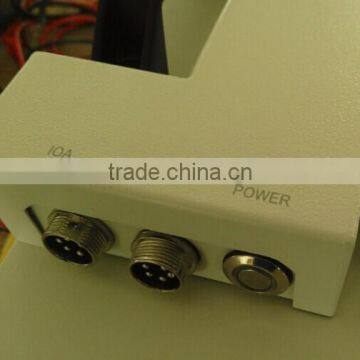

RS-485 communication	with host
AO	0V~5V
DO
LED indicator
working temperature	-10℃~60℃
storage temperature	-20℃~70℃
humidity	10%~80%

Other LiFePO4 AGV Battery

Model	Description	Part No.	Major Parameters

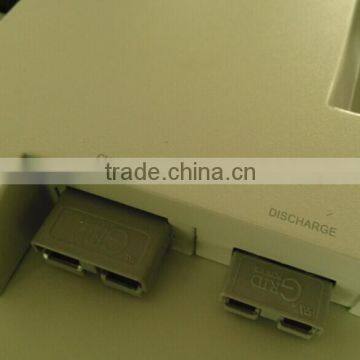

24V60AH	V1.0 Standard	A2460	24V60AH, Max charging 2C (≤10 min.), 1C (continuous). Discharging 0.5C(continuous). Charging terminal: 25mm²cable(300mm in length) & 120# Anderson Plug(gray); Discharging terminal: 6mm²cable (300mm in length) & 50# Anderson Plug (gray);
	V1.0 Standard + voltage regulator	A2460V	With voltage regulator
	V1.0 Standard + Fuse	A2460F	With fuse
	V1.0 Standard + voltage regulator +Fuse	A2460FV	With voltage regulator and fuse
	V2.0 Standard	L2460A	The same function with A2460, But dimension is different
	V2.0 Customized	L2460B	The same function with A2460, But dimension is different
24V40AH	Standard	A2440	24V40AH, Max charging2C (≤10 min.), 1C (continuous).
48V100AH	Standard	A48100	48V100AH, Max charging 2C (≤10 min.), 1C (continuous). Discharging 0.5C(continuous). Charging terminal: 50mm²cable(300mm in length) & 350# Anderson Plug(gray); Discharging terminal: 25mm²cable (300mm in length) &1250# Anderson Plug (gray);
48V200AH	Standard, Charging and discharging share same terminals	A48200	48V200AH, charging & discharging 1C (continuous). Charging & discharging terminal: 50mm²cable(300mm in length) & 350# Anderson Plug(gray)
