Coal Mining Conveyor With ISO BV Certificates And Best Price
- 80 Set / Sets per Month
- Shanghai Tianjin Qingdao or as required
- T/T L/C D/P D/A Credit Card PayPal
- New Material High Quality Crusher Manganese Plate Jaw For Sale
- grizzly vibrating screen machine price
- 2016 Top Selling Double Rotor Hammer Mill Crusher
- 2016 Hot Sale Double Rotor Hammer Mill Crusher Price
- Vibrating Screen Linear vibration screen for stone powder classifier Most Popular
- Double Rotor Hammer Crusher, Double Rotor Hammer Mill Crusher For Sale
Product Details
Condition: | New | Type: | Vertical Conveyor | Material: | Other, Rubber, Carbon steel |
Material Feature: | Fire Resistant | Structure: | Belt Conveyor | Load Capacity: | 278-546tph |
Place of Origin: | Henan, China | Brand Name: | jinma | Model Number: | TD75 |
Voltage: | 220V-480V | Power(W): | 7500-15000 | Certification: | ISO9001:2008, BV, CE, SGS |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard packing, Seaworthy packing, or as required
Product Description
Coal Mining Conveyor With ISO BV Certificates And Best Price

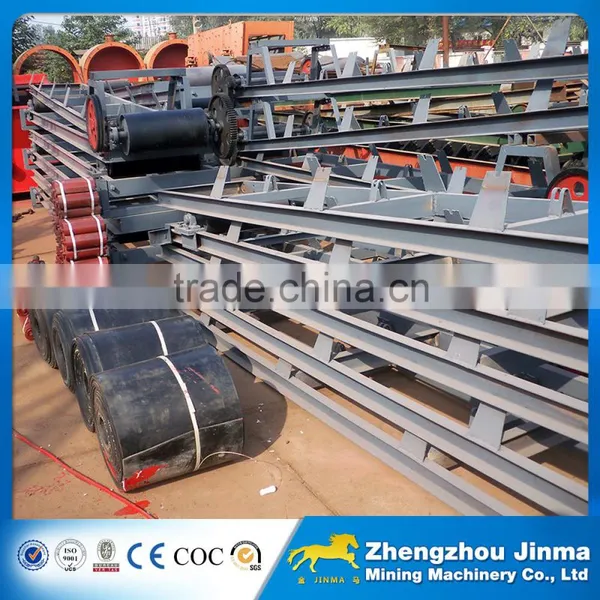

Specification of box steel and angle steel varies with different breadth of conveyor as follow

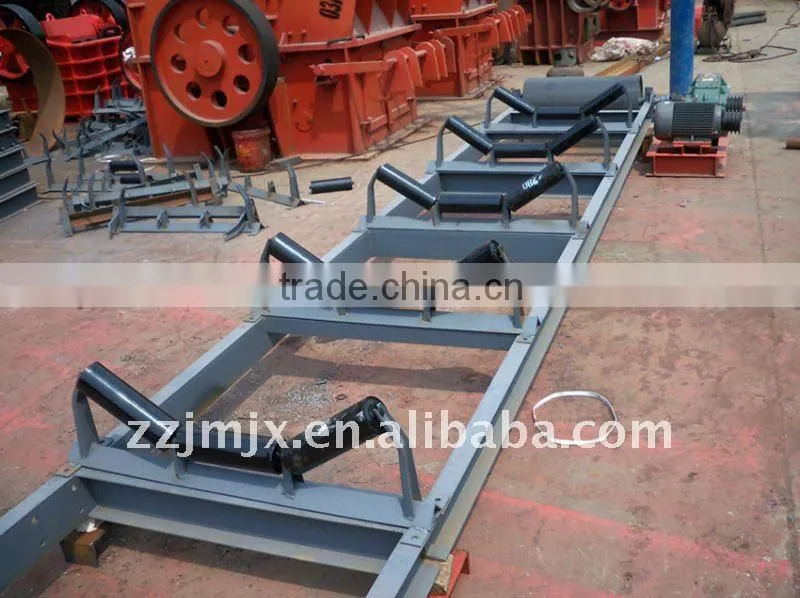

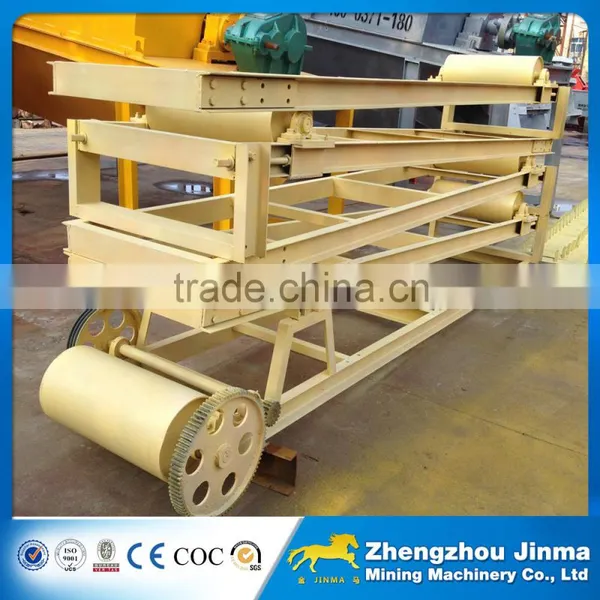

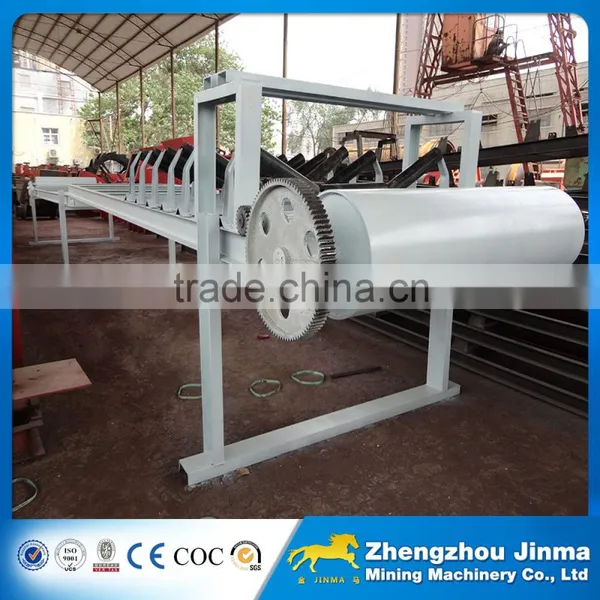

It is part of the conveyor,welded by angle iron(U-steel)

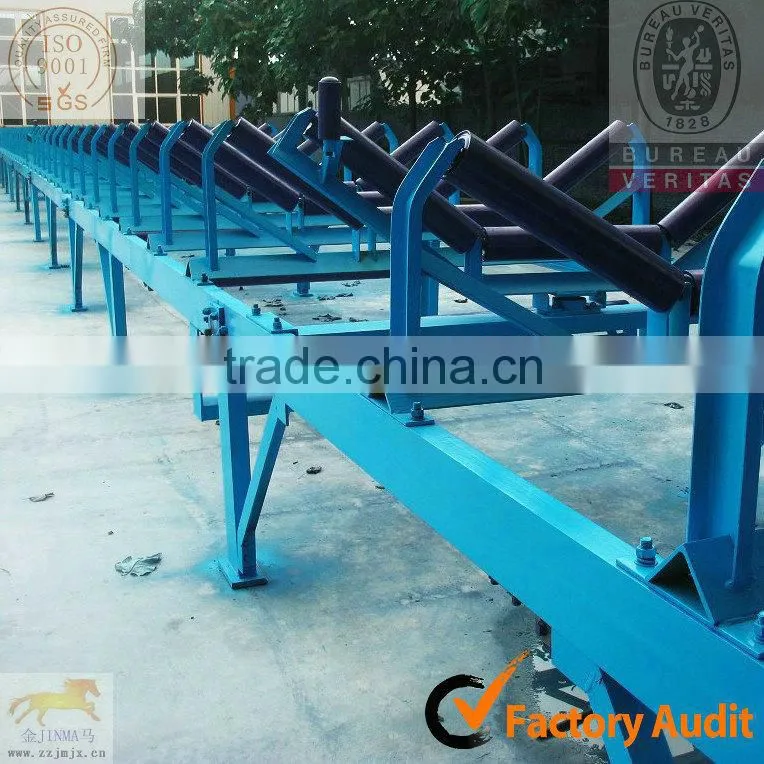

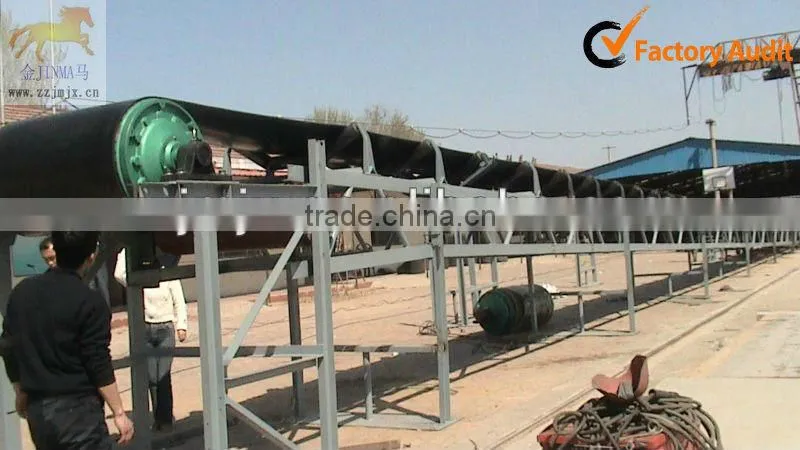

Conveyor landing leg
Conveyor technical parameter
Components of Conveyor

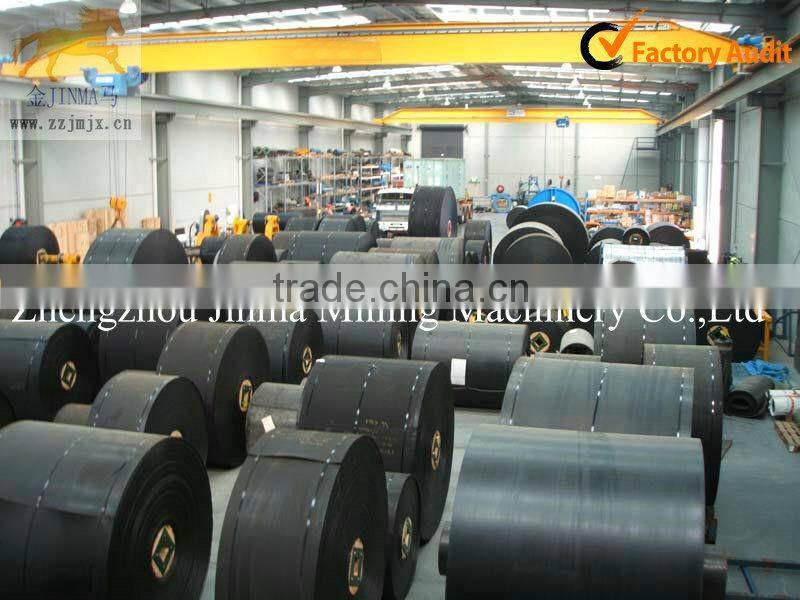

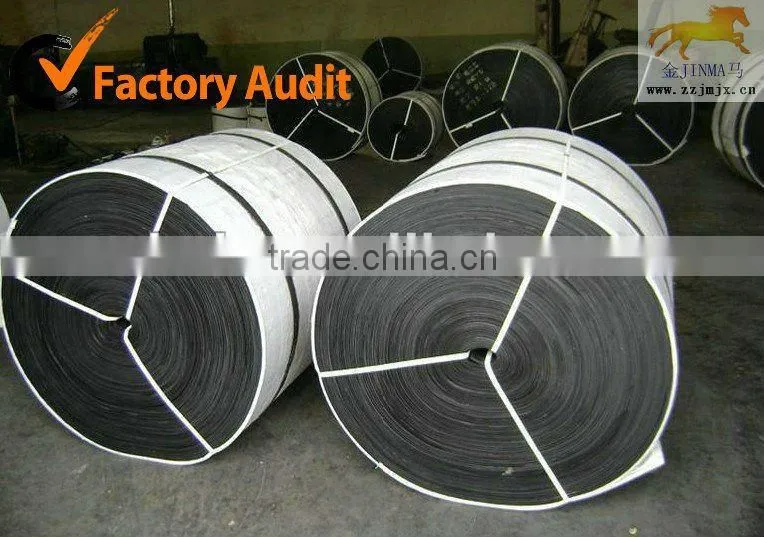

Belt | Belt is used for moving and supporting surface on which the conveyed material rides. It is the tractive element. The type of belt used need to depend on the nature of materials to be transported. | |

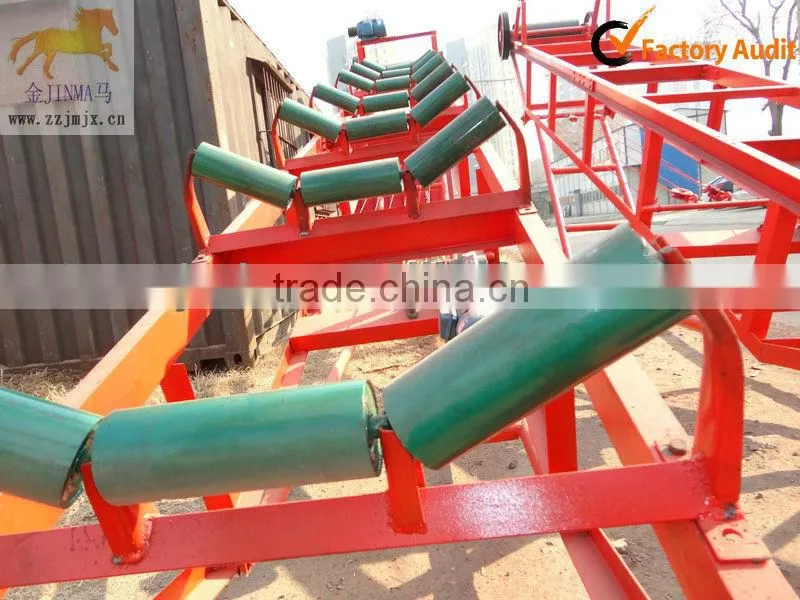

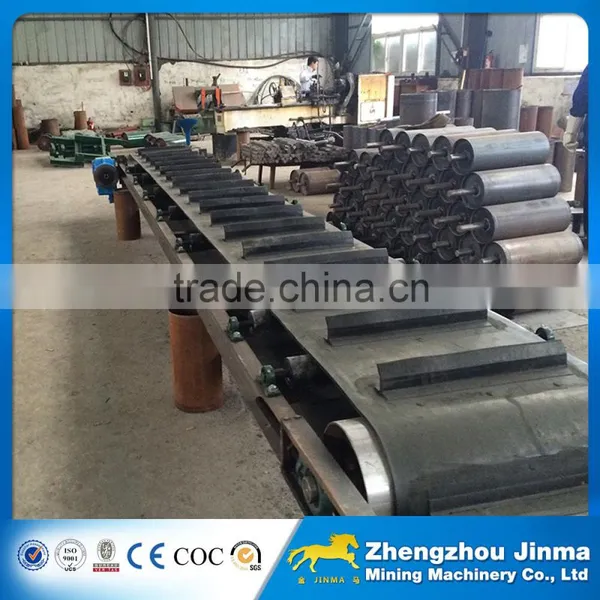

Idler | Idlers are the supports for the carrying and return stands of the belt. | |

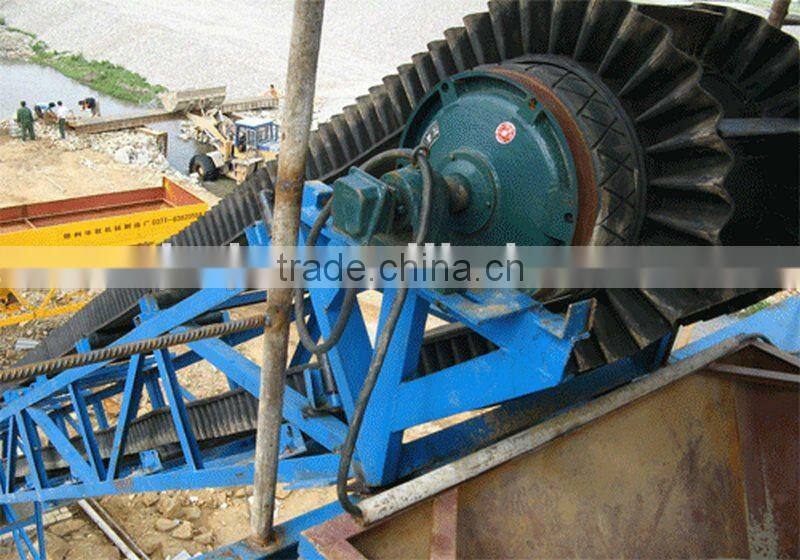

Drive | Drive that imparts power to one or more pulleys to move the belt and its loads. | |
Structure | Structure is the support and maintains the alignments of the idlers and pulleys. Besides, it also supports the driving machinery. | |

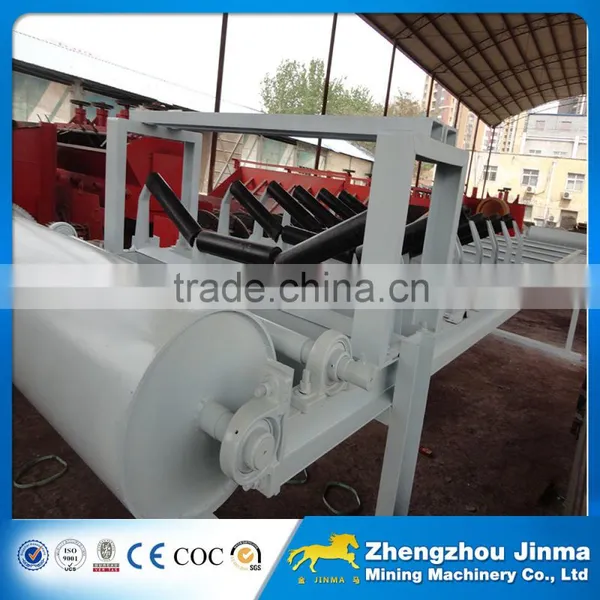

Pulley | A conveyor belt system uses different types of pulleys like end pulley, snub pulley, bend pulley etc. The end pulleys are used for driving and sometimes for making tensioning arrangements. Snub pulleys increase the angle of wrap thereby increasing the effective tension in the belt. The pulley diameter depends on the belt width and belt speed. Pulleys are used for providing the drive to the belt as well as for maintaining the proper tension to the belt. |
Conveyor features
The conveyers consist of standard parts, which are advanced and simple in structure, easy to maintain.
Our conveyor equipment is adaptable for stationary and mobile type.
Conveyor can be horizontal, tilt and vertical transmission, but also the composition of space transmission lines,
transmission lines are generally fixed.
Conveyor application

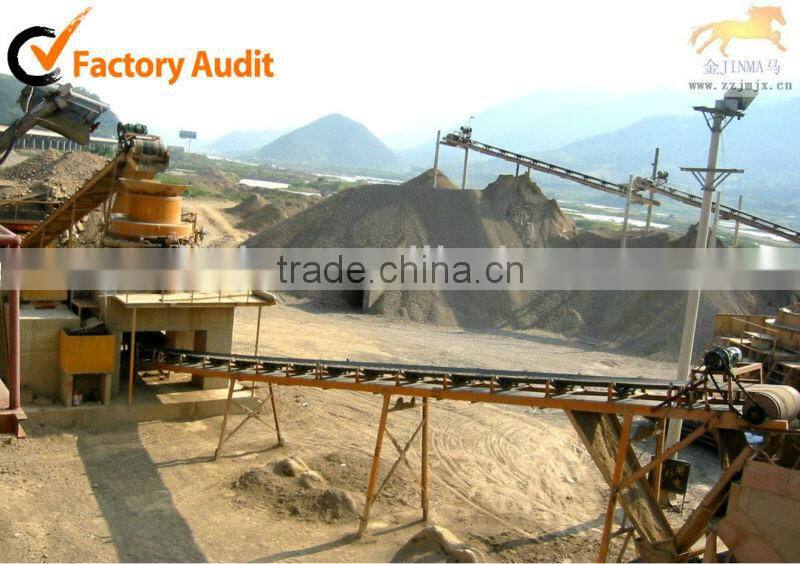

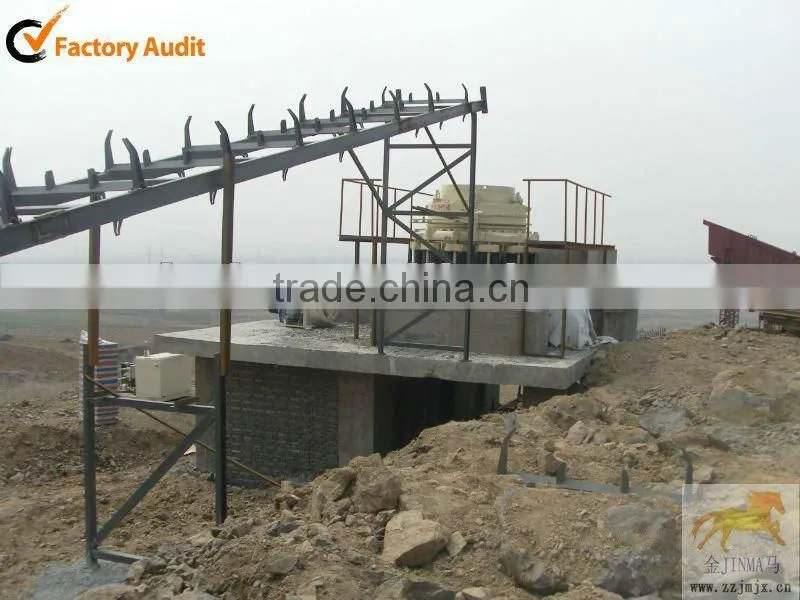

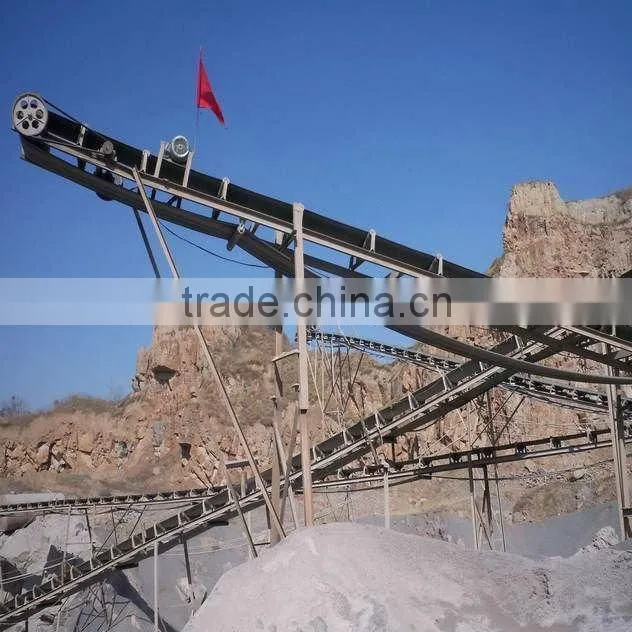

conveyor is adaptable to both stationary and mobile crushing plants, it is widely used in mining, metallurgical
and coal industry to transfer sandy or lump materials, or packaged materials
Conveyor working principle
Conveyor is composed by two endpoint pulleys and a closed conveyor belt.

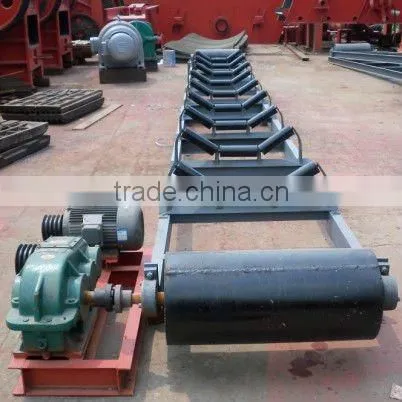

The pulley that drives conveyor belt rotating is called drive pulley or transmission drum; the other one–only used to change conveyor belt movement direction–is called bend pulley. Drive pulley is driven by the motor through reducer, and conveyor belt dragging relies on the friction drag between the drive pulley and the conveyor belt. The drive pulleys are generally installed at the discharge end in order to increase traction and be easy to drag. Material in feed side and landed on the rotating conveyor belt, then rely on the conveyor belt friction to be delivered to discharge end.
Amy Geng
Zhengzhou Jinma Mining Machinery Co., Ltd.
Tel: 86-371-67511065 Fax: 0086-371-67512579
Mobile:86-138-1857-9591
Website:
Skype: hello-sky6428
Company Profile
Zhengzhou Jinma Mining Machinery Co., Ltd. was established in 1976 subordinated to China CMIIC Engineering & Construction Corporation (CMIIC), the company specializes in manufacturing large and medium-size crushers, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines. Located in No. 8 Dianchang Road, Zhengzhou and covers an area of 3500 square meters, the company's total annual sales reached one hundred and fifty million RMB, with annual export sales about six million USD.
Crushing equipments includes jaw crusher, impact crusher, PCZ single-stage hammer crusher, DPC single-stage fine crusher, PXJ fine crusher (Third generation sand making machine), PC hammer crusher, PCH ring hammer crusher, PCL vertical composite crusher, and roller crusher. These equipments are applicable to construction, metallurgy, building material, mineral processing, coal mine, etc.
Mineral processing equipments includes MQG ball mill, MQS ball mill, GZMY energy-saving ball mill, MQGZ super energy-saving ball mill, MQGT super energy-saving ball mill, MQGMC super energy-saving ball mill, spiral classifier, flotation machines, magnetic separator, rotary dryer, etc. All the equipments are applicable to the beneficiation of iron, copper, gold, silver, lead, zinc, tungsten, molybdenum, manganese and other non-ferrous concentrating.
The company has passed ISO9001: 2008 quality management system, CE certification, SGS and BUREAU VERITAS factory audit. It has independent Imp. & Exp. right, R&D center, production base, QC, Marketing and after-sales service department.
While expanding domestic market constantly, the products are exported to over 70 countries like Chile, Peru, Costa Rica, USA, Vietnam, Indonesia, Malaysia, India, Philippines, Pakistan, Iran, Russia, Kazakhstan, Azerbaijan, Turkey, North Korea, South Africa, Tanzania, Ghana, etc.
With the goal of "The excellence, the better" and "Satisfaction from customers" as the eternal pursuit, we sincerely welcome clients from all over the world to come for a visit, and establish long term win-win cooperation.
