Home > Industrial Equipment & Components > Conveyor & Parts > Conveyor > CDD-B Wide View Mast Full Electric Stacker

CDD-B Wide View Mast Full Electric Stacker

Name: CDD-B Wide View Mast Full Electric Stacker
Brand: SINOLIFT
SKU: 132448865
Availability: InStock

CDD-B Wide View Mast Full Electric Stacker thumbnail-1

CDD-B Wide View Mast Full Electric Stacker thumbnail-2

CDD-B Wide View Mast Full Electric Stacker thumbnail-3

CDD-B Wide View Mast Full Electric Stacker photo-1

CDD-B Wide View Mast Full Electric Stacker photo-2

CDD-B Wide View Mast Full Electric Stacker photo-3

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

SINOLIFT

Model Number:

CDD-B

Contact Supplier Request Quote Chat Now

Shanghai Sinolift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name SINOLIFT

Model Number CDD-B

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Full Electric Stacker
1.Capacity: 1200-2000kg
2. Max. Lifting Height: 1600-3500mm
3. Electric moving and lifting

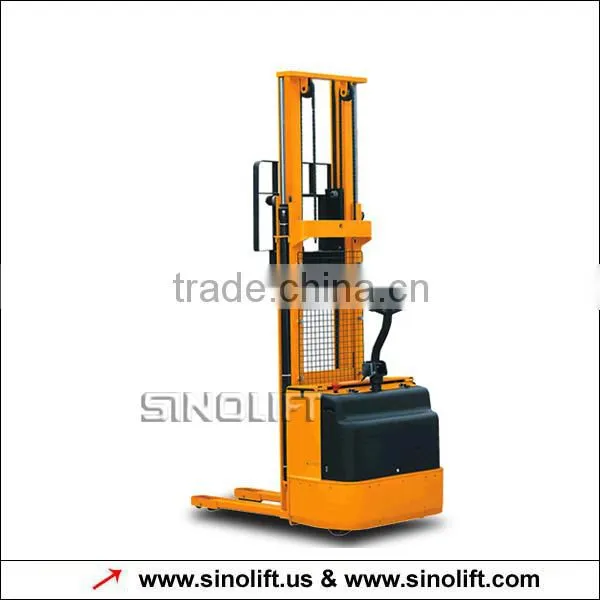

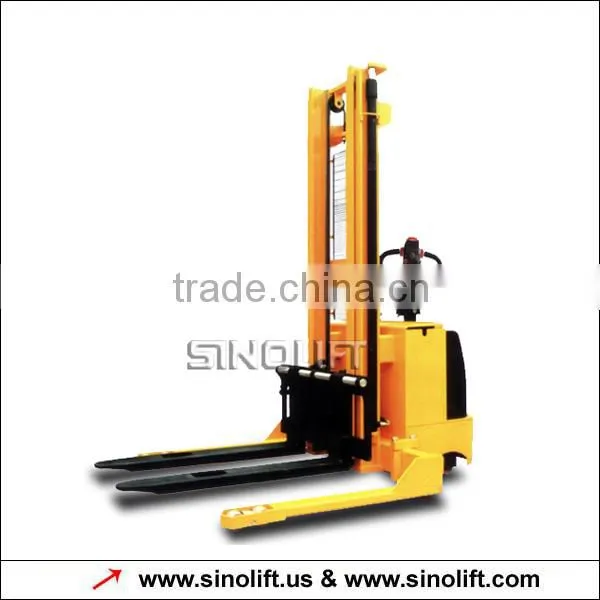

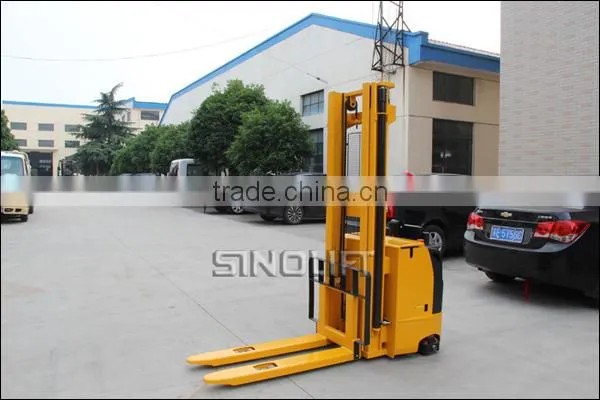

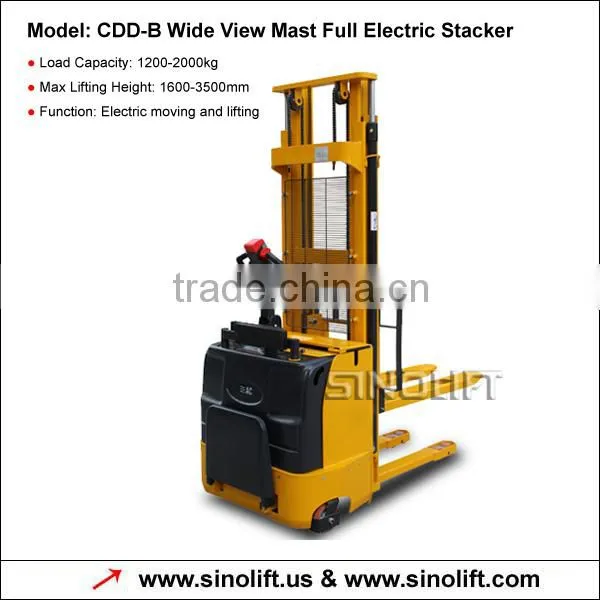

CDD-B Wide View Mast Full-Electric Pallet Stacker

1)Features

- Reinforced heavy duty mast material

- Double cylinder are mounted on both side for wide view while loading and transporting.
- Low noise, no pollution, and high reliability
- Imported electric control unit and hydraulic unit made in Europe.
- High stability and good operating flexibility
- Traditionally international style

2)Specification Date

Model			CDD1.2B
Standard (CDD-B)			//	CDD1.2B/24	CDD1.2B/29	CDD1.2B/31	CDD1.2B/33	CDD1.2B/35
With Stand-On Platform (CDD-B-T)			//	CDD1.2B/24T	CDD1.2B/29T	CDD1.2B/31T	CDD1.2B/33T	CDD1.2B/35T
With wide Straddle Leg (CDD-B-W)			CDD1.2B/16W	CDD1.2B/24W	CDD1.2B/29W	CDD1.2B/31W	CDD1.2B/33W	CDD1.2B/35W
Capacity		kg	1200
Load Center	CDD-B,CDD-B-T	mm	//	600
Load Center	CDD-B-W	mm	500	500
Max. Lifting Height		mm	1600	2450	2900	3100	3300	3500
Height of Stacker	CDD,CDD-T	mm	//	1800	2025	2125	2225	2325
Height of Stacker	CDD-W	mm	2166	1876	2101	2201	2301	2301
Length of stacker	CDD-B	mm	2073	2073
	CDD-B-T	mm	2567	2567
	CDD-B-W	mm	1972	1972
Fork Length	CDD-B,CDD-B-T	mm	//	1150 (Steel plate forks)
Fork Length	CDD-B-W	mm	1000 (Forged plate forks)
Fork Width	CDD-B,CDD-B-T	mm	540/680
Fork Width	CDD-B-W	mm	230~790
Width of Stacker	CDD-B,CDD-B-T	mm	860
Width of Stacker	CDD-B-W	mm	940	940	940	1080	1080	1080
Battery( Service Free)		Ah/V	200/24

Model			CDD1.5B
Standard (CDD-B)			//	CDD1.5B/24	CDD1.5B/29	CDD1.5B/31	CDD1.5B/33	CDD1.5B/33
With Stand-On Platform (CDD-B-T)			//	CDD1.5B/24T	CDD1.5B/29T	CDD1.5B/31T	CDD1.5B/33T	CDD1.5B/35T
With wide Straddle Leg (CDD-B-W)			CDD1.5B/16W	CDD1.5B/24W	CDD1.5B/29W	CDD1.5B/31W	CDD1.5B/33W	CDD1.5B/35W
Capacity		kg	1500
Load Center	CDD-B,CDD-B-T	mm	//	600
Load Center	CDD-B-W	mm	500	500
Max. Lifting Height		mm	1600	1600	2900	3100	3300	3500
Height of Stacker	CDD,CDD-T	mm	//	1800	2025	2125	2225	2325
Height of Stacker	CDD-W	mm	2166	1876	2101	2201	2301	2301
Length of stacker	CDD-B	mm	2073	2073
	CDD-B-T	mm	2567	2567
	CDD-B-W	mm	1972	1972
Fork Length	CDD-B,CDD-B-T	mm	//	1150 (Steel plate forks)
Fork Length	CDD-B-W	mm	1000 (Forged plate forks)
Fork Width	CDD-B,CDD-B-T	mm	540/680
Fork Width	CDD-B-W	mm	230~790
Width of Stacker	CDD-B,CDD-B-T	mm	860
Width of Stacker	CDD-B-W	mm	940	940	940	1080	1080	1080
Battery( Service Free)		Ah/V	200/24

Model			CDD2.0B
Standard (CDD-B)			//	CDD2.0B/24	CDD2.0B/29	CDD2.0B/31	CDD2.0B/33	CDD2.0B/33
With Stand-On Platform (CDD-B-T)			//	CDD2.0B/24T	CDD2.0B/29T	CDD2.0B/31T	CDD2.0B/33T	CDD2.0B/35T
With wide Straddle Leg (CDD-B-W)			CDD2.5B/16W	CDD2.0B/24W	CDD2.0B/29W	CDD2.0B/31W	CDD2.0B/33W	CDD2.0B/35W
Capacity		kg	2000
Load Center	CDD-B,CDD-B-T	mm	//	600
Load Center	CDD-B-W	mm	500	500
Max. Lifting Height		mm	1600	1600	2900	3100	3300	3500
Height of Stacker	CDD,CDD-T	mm	//	1800	2025	2125	2225	2325
Height of Stacker	CDD-W	mm	2166	1876	2101	2201	2301	2301
Length of stacker	CDD-B	mm	2073	2073
	CDD-B-T	mm	2567	2567
	CDD-B-W	mm	1972	1972
Fork Length	CDD-B,CDD-B-T	mm	//	1150 (Steel plate forks)
Fork Length	CDD-B-W	mm	1000 (Forged plate forks)
Fork Width	CDD-B,CDD-B-T	mm	540/680
Fork Width	CDD-B-W	mm	230~790
Width of Stacker	CDD-B,CDD-B-T	mm	860
Width of Stacker	CDD-B-W	mm	940	940	940	1080	1080	1080
Battery( Service Free)		Ah/V	200/24

3)Photos

4)Workshop

5)Certificate

Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.

6)Terms and Service

Lead time	3-4 weeks
Packing	Standard export fumigated wooden pallet, foam rubbers
Payment term	T/T payment in advance; L/C at sight
Lead term	FOB Shanghai or CFR/CIF
Warranty period	12 months
Shipping method	by sea or air; by express

7) Warranty Policy and Service Program

SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.

Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.

If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.

SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
