Home > Products > New Products > BC-341 DC12-24V one channel dali led dimmer driver
BC-341 DC12-24V one channel dali led dimmer driver
- 5000 Perch / Perches per Month
- Zhuhai
- Credit Card PayPal
-
SP107E Programmable RGB APP Music Led Pixel Light Stripe Controller for WS2812 WS2801 Dream Color Led Strip
-
Gledopto Pro 5 IN 1 ZigBee and 2.4GHz RF Controllable LED Receiver GL-C-001P 12V-54V
-
Philips SES LSM1010 Occ PIR WH
-
Smart Home Zigbee Remote Control Led Bulb Light Controller Zigbee Remote Switch
-
Remote Control Led Bulb Light Controller Zigbee Remote Switch
-
Remote Control Led Bulb Light Controller Zigbee Remote Switch
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Bincolor | Model Number: | BC-341 |
| Type: | Manual Switch |
Product Description

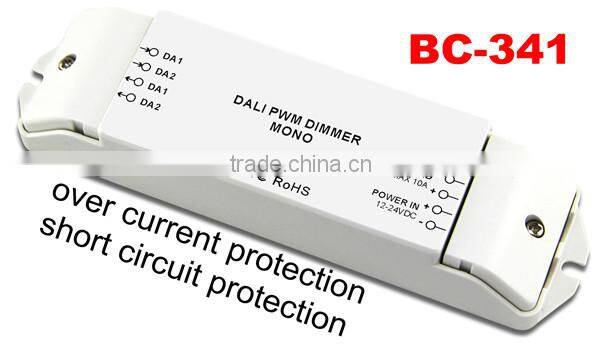

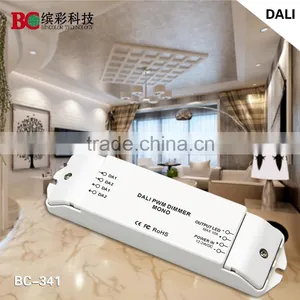

BC-341 DC12-24V one channel dali led dimmer driver
Introduction:
Welcome to use our DALI dimming driver, which input standard DALI signal and adopted the most advanced DALI standard IEC62386. It can meet with any equipment in line with the DALI protocol on a bus control, and realize the LED lighting products and traditional lighting integrate within the same set of lighting system. We also add short circuit protection and over-current protection in the driver, which avoid the LED lamp from being damage.

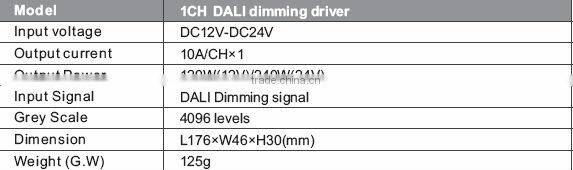

Product parameter:
Feature function:
1.Automatically adapts input voltage DC12V-24V.
2. can meet with any equipment in line with the DALI protocol on a bus control.
3. 4096 grey levels, lamplight soft and stable, without flickers.
4.With the DALI signal input optical isolation protection.
5.Over current protection and short circuit protection.

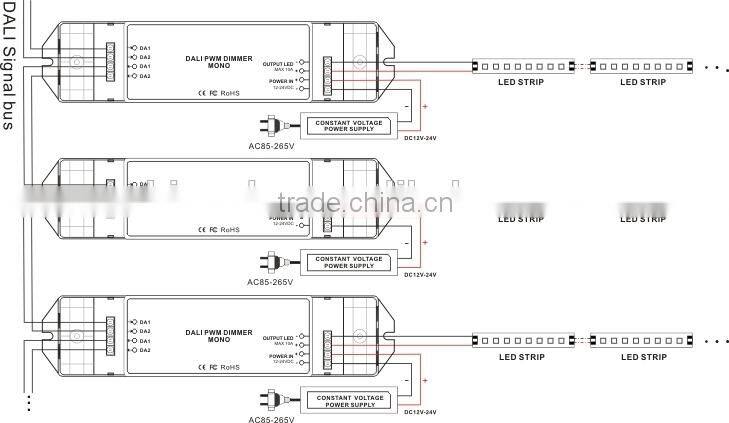

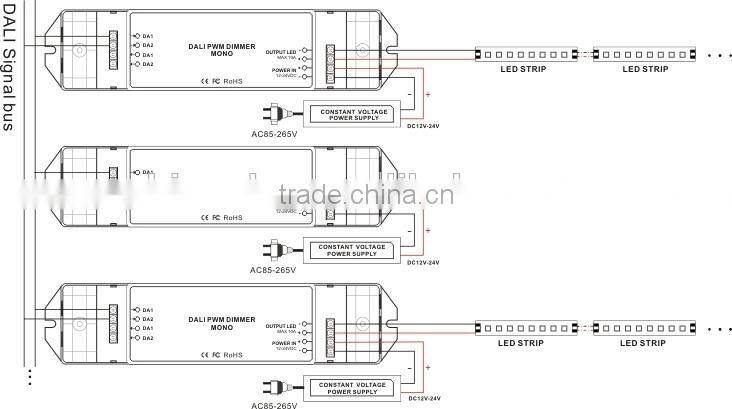

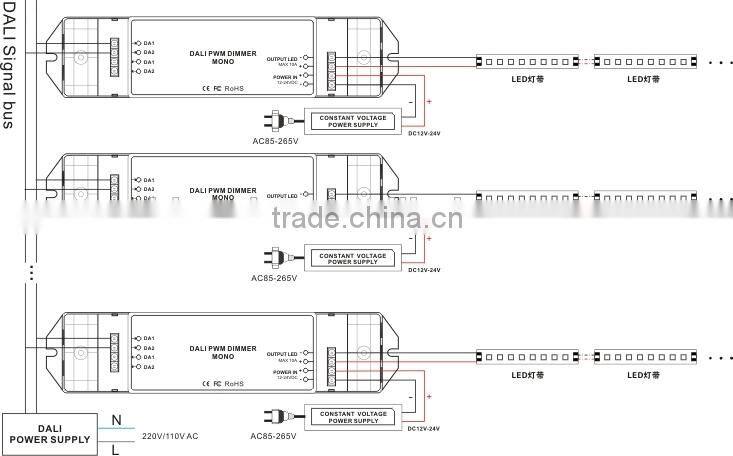

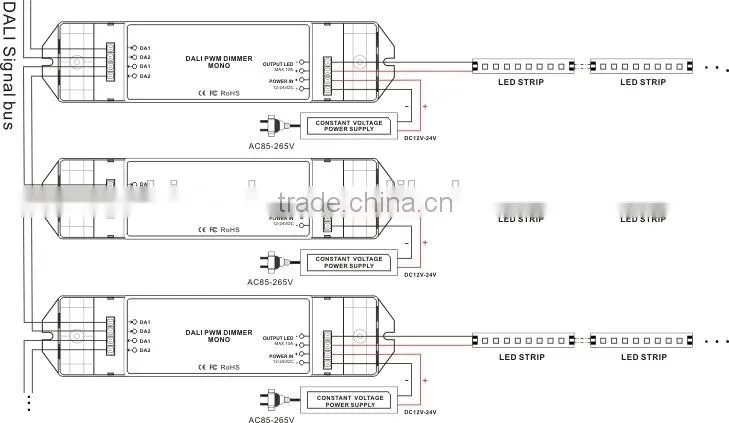

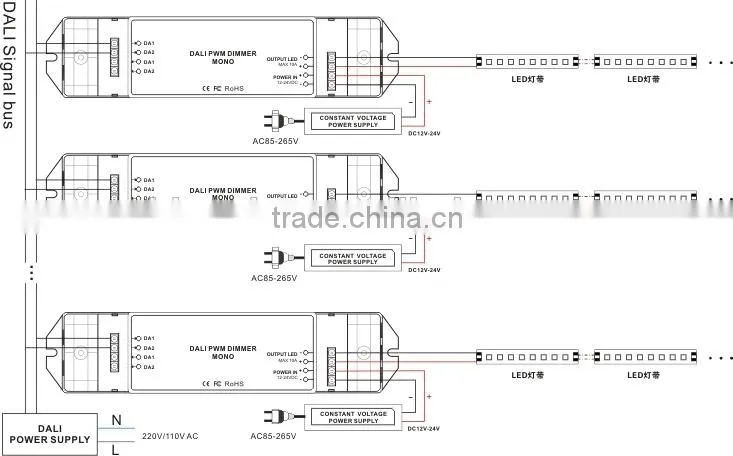

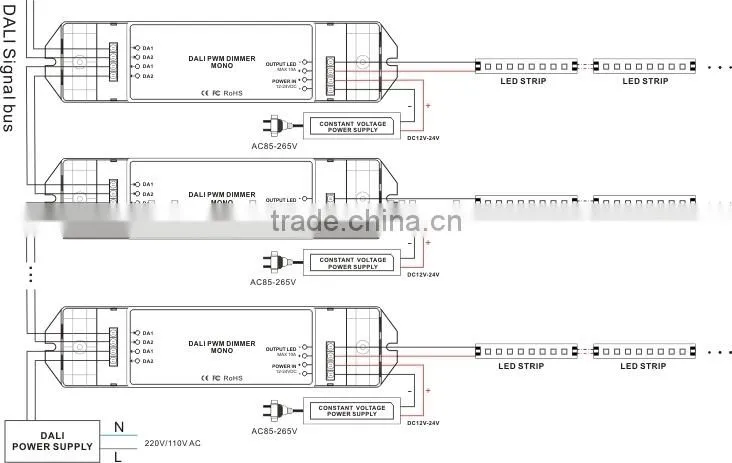

Ciruit diagram:

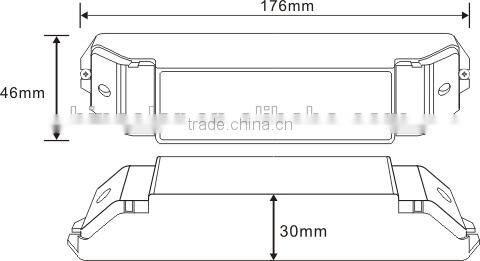

Dimension:
After inspection the goods are packed in white inner box and then carefully packed in cartons.
1. Professional advice according to your needs.
2. Instant response to your inquiries.
3. Short lead-time, quick delivery.
4. Three years warranty for all of our products.
5. Samples orders, OEM/ODM orders are also welcomed.
We are leading Manufacturer of LED controllers in Zhuhai, Guangdong province, China.
We are small, flexible and loyal. Ideal partner of your customize order.
We are strong in developing OEM and ODM projects, and customer's rights are the first things we consider about.
We are very competitive in price , well reputed for quality product and prompt delivery.
Welcome to discuss more in details.
Any question, welcome to contact me, all question will be answered within 24 hours or immediately on instant contact!
Christy Lai:
Skype: bincolor4
M:+86-13392981925
Sample order please access to our online shop: /store/205672
