Production Description |

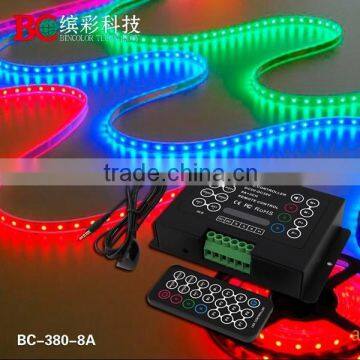

Bincolor with IR remote rgb led controller 12-24v
BC-380-6A , it is constant voltage rgb controller, it can control color changes of LED lights with 4-
pin 3-loop cables (common anode), with 18 changing mode, user can control changs by button on
the controller, or by IR REMOTE CONTROLLER.
Feature:
1. Automatic switch from DC12V-DC24V;
2. With 21 Buttons IR Wireless remote control, reliable control distance can reach
as far as 10m;
3. Several DIY Storage Buttons, to record your favorite mode
4. 0-100% dimming and 16 levels of static brightness per RGB, can mix 4096 colors.
5. 3-Channel RGB full color control, maximum outputs 6A per Channel.
6. 256Grey scales per RGB, color-smooth effect is gentle and accurate.
7. Can choose changing speed separately and adjust the brightness of each mode.
8. Can stop at current color and color brightness by selecting PAUSE function.
9. Working with our power repeater can expand power unlimitedly.
10.Power loss memory function.
11. Equipped with extension infrared receiver, more convenient to receive infrared signals.
| Name | Value |
| Brand | Bincolor |
| Model | BC-380-6A |
| Production Capacity | 5000Piece/Pieces per Month |
| Input voltage | DC 12V-DC24V |
Max load current |
6A/CH*3 |
Max load power |
220W(12V)/450W(24V) |
| Control Mode | 18modes |
Working Temperature |
-30°C~65°C |
| Certification | CE ,FCC ROSH |
| Dimension(L*W*H) | L142xW73xH30 mm |
| Weight | 350g |
| Scale level | 256/CH*3 |
|
Details show |
|
Application |

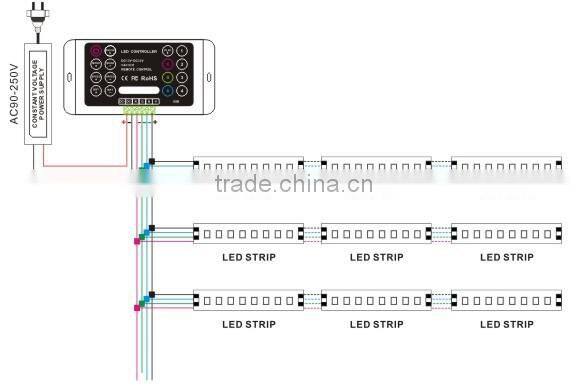

Typical Wiring Schematics:
1. RGB controller BC-380-6A and RGB LED strips.
2. RGB controller BC-380-6A, LED power repeater BC-960 and RGB LED strips.
|
Shipping |
1.EMS/DHL/FEDEX/UPS and so on
2.EXPRESS: around 5-7 working days to arrived
|
Certification |
|
Packing |
After inspection the goods are packed in inner box and then carefully packed in cartons.
|
Services |
- Professional advice according to your needs.
- Instant response to your inquiries.
- Short lead-time, quick delivery.
- Three years warranty for all of our products.
- Samples orders, OEM/ODM orders are also welcomed
|
