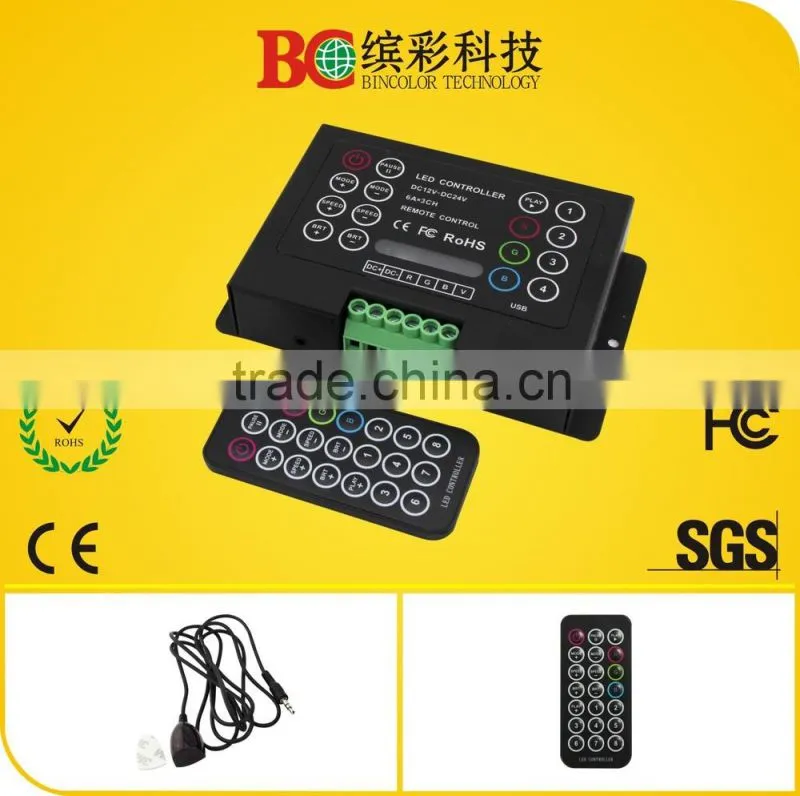

DC12V rgb controller IR infrared led controller RGB controller for led strip
BC-380-6A RGB controller is a unique DIY version as well as a powerful combination that can control color
changes of LED lights with 4-pin 3-loop cables (common anode), built-in 18 modes with touch functional
buttons, provided with IR wireless remote control panel.
Feature
- Working form voltage DC12V~24V.
- 3-channel RGB full color control. maximum outputs 6A per Channel.
- 256 Grey scales per RGB, color-smooth effect is gentle and accurate
- With 21 Buttons IR Wireless remote control
- power loss momery function
- 0-100% dimming
Specification
| Name | Value |
| Brand | Bincolor |
| Model | BC-380-6A |
| Production Capacity | 5000Piece/Pieces per Month |
| Input voltage | DC 12V-DC24V |
Max load current |
6A/CH*3 |
Max load power |
220W(12V)/450W(24V) |
| Control Mode | 18modes |
Working Temperature |
-30°C~65°C |
| Certification | CE ,FCC ROSH |
| Dimension(L*W*H) | L142xW73xH30 mm |
| Weight | 350g |
| Scale level | 256/CH*3 |
|
Details show IR rgb led controller |
|
Application |
it can control color changes of LED lights with 4-pin 3-loop cables (common anode)
Typical Wiring Schematics:

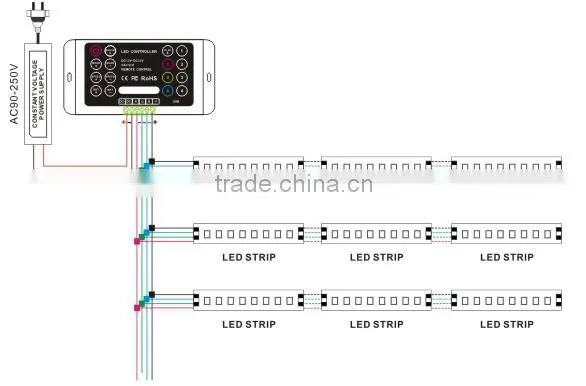

1. RGB controller BC-380-6A and RGB LED strips.

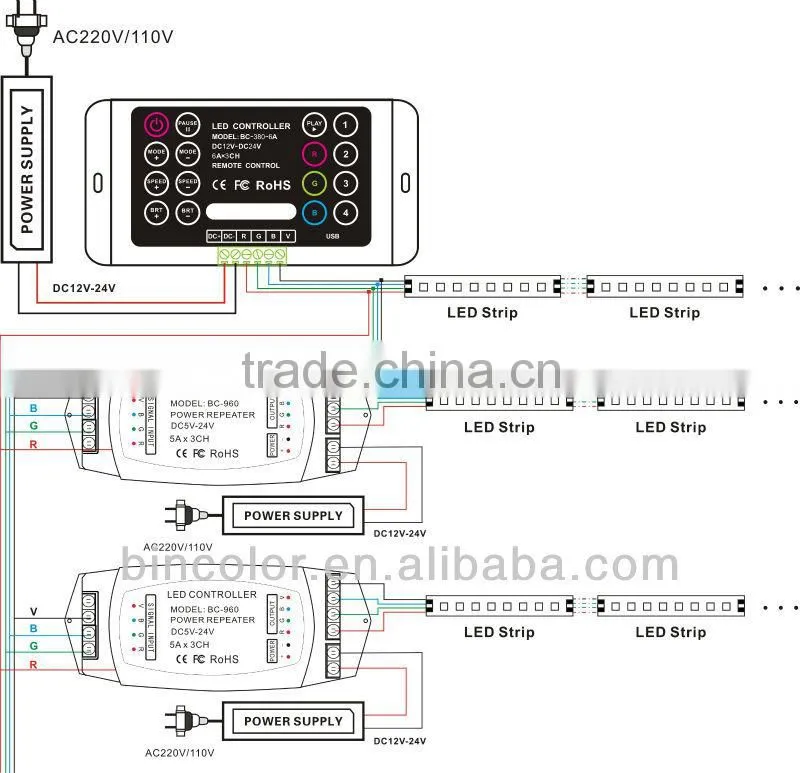

2. RGB controller BC-380-6A, LED power repeater BC-960 and RGB LED strips.
