Remote Control RGB controller DC12V-24V LED Strip Controller DIY controller
BC-380-6A RGB controller is a unique DIY version as well as a powerful combination that can control color
changes of LED lights with 4-pin 3-loop cables (common anode), built-in 18 modes with touch functional
buttons, provided with IR wireless remote control panel, users can control color changes of LED light by
pressing the button on the controller or on the remote control panel, very users friendly.

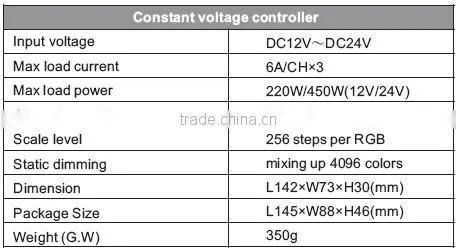

Specification
Feature function
1. Automatic switch from DC12V-DC24V;
2. With 21 Buttons IR Wireless remote control, reliable control distance can reach as far as 10m;
3. Several DIY Storage Buttons, to record your favorite modes ;
4. 0-100% dimming and 16 levels of static brightness per RGB, can mix 4096 colors.
5. 3-Channel RGB full color control, maximum outputs 6A per Channel.
6. 4096 Grey scales per RGB, color-smooth effect is gentle and accurate.
7. Can choose changing speed separately and adjust the brightness of each mode.
8. Can stop at current color and color brightness by selecting PAUSE function.
9. Working with our BC-960, can expand power unlimitedly.
10. Power loss memory function.
|
Details show |

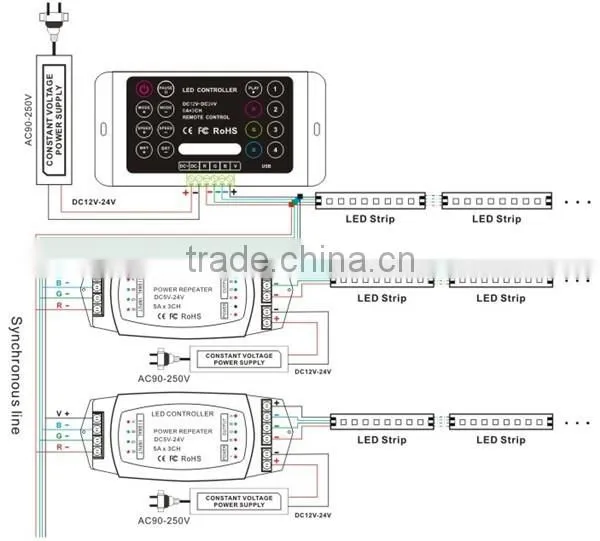

Typical Wiring Schematics:
1. RGB controller BC-380-6A and RGB LED strips.
2. RGB controller BC-380-6A, LED power repeater BC-960 and RGB LED strips.
