DC12V-24V 2 channels dmx512 dimmer DMX decoder dmx512 master controller
Introduction:
Welcome to use the DMX512 Constant Voltage Decoder which is developed only for constant voltage LED lamps. It adopted advanced microcomputer control technology to transfer standard DMX512/1990 signal to PWM signal. user can choose 1~2 output channels,max 8A output each channel, 4096 Grey Scales. It can be used as DMX512 master or as DMX decoder to connect computerized digital output consol with analog silicon case and controls LED lamps of architecture and lighting.
Feature:
1.Automatically adapt input voltage DC12V-24V.
2. Input standard DMX512 signal; 3-digital-display shows DMX address code..
3.2 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.
4.DMX Master mode, Slave mode available.
5.4 color changing modes and 10 speed scales in master mode .
6.Indicator of the DMX512 signal receiving status.
7.Wrong wiring protection at DMX input port.Over current protection and short circuit protection.
8. Power loss memory function.

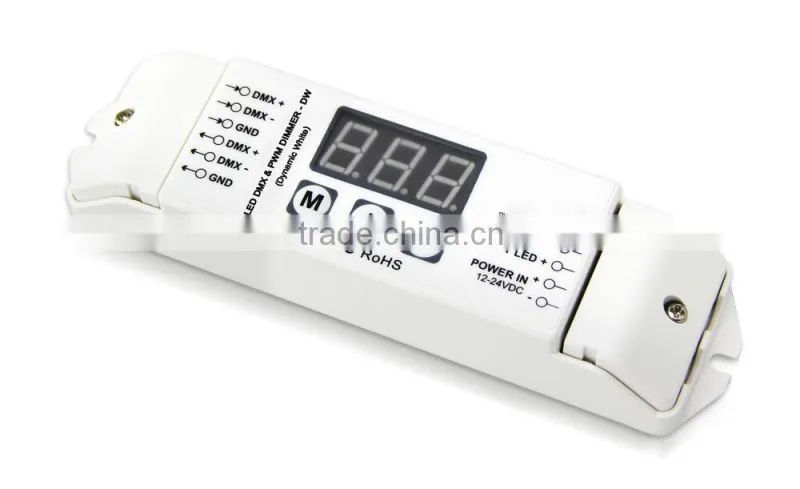

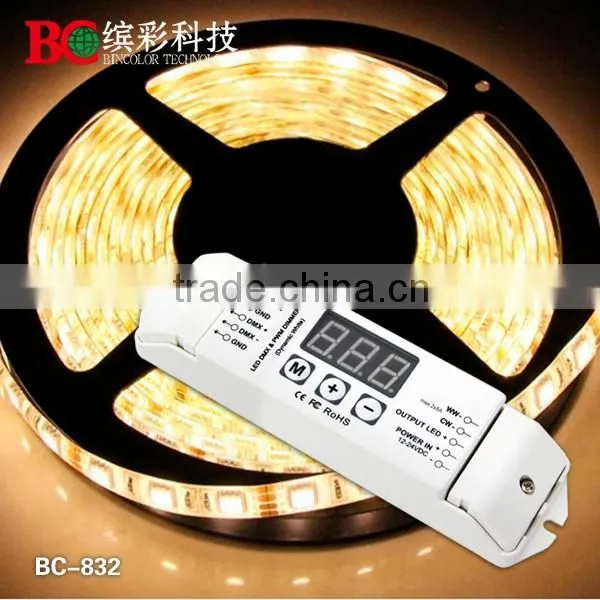

Product show:
Wiring Dragram :

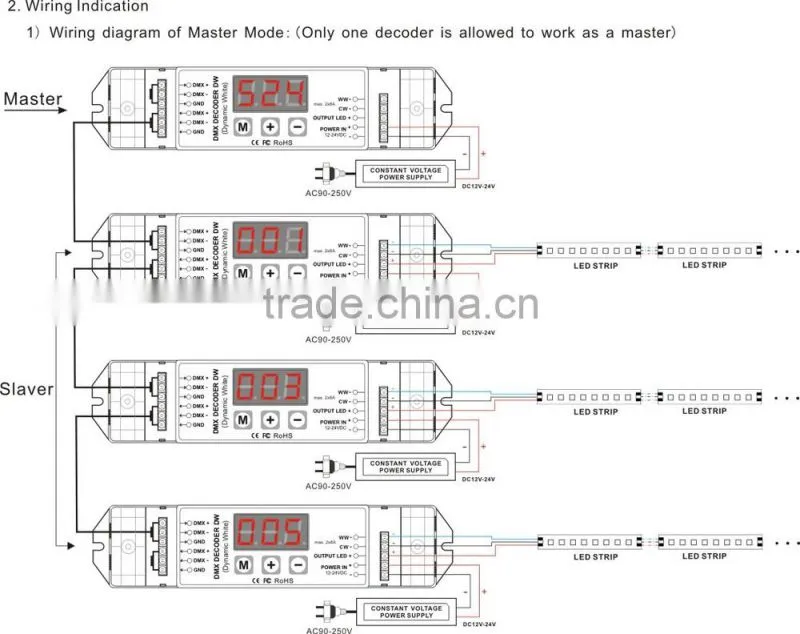

1. Work as Master Mode:(Only one decoder is allowed to work as a master)

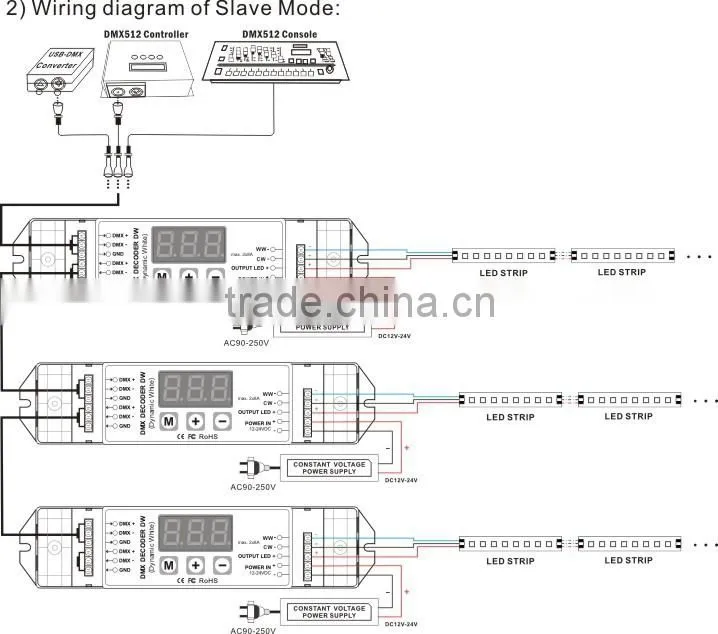

2. Work as slave mode:
All the products will process aging test before ship out. Quality guarantee.
