DC12V-24V rgb controller ir remote wireless led controller rgb strip DC12V
Brief Introduction :

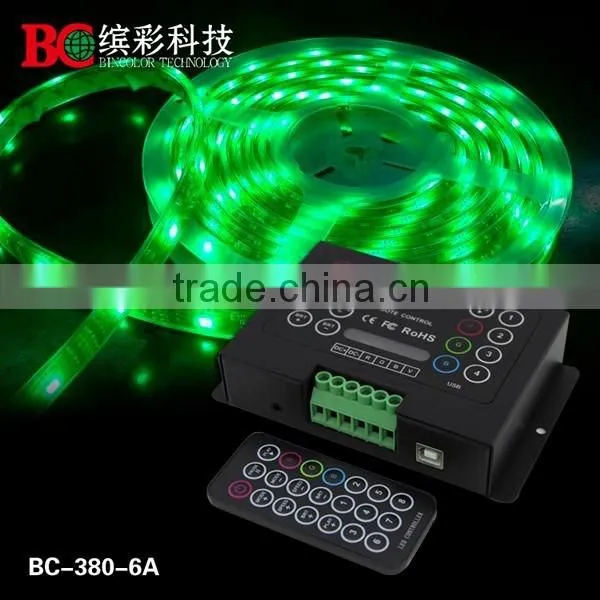

BC-380-6A RGB controller is a unique DIY version as well as a powerful combination that can control color
changes of LED lights with 4-pin 3-loop cables (common anode).
built-in 18 modes with touch functional buttons, provided with IR wireless remote control panel, users can
control color changes of LED light by pressing the button on the controller or on the remote control panel.
Product parameter:
Constant voltage controller | |
Input voltage |
DC12V~DC24V |
Max load current |
6A/CH×3 |
Max load power |
220W/450W(12V/24V) |
Changing mode |
18 modes |
Scale level |
4096 steps per RGB |
Static dimming |
mixing up 4096 colors |
Dimension |
L142×W73×H30(mm) |
Package Size |
L145×W88×H46(mm) |
Weight (G.W) |
350g |
Feature function:
1. Automatic switch from DC12V-DC24V
2. With 21 Buttons IR Wireless remote control, reliable control distance can reach as far as 10m
3. Several DIY Storage Buttons, to record your favorite modes
4. 0-100% dimming and 16 levels of static brightness per RGB, can mix 4096 colors.
5. 3-Channel RGB full color control, maximum outputs 6A per Channel.
6. 4096 Grey scales per RGB, color-smooth effect is gentle and accurate.
7. Can choose changing speed separately and adjust the brightness of each mode.
8. Can stop at current color and color brightness by selecting PAUSE function.
9. Working with our BC-960, can expand power unlimitedly.
10. Power loss memory function.
Conjunction Diagram

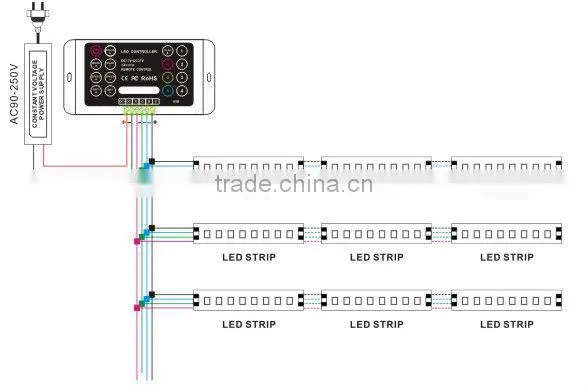

1. Connect with led strips :

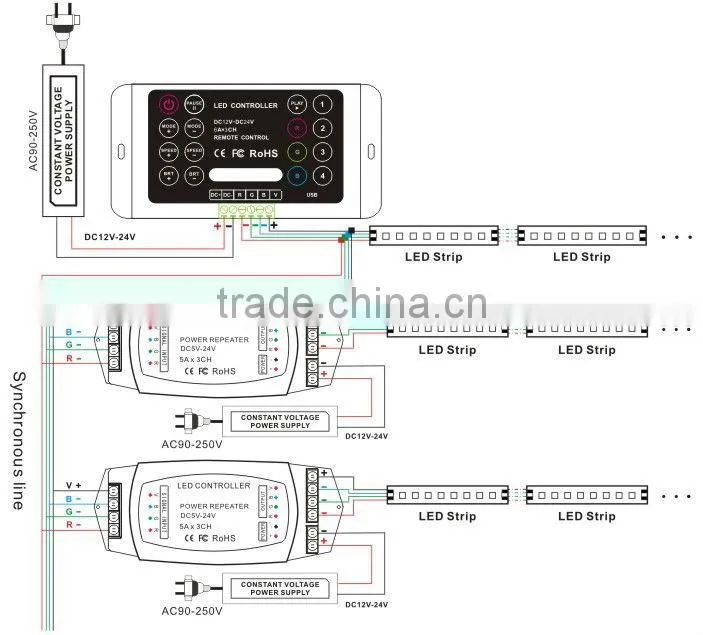

2. connect to power repeater :
