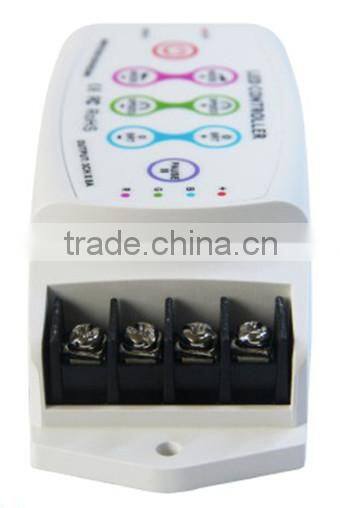

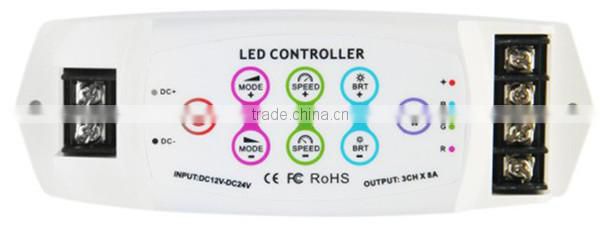

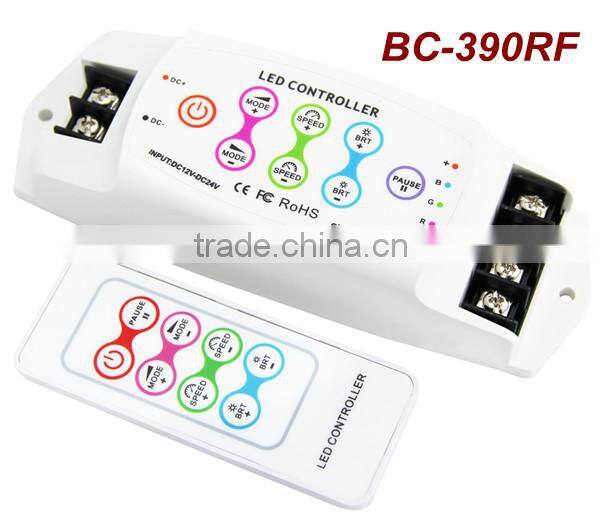

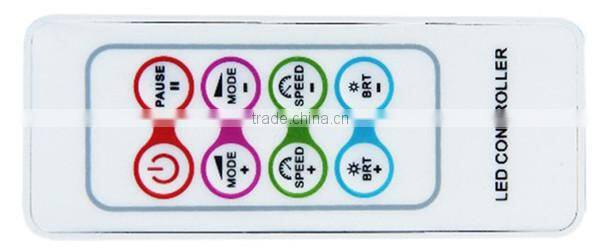

Bincolor touch panel and RF remote control rgb led strip 12v controller
Introduction :
BC-390 rgb controller is used to control DC12V-DC24V input constant voltage rgb led lightings such as rgb LED strip, led module. Led SMD tape etc.
With 36 pre-loaded programs:1-7 modes is static modes with brightness controls . 8-35 is Dynamic modes with speed and brightness controls , the last mode is Cycle mode. You can simply select your favorite mode.
Feature :
1.Installer-friendly: easy to install, mount and configure
2.Touch type,with RF remote ,4096 scale level each channel
3.36 fantastic modes, speed and brightness can adjust
4.Power loss memory function
5.Over current protection and short circuit protection
6. 3 years warranty , with CE FCC Rohs certifictaion

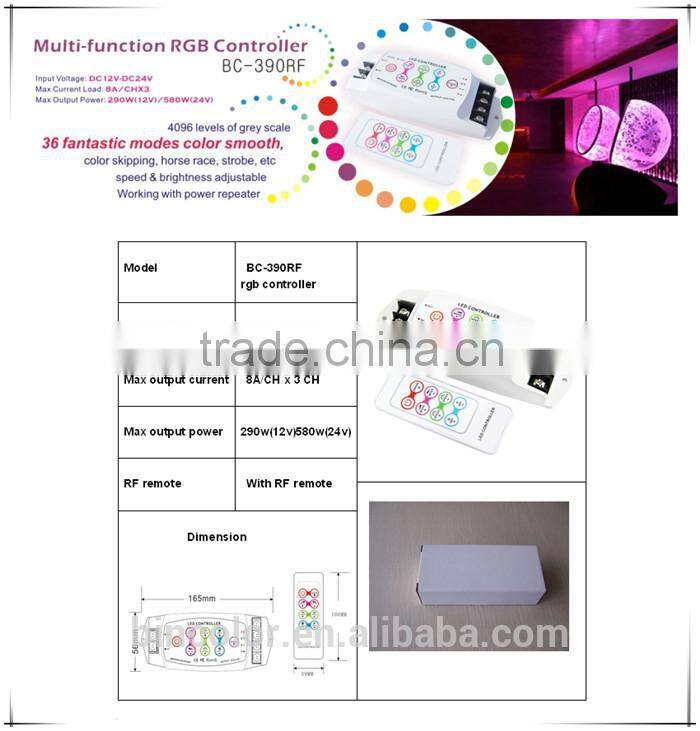

Specification:
|
Input voltage
|
DC12V-DC24V |
|
Output current
|
8A/CH x 3 |
|
Output power
|
290w(12v) 580w(24v) |
|
Scale level
|
4096 level/ CH x 3 CH |
|
Remote control
|
RF Remote |

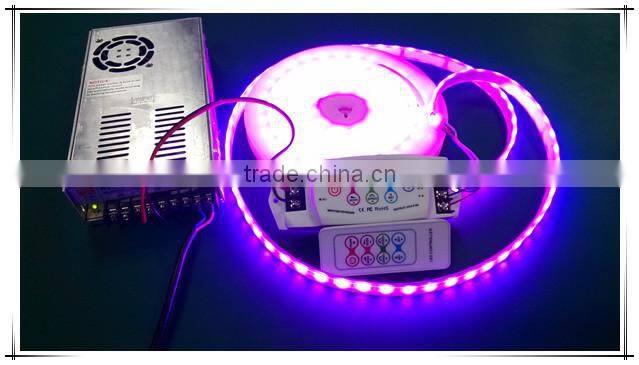

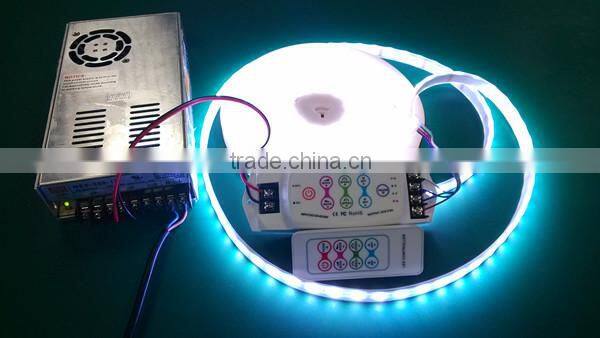

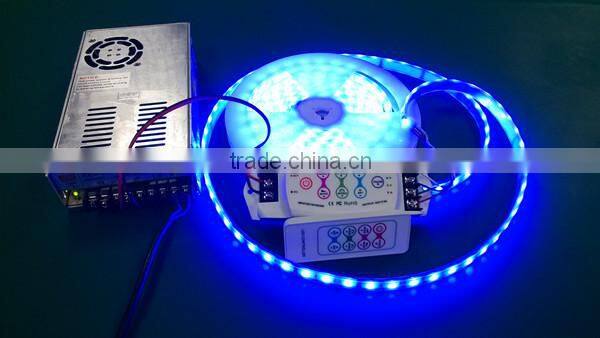

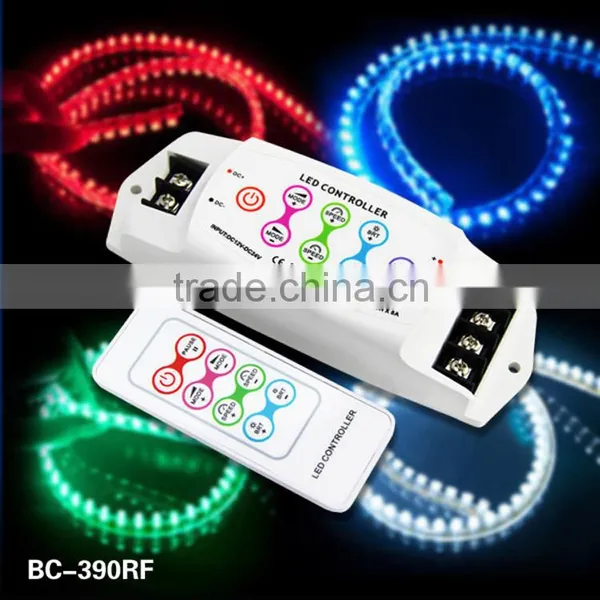

Product show :
Application :

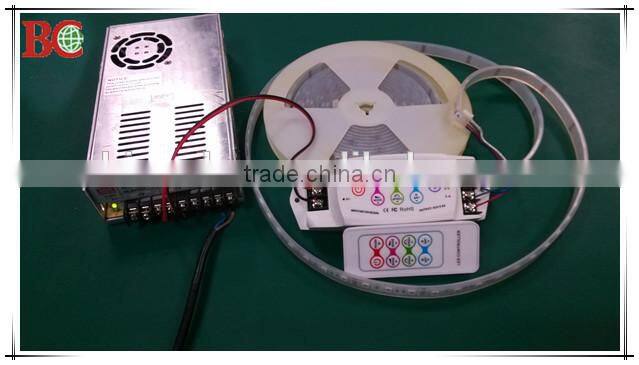

Simply connect this unit input port to DC power supply and the output port connect to your lights. within
minutes. You’ll be controlling your lightings via our rgb controller.
