Introduction:

BC-343 3 channels rgb led dali dimming driver  which input standard DALI signal and  adopted the most

advanced DALI standard IEC62386. It can meet with any equipment in line with the DALI protocol on a bus

control, and realize the LED lighting products and traditional lighting integrate within the same set of lighting

system. We also add short circuit protection, over-current protection, makes the LED lamps more stable, and

toavoid the damage of the LED lamps.

Feature :

1.Automatically adapts input voltage DC12V-24V.

2. can meet with any equipment in line with the DALI protocol on a bus control.

3. 4096 grey levels, lamplight soft and stable, without flickers.

4.With the DALI signal input optical isolation protection.

5.Over current protection and short circuit protection.

Specification:

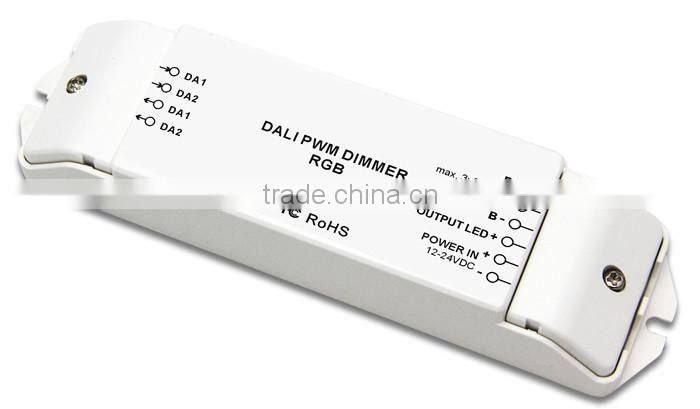

Product show :

Wiring diagram:

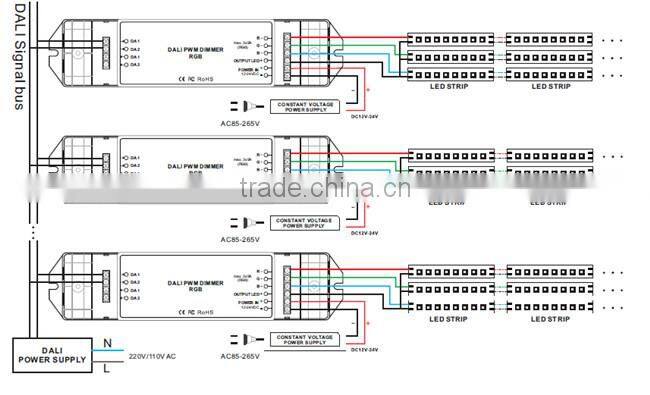

1.Active DALI bus signal input wiring diagram a: no need to distinguish DALI bus is  anode or cathode)

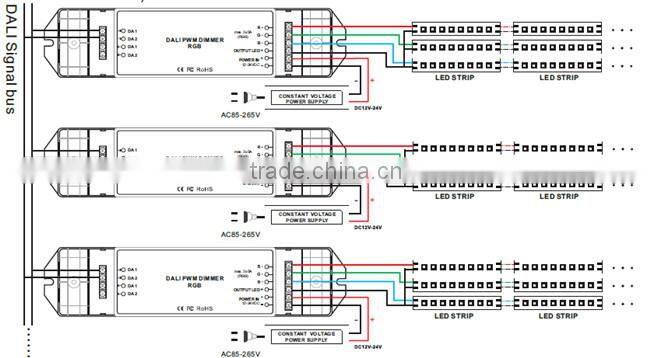

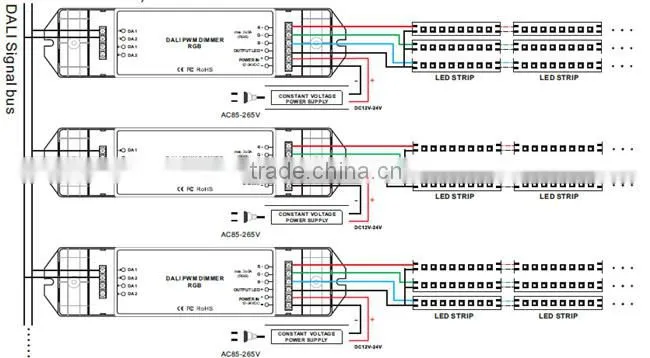

Diagram b:

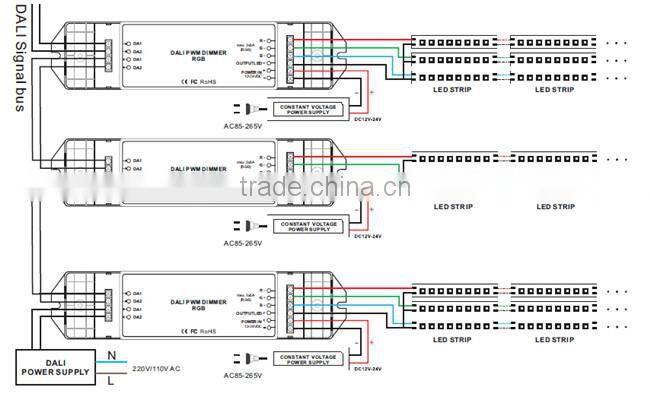

2.Pasive DALI bus signal input wiring diagram a: no need to distinguish DALI bus is anode or cathode)

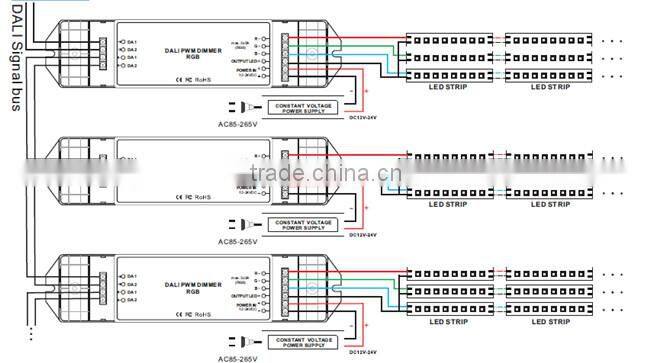

Diagram b:
