Home > Products > Force Gauge/Test Stand > Analog Force Gauge Push and Pull Meter 100N/10KG NK-100

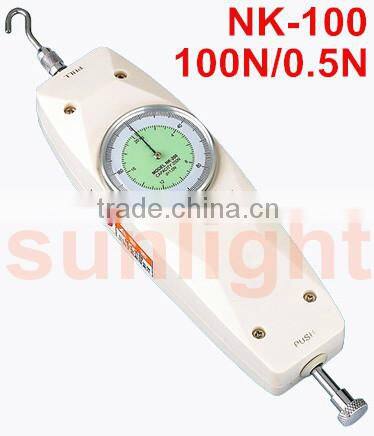

Analog Force Gauge Push and Pull Meter 100N/10KG NK-100
- 3000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card PayPal
You May Like
-
Analog Force Meter Push and Pull Force Gauge 200N/20KG NK-200
-
Analog Push and Pull Force Gauge Force Meter 300N/30KG NK-300
-
Analog Push and Pull Force Gauge Force Tester 500N/50KG NK-500
-
Analog Force Gauge Push and Pull Force Meter 10N/2.2LB NLB-10
-
Analog Force Gauge Push and Pull Force Meter 20N/4.4LB NLB-20
-
Analog Force Gauge Push and Pull Force Meter 30N/6.6LB NLB-30
Product Details
| Place of Origin | Shanghai, China | Brand Name | Sunlight | |
| Model Number | NK-100 |
Product Description
Application:
The NK, NLB, ALB series are analog force gauge with compact size and high accuracy. They are easy to operate and handy to carry out. Widely applied in rubber plastic, light industry, textile, building windows and doors, compound materials, electric wire and cable, auto part, power generator, scientific research institute to do the push pull force insertion force and destructive experiment.
Features:
With easy operate and can be installed with all kinds of test stand and clamp.
Peak holding function and continuous.
One year free maintenance.
Compact and artistic packing, easy to transit andstock.
Two kind of unit dual show at the same time,don't need unit conversion.
NK Series: Newton and Kilogram dual unit;
NLB Series: Newton and Pound dual unit;
ALB: Pound and Kilogram dual unit.
Needle indicates, easy to read, high accuracy
Specifications:
NK Series:
Model | NK-10 | NK-20 | NK-30 | NK-50 | NK-100 | NK-200 | NK-300 | NK-500 |
Max load | 10N 1kg | 20N 2kg | 30N 3kg | 50N 5kg | 100N 10kg | 200N 20kg | 300N 30kg | 500N 50kg |
Min load | 1N 0.1kg | 2N 0.2kg | 3N 0.3kg | 5N 0.5kg | 10N 1kg | 20N 2kg | 30N 3kg | 50N 5kg |
Load graduation value | 0.05N 10g | 0.1N 20g | 0.2N 20g | 0.25N 50g | 0.5N 100g | 1.0N 200g | 2.0N 200g | 2.5N 500g |
Rod journey | 10mm | |||||||
Work temperature | 20°C+/-10°C | |||||||
Carry temperature | -27°C~+70°C | |||||||
Relative humidity | 15%~80%RH | |||||||
Work entironment | No vibrancy and no cautery | |||||||
