Home > Products > Force Gauge/Test Stand > Analog Force Tester Push and Pull Force Meter 100N/22LB NLB-100

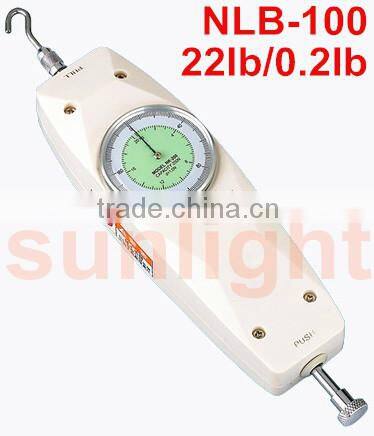

Analog Force Tester Push and Pull Force Meter 100N/22LB NLB-100
- 3000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card PayPal
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Sunlight | Model Number: | NLB-100 |
Product Description
Applications:
The NK, NLB, ALB series are analog force gauge with compact size and high accuracy. They are easy to operate and handy to carry out. Widely applied in rubber plastic, light industry, textile, building windows and doors, compound materials, electric wire and cable, auto part, power generator, scientific research institute to do the push pull force insertion force and destructive experiment.
Feature:
With easy operate and can be installed with all kinds of test stand and clamp.
Peak holding function and continuous.
One year free maintenance.
Compact and artistic packing, easy to transit andstock.
Two kind of unit dual show at the same time,don't need unit conversion.
NK Series: Newton and Kilogram dual unit;
NLB Series: Newton and Pound dual unit;
ALB: Pound and Kilogram dual unit.
Needle indicates, easy to read, high accuracy
Specifications:
Model | NLB-10 | NLB-20 | NLB-30 | NLB-50 | NLB- 100 | NLB- 200 | NLB- 300 | NLB-500 |
Max load | 10N 2.2Ib | 20N 4.4Ib | 30N 6.6Ib | 50N 11Ib | 100N 22Ib | 200N 44Ib | 300N 66Ib | 500N 110Ib |
Min load | 1N 0.2Ib | 2N 0.4Ib | 3N 0.6Ib | 5N 1Ib | 10N 2Ib | 20N 4Ib | 30N 6Ib | 50N 10Ib |
Load graduation value | 0.05N 0.02Ib | 0.1N 0.04Ib | 0.2N 0.04Ib | 0.25N 0.1Ib | 0.5N 0.2Ib | 1.0N 0.4Ib | 2.0N 0.4Ib | 2.5N 1.0Ib |
Rod journey | 10mm | |||||||
Work temperature | 20°+/-10°C | |||||||
Carry temperature | -27°C~+70°C | |||||||
Relative humidity | 15%~80%RH | |||||||
Work entironment | No vibrancy and no cautery |
