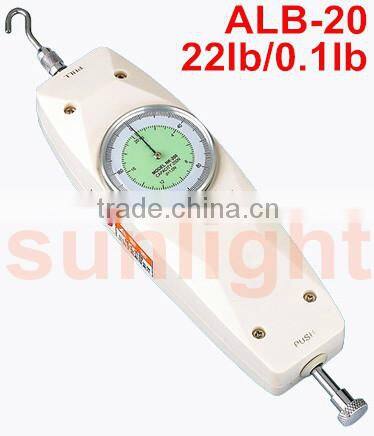

Help CenterAuxiometer Analog Push and Pull Force Gauge 22LB/10KG ALB-20
Related Products
-
Force Gauge Analog Push and Pull Force Meter 45LB/20KG ALB-40NegotiableMOQ: 1 Piece -
Force Meter Analog Push and Pull Force Gauge 110LB/50KG ALB-100NegotiableMOQ: 1 Piece
-
Digital Force Gauge Push and Pull Force Meter N/KG/LB RS232 Built-in Sensor HF-2NegotiableMOQ: 1 Piece
-
Digital Force Gauge Push and Pull Force Tester N/KG/LB RS232 Built-in Sensor HF-5NegotiableMOQ: 1 Piece
-
Digital Force Meter Push and Pull Force Gauge N/KG/LB RS232 Built-in Sensor HF-10NegotiableMOQ: 1 Piece
Application:
The NK, NLB, ALB series are analog force gauge with compact size and high accuracy. They are easy to operate and handy to carry out. Widely applied in rubber plastic, light industry, textile, building windows and doors, compound materials, electric wire and cable, auto part, power generator, scientific research institute to do the push pull force insertion force and destructive experiment.
Features:
With easy operate and can be installed with all kinds of test stand and clamp.
Peak holding function and continuous.
One year free maintenance.
Compact and artistic packing, easy to transit andstock.
Two kind of unit dual show at the same time,don't need unit conversion.
NK Series: Newton and Kilogram dual unit;
NLB Series: Newton and Pound dual unit;
ALB: Pound and Kilogram dual unit.
Needle indicates, easy to read, high accuracy
Specifications:
ALB Series:
Model |
ALB-2 |
ALB-4 |
ALB-10 |
ALB-20 |
ALB-40 |
ALB-100 |
Max load |
2.2Ib 1kg |
4.5Ib 2kg |
11Ib 5kg |
22Ib 10kg |
45Ib 20kg |
110Ib 50kg |
Min load |
0.2Ib 0.1kg |
0.45Ib 0.2kg |
1Ib 0.5kg |
2.2Ib 1.1kg |
4.5Ib 2.2kg |
11Ib 5.5kg |
Load graduation value |
0.01Ib 0.01kg |
0.02Ib 0.02kg |
0.05Ib 0.05kg |
0.1Ib 0.1kg |
0.2Ib 0.2kg |
0.5Ib 0.5kg |
Rod journey |
10mm |
|||||
Work temperature |
20°+/-10°C |
|||||
Carry temperature |
-27°C~+70°C |
|||||
Relative humidity |
15%~80%RH |
|||||
Work entironment |
No vibrancy and no cautery |
|||||
