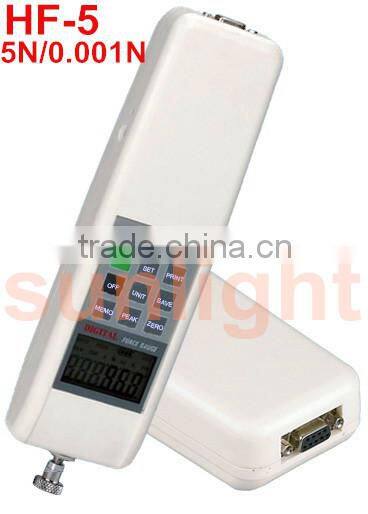

Digital Force Gauge Push and Pull Force Tester N/KG/LB RS232 Built-in Sensor HF-5
- 3000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card PayPal
You May Like
-
Digital Force Meter Push and Pull Force Gauge N/KG/LB RS232 Built-in Sensor HF-10
-
Digital Forcemeter Push and Pull Force Tester N/KG/LB RS232 Built-in Sensor HF-20
-
Digital Force Tester Push and Pull Force Gauge N/KG/LB RS232 Built-in Sensor HF-50
-
Digital Force Gauge Push and Pull Force Meter N/KG/LB RS232 Built-in Sensor HF-100
-
Digital Force Gauge Push and Pull Force Meter N/KG/LB RS232 Built-in Sensor HF-200
-
Digital Forcemeter Push and Pull Force Gauge N/KG/LB RS232 Built-in Sensor HF-500
Product Details
| Place of Origin | Shanghai, China | Brand Name | Sunlight | |
| Model Number | HF-5 |
Product Description
Application:
The HF series are digital force gauge with compact size, high accuracy, They are easy to operate and handy to carry out.
Widely applied in electron, high & low voltage electrical appliance, hardware, automobile parts, lighter and ignition system, light industry, mechanical, textile, and so on industries for testing of pull or push load test, insertion force or pull and destructive experiment.
Features:
High precision and high resolution.
Five testing modes and three display methods for selection N (Newton), kg (Kilogram) and Ib (Pound) three measuring units for selection and conversion.
6 digits large screen display.
Setting function of gravity acceleration
Max. and min. and comparison value can be setted for statistic analysis. Data storage function. 896 testing values can be stored. Data output function. The data can be input into computer through data line for various analyses.
LCD overturn display
Automatic PEAK function A
utomatic storage test value function
Negative phototropism function
Printer function:this function can print the stored data through computer by USB.
Synchronous test function
Measuring correction
Solve overload instruction
Specifications:
Model | HF-2 | HF-5 | HF-10 | HF-20 | HF-50 | HF-100 | HF-200 | HF-500 | HF-1000 | |
Peak load value | N | 2 | 5 | 10 | 20 | 50 | 100 | 200 | 500 | 1000 |
| kg | 2 | 0.5 | 1 | 2 | 5 | 10 | 20 | 50 | 100 |
| lbs | 0.44 | 1.1 | 2.2 | 4.4 | 11 | 22 | 44 | 110 | 220 |
load division value | N | 0.001 | 0.001 | 0.01 | 0.01 | 0.01 | 0.1 | 0.1 | 0.1 | 1 |
| kg | 0.0001 | 0.0001 | 0.001 | 0.001 | 0.001 | 0.01 | 0.01 | 0.01 | 0.1 |
| lbs | 0.0001 | 0.0001 | 0.001 | 0.001 | 0.001 | 0.01 | 0.01 | 0.01 | 0.1 |
Indication error | 0.50% | |||||||||
Unit | N / kg / lb | |||||||||
Data interface | Rs232 nine-hole socket | |||||||||
Power | rechargeable batteries, charger(charging voltage 100V-240V) | |||||||||
Sensor structure | S-tye sensor with high precision (built-in sensor) | |||||||||
Ambient temperature | 5° C~35° C | |||||||||
Transport temperature | -10° C~60° C | |||||||||
Relative humidity | 15%~80%RH | |||||||||
Working conditions | No hypocenter and corrosive medium | |||||||||
Gross weight | ~2000g | |||||||||
Size | 273*182*70 mm | |||||||||
