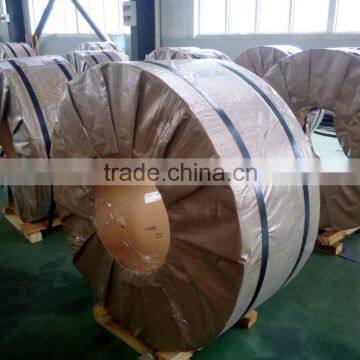

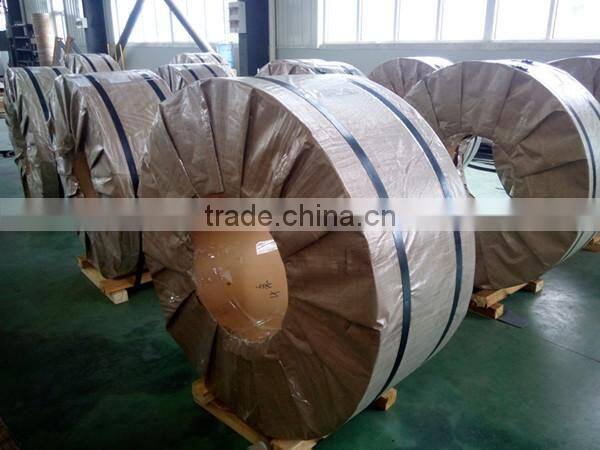

Silicon Steel After Slitting
- XINGANG PORT
- T/T
You May Like
Product Details
| Type | Oriented Silicon Steel | Technique | Cold Rolled | |
| Thickness | 0.23, 0.30 | Surface Treatment | Coated | |
| Shape | Steel Coil | Standard | GB, JIS | |
| Place of Origin | Hebei, China |
Product Description
Specifications
Standard: AISI,ASTM,BS,DIN,GB,JIS Place of Origin: China(Mainland)Oriented Electrical Steel After Slitting
Slitting size: as per customer requirement
Available Thickness: 0.23,0.27,0.30mm
Width: 800-1000mm Type: Steel Coil
Length: can be calculate Weight: 2-5 ton
Technique: Cold rolled Inside Diameter: 508mm
Packaging Detail: sea-worthy packing or as requirement of customer
Delivery Detail: Within 20-60 days after received of L/C or prepayment
Application: Large midium and small transformer,Large motors,Reactor and magnetic amplifier
Our advantage
Feature 1 | Stable product quality |
Feature 2 | Excellent magnetic properties in rolling direction |
Feature 3 | Fine surface coating property |
Feature 4 | Outstanding processability |
Feature 5 | Perfect dimensional accuracy |
Feature 6 | Diversified width option |
Feature7 | stable performances, competitve prices and quick delivery |
Feature8 | Low tolerance, high lamination Factor, and well antistatic coating |
Feature9 | Easily punched and cut, high dimensional accuracy |
Feature10 | Smooth and flat surface, low core lss and permagnetic inducton |
Grade
Type |
Available Thickness /mm |
Grade | Density / | Max.Core loss / |
Min.Magnetic induction /T | Min.Lamination factor /% |
Common type |
0.27 | 27SQ120 | 7.65 | 1.20 | 1.82 | 95.0 |
27SQ130 | 7.65 | 1.30 | 1.81 | 95.0 | ||
27SQ140 | 7.65 | 1.40 | 1.80 | 95.0 | ||
0.30 | 30SQ120 | 7.65 | 1.20 | 1.82 | 96.0 | |
30SQ130 | 7.65 | 1.30 | 1.81 | 96.0 | ||
30SQ140 | 7.65 | 1.40 | 1.80 | 96.0 | ||
High magnetic induction type
|
0.27 | 27SQG095 | 7.65 | 0.95 | 1.89 | 95.0 |
27SQG100 | 7.65 | 1.00 | 1.89 | 95.0 | ||
27SQG110 | 7.65 | 1.10 | 1.89 | 95.0 | ||
27SQG120 | 7.65 | 1.20 | 1.89 | 95.0 | ||
0.30 | 30SQG100 | 7.65 | 1.00 | 1.89 | 96.0 | |
30SQG105 | 7.65 | 1.05 | 1.89 | 96.0 | ||
30SQG110 | 7.65 | 1.10 | 1.89 | 96.0 | ||
30SQG120 | 7.65 | 1.20 | 1.89 | 96.0 | ||
Domain refined high magnetic Induction type |
0.27 | 27SQGD085 | 7.65 | 0.85 | 1.89 | 95.0 |
27SQGD090 | 7.65 | 0.90 | 1.89 | 95.0 | ||
27SQGD095 | 7.65 | 0.95 | 1.89 | 95.0 | ||
27SQGD100 | 7.65 | 0.99 | 1.89 | 95.0 | ||
0.30 | 30SQGD095 | 7.65 | 0.95 | 1.89 | 96.0 | |
30SQGD100 | 7.65 | 1.00 | 1.89 | 96.0 | ||
30SQGD105 | 7.65 | 1.05 | 1.89 | 96.0 | ||
30SQGD120 | 7.65 | 1.20 | 1.89 | 96.0 |
