Home > Auto, Motorcycle Parts & Accessories > Vehicle Repair Equipment & Tools > Auto Painting Equipment > CE High Quality Low Price Spray Booth GS-200
CE High Quality Low Price Spray Booth GS-200
US$ 7,600 - 9,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Power:
13.5KW
External Size:
7M*5.3M*3.5M
Internal Size:
6.9M*3.9M*2.7M
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiuzhou Port Zhuhai City China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE High Quality Low Price Spray Booth GS-300BUS$ 8,500 - 9,800MOQ: 1 Set -
CE High Quality Low Price Paint Booth GS-300AUS$ 15,000 - 18,000MOQ: 1 Set
-
CE High Quality Low Price Spray Booth GS-400US$ 9,000 - 13,000MOQ: 1 Set
-
CE High Quality Low Price Spray Booth GS-500US$ 15,000 - 18,000MOQ: 1 Set
-
CE High Quality Low Price Spray Booth GS-870US$ 9,000 - 15,000MOQ: 1 Set
Power
13.5KW
External Size
7M*5.3M*3.5M
Internal Size
6.9M*3.9M*2.7M
Voltage
Do as customer required
Certification
CE
Disc Dia.
6.9--3.9--2.7
No Load Speed
970/M
Place of Origin
Guangdong, China
Brand Name
G&P
Model Number
GS-200
Introduction:
High quality and low price G&P spray booth/ paint booth/ spray room/ paint room/ baking booth/ baking room/ spray cabin.
CE.

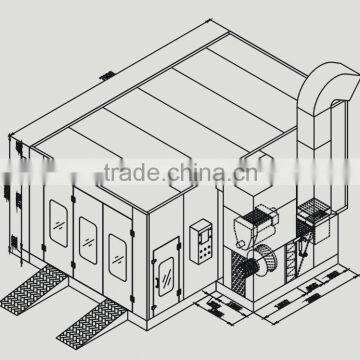

| GS-200 SPRAY BOOTH | ||

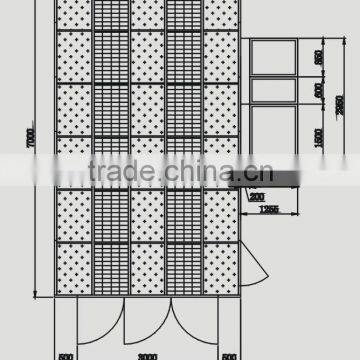

| Room body | Dimension | Inside Dimension:L7000×W(4000+1255)×H3505(MM) Outside Dimension:L6900×W3900×H2700(MM) |
| Wall panel | Total thickness of EPS insulation (Expanded Polystyrene) and powder-painted steel plate wall is 50MM. Powder-painted steel plate is 0.376MM thick. | |
| Basement and floor | Steel assemble, 2 rows of grilles with standing weight and 3 rows of diamond plate | |
| Driving ramp | 2PCS diamond plate | |
| Personal door | 1-fold with sight window, pressure lock, size: 800×2000(W×H) | |
| Main door | 3-fold with sight windows, door without aluminum frame, size:3000×2700 (W×H) | |
| Heating system | Frame | Sheet metal forming with powder spray process,inside galvanized board and fire-resistance material,outside white color plate |
| Intake fan | 1SET 7.5KW professional turbo fan, air capacity:23000m³/h, Air speed:0.2~0.3M/S | |
| Exhaust fan | 1SET 4KW centrifugal fan, air capacity:12500M³/H, Air speed:0.2~0.3M/S | |
| Exhaust pipe | 4M straight pipe; 1PC 90° elbow;1PC 45° intake elbow; European flange | |
| Smoke venting pipe | 4M straight pipe; 2PCS small elbow | |
| Air damper | Cylinder and connecting rod driving system to transfer spray to baking paint freely | |
| Burner | RIELLO/G20, Max Heating Productivity: 200000KCAL/H | |
| Heat exchanger | Heat-resistant stainless steel heat exchanger, Maximum working temperature: 60~80℃ | |
| Filter system | Ceiling filter | 4SETS filter; holding net installation model; Holder is made by section aluminum and with surface powder spray treatment. air filter efficiency:≥95% |
| Floor filter | 2SETS, installed horizontally | |
| Prefilter | 1SET, M type filter structure | |
| Lighting system | Ceiling light | 10UNITS×4PCS×40W=40PCS×40W, room illumination≥1000LUX |
| Side light | 8UNITS×2PCS×20W =16PCS×20W, installed horizontally | |
| Control system | Electric cabinet | main components imported are good quality; with overheat, overload, phase-absence protecting; motor starts directly |
| Stop automatically | with timer to control heating time;System stops automatically | |
| Constant temperature spraying | With constant temperature spraying paint function | |
| Main power | 13.5KW, 3PH, 380V, 50Hz | |
